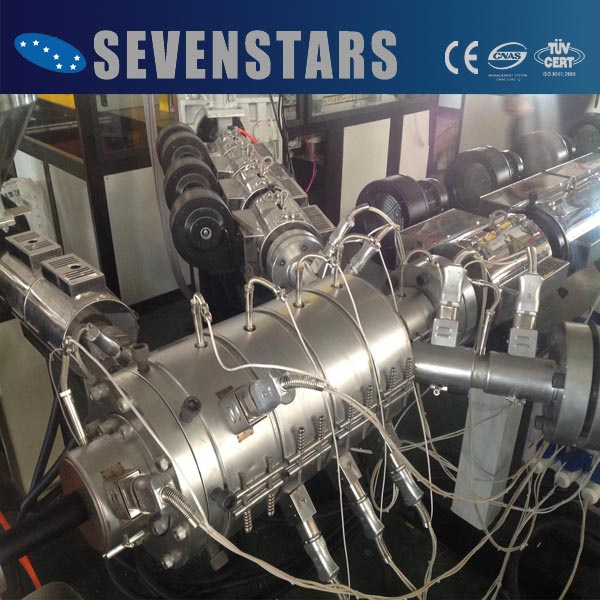

PPR pipe extruding line/PPR pipe extruder line/PPR pipe extrusion line/PPR pipe extruding machine line
Process flow for PPR pipe extruding line
1. Raw material + additive mixing,
2. Vacuum feeding machine
3. Hopper dryer
4. Single screw extruder
5. Color code extruder
6. Mould
7. Calibrator vacuum forming machine
8. Cooling tank haul off machine
9. Cutting machine
10. Discharging bracket
Model number
|
PPR-16/63
|
PPR-20/110
|
PPR-50/160
|
PPR-75/250
|
PPR-110/315
|
PPR-200/450
|
PPR-315/630
|
PPR-400/800
|
Pipe diameter
|
16-63mm
|
20-110mm
|
50-160mm
|
75-250mm
|
110-315mm
|
200-450mm
|
315-630mm
|
400-800mm
|
Max output
|
150kg/h
|
200kg/h
|
350kg/h
|
350kg/h
|
350kg/h
|
450kg/h
|
850kg/h
|
850kg/h
|
Production rate
|
1-15m/min
|
1.2-12m/min
|
0.6-8m/min
|
0.5-4m/min
|
0.4-3.7m/min
|
0.3-3m/min
|
0.2-2m/min
|
0.1-1 m/min
|
Extruder model
|
SJ-65/30
|
SJ-65/33
|
SJ-75/33
|
SJ-75/33
|
SJ-75/33
|
SJ-90/33
|
SJ-120/33
|
SJ-120/33
|
Installed power
|
85kw
|
110kw
|
125kw
|
180kw
|
260kw
|
325kw
|
480kw
|
600kw
|
Center height
|
1000mm
|
1000mm
|
1000mm
|
1000mm
|
1100mm
|
1100mm
|
1200mm
|
1300
|
Installation area
|
35x3.0x2.0m
|
38*3.1*2.2m
|
38*3.1*2.2m
|
40*3.2*2.4m
|
42*3.2*2.4m
|
52*3.3*2.6 m
|
60*3.5*2.8m
|
68*3.6*3.0m
|
Zhangjiagang Sevenstars Machinery Co., Ltd. is a professional plastic machinery suppliers located in Zhangjiagang city, China. A beautiful and famouse city for all kinds of plastic machine.
We specialize in the development, design, manufacture and marketing of various plastic machines. Such as
PE pipe extrusion line,
UPVC window door profile extrusion line,
WPC profile extrusion line,
UPVC ceiling wall panel extrusion line,
WPC foam board production line,
PP plastic film crushing washing line,
PET bottle crushing washing line,
PE pelletizing granulating line,
Single shaft shredder,
Double shaft shredder,
Plastic crusher and so on...
As one of the reliable supplier in China, We have keeping improved our management & technology level. Up to now, we has earned good reputation in domestic and abroad market. And our products have been exported to many countrys, like Mexico, America, Argentina, Chile, Brazil, Iran, Saudi Arabia. Thailand, Malyasia, Indonisa, Russia, India and so on.
'Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buid up a professional after-sale services team with rich-experienced in machine commissioning and installation. Each year we will attend China plastic exhibtion, and we have got the CE certificate for our machine
We believe our quality and service will bring success to each customer.
Welcome final users and distributors from all the world contact with us and create success
With your support and our effort, we deeply believe that the tomorrow of sevenstar machinery will be much better.
