1. Full automatic bottle blow molding machine
2. Plastic Processed: PET
3. Application: Bottle
4. Blow Molding Type: Stretch Blow Molding
We can't choose the best, but the best can choose us!
We are your best choice for bottle blow molding machine!
Characteristics & Technical Parameter:

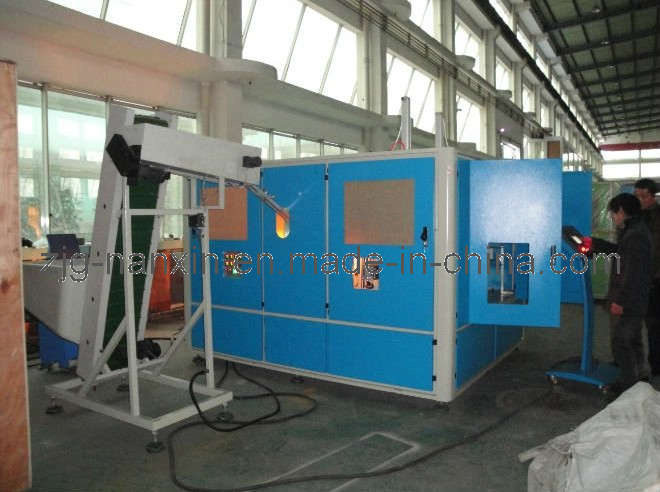

CM-A1 Full automatic blow molding machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle and cosmetics bottle.
|
Main part: |
|
Pneumatic part |
Valve |
SMC/CKD |
|
Cylinder |
|
Electric part |
PLC |
LG |
|
Operating system |
LG |
|
Relay |
OMRON |
|
Note |
All of the electrical components adopts CE?UL?CCC approved international advanced high-tech product. |
|
Main parameter: |
|
Model |
CM-A1 |
|
Productivity |
Depend on bottle design |
800-1200 pcs/h |
|
Product type |
Body diameter |
0.1-5L |
|
volume |
=100mm |
|
Neck diameter |
18-38mm |
|
Mould |
Mold thickness |
240*240*340mm |
|
Main machine power |
Electrical source power |
380V/220V 50/60Hz |
|
Power |
20KW |
|
Really use power |
4KW |
|
Air source |
HP air compressor |
2.0 m3/min 30KG |
|
Precision air filters |
2.0 m3/min 30KG |
|
Machine size and weight |
Main machine dimension(L) |
1600*1400*1800mm |
|
Pre-form Unscrambler(L) |
2000*950*2480mm |
|
Main machine weight |
1500Kg |
|
Pre-form Unscrambler |
250Kg |
|
Cooling |
3 HP Water Chiller (Water chiller is used to cool the machine and blow mould) |
