Usage:
To produce Nylon monofilament for fish net, sewing thread, textile etc. Both the production of multi-thread and single-thread can produce, we can produce the machines under our customers' request.

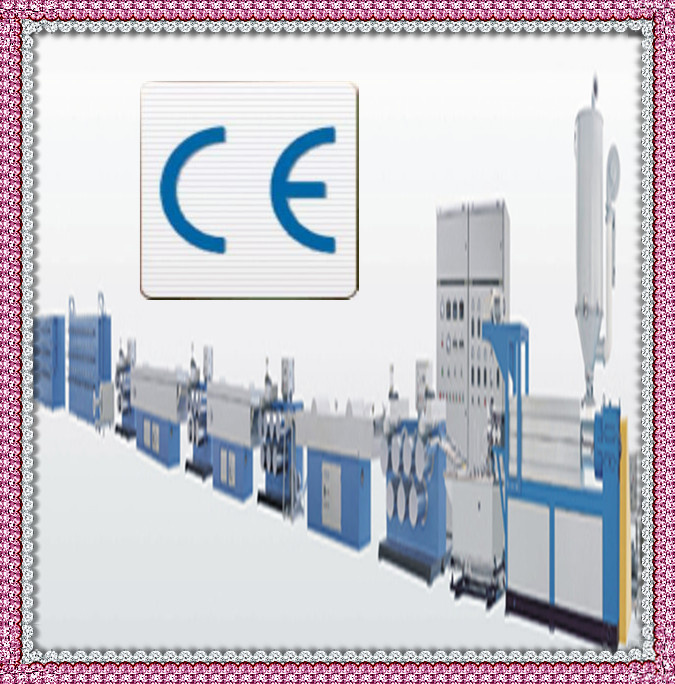

Nylon Monofilament Extrusion Machine List:
1) Main Motor 1set 65screw
2) Six-way electric control box 1 set
3) water cooling box 1 set
4) 5 rollers stretch 4 sets,
5) Hot water tank 1 set
6) Set Shape Oven Device 2 sets
7) winding machine 100 spindles
8) waste yarn winding machine 1 set
9) Measure pump mold 1 set
10) Oil Tank 1 set
|
Item |
SYLPET
Bylon Polyester monofilament manufacturing machine |
|
Type |
SYL- 65*100 |
|
Extruder |
1)Raw material PA6, PA66 Polyester |
|
2)Dia. of monofilament: Φ 0.1-Φ 0.35mm |
|
Screw diameter |
Φ 65mm |
|
Ratio of L/D |
30: 1 |
|
Material of screw and cylinder |
38CrMoALA |
|
Revolution of screw |
1500-3000 rpm |
|
Spinning die |
1set |
|
Number of holes |
100 pcs (95 holes, 5 for spare) |
|
Stretching unit |
four stretching unit |
|
Shaping unit |
Double shaping unit |
|
Winder |
100 Spindle |
|
Winding size and type |
Φ 120× 180 I shaped |
|
system capacity(about) |
100kw |
|
Overall dimensions(L× W× H) |
35000× 2000× 2100(mm) |
|
Production Capacity |
20-40kg/h |
|
Weight(about) |
20T |
Wenzhou Zhuding Machine Co., Ltd. (Wan Qun Industrial Company Limited) is an enterprise which was recognized by the state, gathering scientific research, manufacturing, sales, import and export business as a whole.
The company was founded in 1995, All employees through the unremitting efforts of 17 years, now has developed to the factory covers an area of 25, 00 square meters, 80 workers.
Our company specializes in manufacturing Non woven fabric production line, non woven bag making machine, rice bag cutting and sewing machine, laminating machines, flexographic printing machine, film blowing machine, shopping bag making machines etc plastic machinery equipment. Products have sold throughout the country, as well as Turkey, Mexico, Brazil, Zimbabwe, Russia, Vietnam, Indonesia and other overseas countries and regions.
We will, as always, adhere to the "Credit creates benifits, quality produces life" purposes. Company president Mr Zhu QingRong and G. Manager Mr Ye Michael with all the staff sincerely hope to have a pleasure cooperation with customers both at home and abroad in the future.
