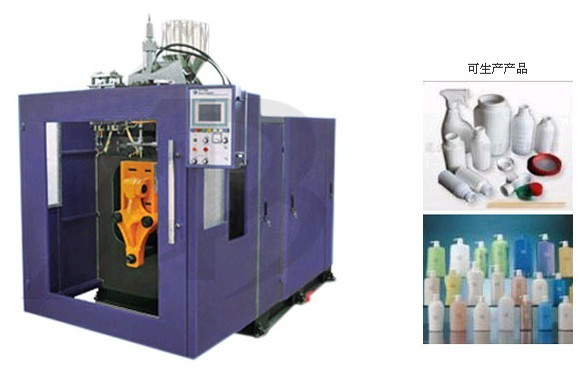

Oil Bottle Automatic Blow Molding Machine (ABLB55)

Oil Bottle Automatic Blow Molding Machine (ABLB55)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T
ABLB55 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 3.5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
Max. Product volume 3.5L
Out put capacity 400~600pcs/h
Screw diameter 45mm
Screw L/D ratio 24:1  L/D
Screw drive power 10KW
Screw heating capacity 2.6KW
No.of heating zone 3 zones
Output of HDPE 35KG/H
Oil pump drive power 4.8KW
Clamping force 32KN
Max.size of mold 80-350mm
Mold stroke 250X 320mm
Max.die diameter 80mm
Blowing pressure 0.6mpa
Air Volume 0.4M³/MIN
Cooling water pressure 0.3mpa
Water consumption 30L/MIN
Size of Machine 2.6x1.4x2.2m
Weight of machine 2.8 ton
Prod Model: ABLB55
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Bottle
Max. Product Volume: 3.5L
Blow Moulding Type: Extrusion Blow Moulding
Brand Name: Apollo
Automation: Automatic
Making Method Of Parison: Extrusion-Blow Molding
Raw Material: HDPE
Computerized: Computerized
Certification: CE
We Apollo Machinery, located in the high-speed developing port city-Zhangjiagang, which is nearby to the international big city-Shanghai, specializes in making various kinds of blowing molding machine for the solution for plastic industry. We have specialized in this field for over 10 years. Our company with over 100 staff was established in 1997, occupy 8000 square meters.

Through over 10 years of hard struggle, our company has developed from a small company to Medium and Large size company. We always place our customer's profit on the first place through high quality, responsible price and considerate after-sale sevices.

We can provide blow molding machines for various kinds of plastic products, including cosmetic packaging, medical packing, washing packing, foodstuff packing, lubricate packing, plastic toys, hollow tube, tool boxes, chemical barrel and more. Our machinery are suitable for plastic containers from 5ML to 200L. Our machinery are also suitable for various kinds of plastic processing such as: PP, PE, PVC, PA, ABS, PPE, POM, PPO, HDPE, PVDC, EVOH, PETG and so on. So we are confident that we can meet your various kinds of demands for plastic blow molding machines.

Our products have a great reputation in the blow molding machinery and our products are always warmly welcomed by our new and old customers. Not only our sales in our domestic land, our products are also exported to overseas, such as America area: Canada, Mexico, Argentina, Colombia, Europe area: UK, France, Germany. Russia, Middle East area: Saudi Arabia, Oman, Iran, Turkey and the other countries of Asia: Japan, Philippines, Myanmar, India and more.
