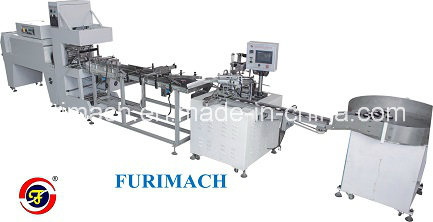

One Piece Packed PVC Tape Packaging Machine/ Electrical Tape Packaging Machine
Application
APL-300 is a fully automatic packing line from single piece PVC insulation tape packing to tube type multi-piece tape packing.
Feature
1. Machine adopts touch panel operation which is fast and easy.
2. With international advanced technique and production, machine performance is stable.
3. Machine is by PLC control.
4. Specially designed sealing cutter for solid packing.
5. Both separate paper label and printed film roll label can be used.
6. Only one set of mould is needed for different tapes.
7. Shrink tunnel uses imported double fan motors to make tunnel hot wind average and packing products beautiful.
Technical Parameters
Power source | AC380V 50Hz/60 Hz |
Max. film | L500 x W280 |
Feeding speed (m) | 40/min (adjustable) |
Tape O.D. (mm) | 65-80 |
Shrink packing temperature | 180ºC-250ºC |
Film thickness (mm) | 0.015-0.10 |
Efficiency (packages/min) | 0-5 |
Compressed air (Kg/ cm2) | 6 |
Packing film | PE/POF/BOPP |
Max. packing size (mm) | L300 x W100 x H100 |
Machine power | 12KW |
Machine dimension (mm) | L8000×W1600×H1900 |
Machine weight (Kg) | 800KG |
Kunshan Furi Precision Machinery Co., Ltd. is a specialist in the design and manufacture of slitting machines, rewinding machines, automatic roll cutting machines, BOPP (scotch) tape slitting machines, automatic packing machines, etc. Our company is applied with European advanced design drawings; We are capable of designing machines with practical performance for customers with economical prices also. Each machine is subject to rigorous quality inspection and performance tests before delivery to ensure the best possible performance. Our machines have CE certificates, and also get more than 10 national patent rights. Thanks to the continuous improvements of the company, the machines have come up to world standards.
Our company is armed with a high caliber team including professional R&D technicians, sales and after-sales service personnel, Q&C staff. Adhering to the mission of "people-oriented, technology- first, integrity-centered" and creating a famous brand, our enterprise will always provide customers with top quality products and perfect service.
We would like to renew old business relationships and establish new ones. And we sincerely welcome customers both at home and abroad. Let'S join hands to create a brilliant future.
