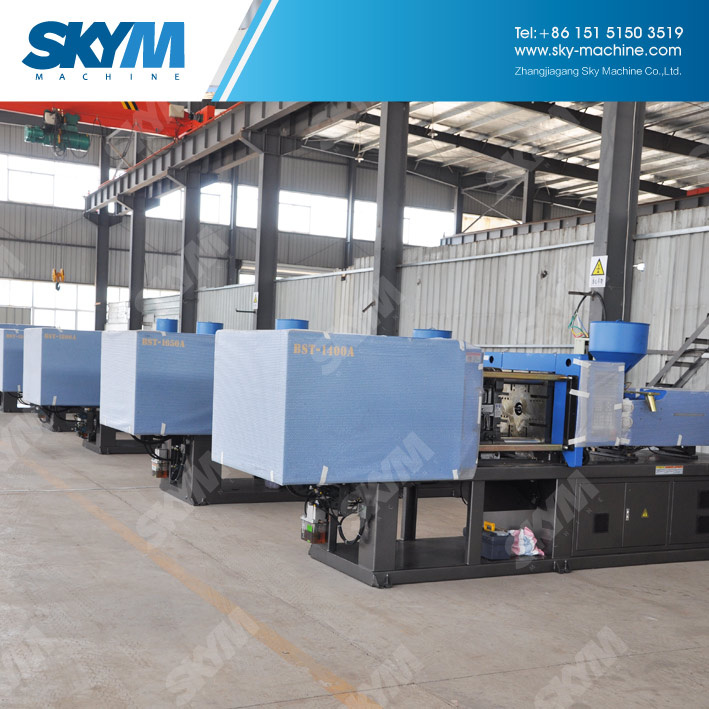

Pallet Injection Molding Machine
Price: |
US $ 48000-58000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Paypal,Western Union |
High Efficiency Energy Saving Injection Molding Machine adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family.The LCD displaying screen with high clarity has Chinese and English language to use.Close-loop PID temperature control with the advantage of high precision.The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators's safety.
Clamping Unit
5-point twin toggle clamping system by modular optimization software designing.Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).
Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.
Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.
High Efficiency Energy Saving Injection Molding Machine:
1) LCD computer control with big display screen
2) Hydraulic double proportional valve
3) Hard chrome plated high tensile strength steel tie bars
4) Generous space for fitting large moulds
5) Large opening stroke
6) Two position transducers to control Clamping and Injection
7) Four stages of injecting, independent velocity and pressure control
8) Hydraulic mould height adjustment device
9) Screw cold-start prevention device
10) Melt decompression control
11) Screw back pressure control
12) Multiple hydraulic ejection
13) Differential high speed clamping
14) Centralized lubrication system
15) Low pressure mould protection device
16) Mechanical safety interlock
17) Double electrical safety interlock
18) Oil return filter
19) Oil tank with inner stainless steel container
Technical Parameters
MODEL | BST-4800A |
INJECTION UNIT |
| A | B |
Screw diameter | Mm | 76 | 78 |
Shot size(theoretical) | Cm3 | 1766 | 1860 |
Shot weight | G | 1590 | 1670 |
Injection pressure | Mpa | 158 | 150 |
Injection rate | G/s | 398 | 420 |
Screw L/D radio | L/D | 20.7 | 20.2 |
Screw speed | R.P.M | 0-160 |
Nozzle Diameter | Smm | 20 |
CLAMPING |
|
|
Clamp tonnage | KN | 4800 |
Toggle stroke | Mm | 710 |
Mould Thickness | Mm | 280-750 |
Space between tie-bars | Mm | 750*720 |
Ejector stroke | Mm | 180 |
Ejector tonnage | KN | 125 |
Ejector number | Piece | 13 |
Hole Diameter | Mm | 200 |
OTHERS |
|
|
Heal power | KW | 23.4 |
Max.Pump pressure | MPa | 16 |
Pump motor power | KW | 40 |
Valve Size | Mm | Cartridge valve |
Machine dimension | M | 8.3*2.2*2.2 |
Machine weight | T | 16.3 |
Oil tank capacity | L | 600 |

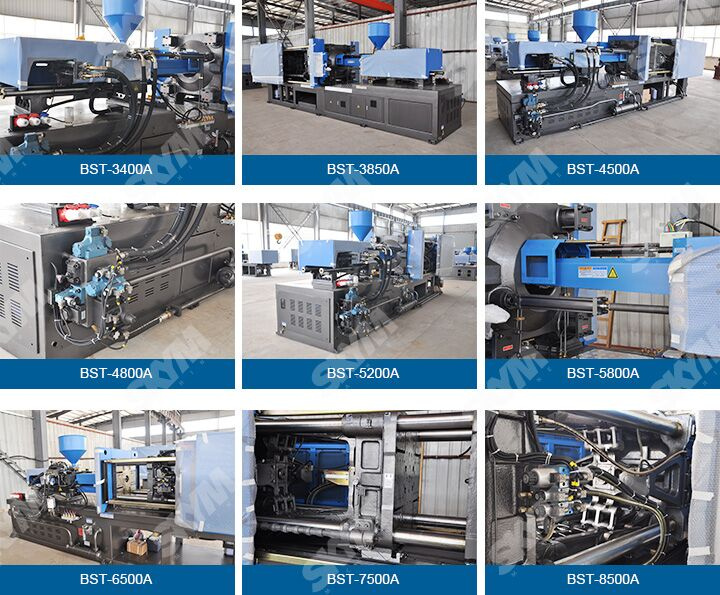

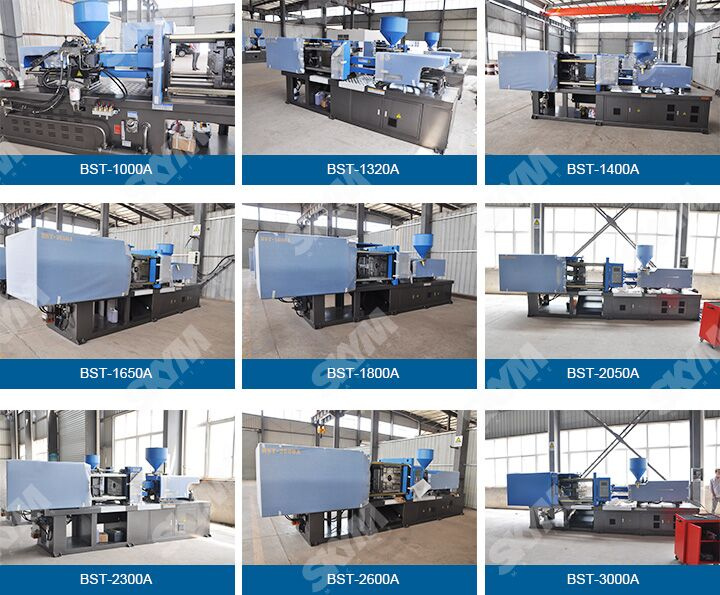

Technical ParametersModel | Clamp tonnage (KN) | Ejector tonnage (KN) | Heat power(KN) | Max.Pump pressure (MPA) | Pump motor power(kw) | Machine dinension(m) | Machine weight(t) | Oil tank capacity(L) |
BST-1000A | 1000 | 50 | 7.6 | 16 | 11 | 4.3*1.5*1.6 | 3.4 | 180 |
BST-1320A | 1320 | 50 | 8.2 | 16 | 13 | 4.5*1.6*1.7 | 3.9 | 200 |
BST-1400A | 1400 | 50 | 8.2 | 16 | 13 | 4.8*1.6*1.7 | 4.2 | 220 |
BST-1650A | 1650 | 70 | 8.2 | 16 | 15 | 5.0*1.6*1.7 | 5 | 250 |
BST-1800A | 1800 | 70 | 11 | 16 | 15 | 5.3*1.6*1.75 | 5.5 | 250 |
BST-2050A | 2050 | 70 | 11.6 | 16 | 17 | 5.4*1.6*1.75 | 6 | 270 |
BST-2300A | 2300 | 70 | 11.6 | 16 | 18.5 | 5.7*1.8*2.0 | 6.5 | 300 |
BST-2600A | 2600 | 70 | 15.5 | 16 | 25 | 6.1*1.7*1.8 | 8 | 350 |
BST-3000A | 3000 | 80 | 15.5 | 16 | 25 | 6.5*1.8*1.8 | 9 | 370 |
BST-3400A | 3400 | 80 | 17.5 | 16 | 30 | 6.7*2.0*1.9 | 10.8 | 400 |
BST-3850A | 3850 | 80 | 17.5 | 16 | 30 | 7.0*2.2*2.0 | 11.5 | 400 |
BST-4500A | 4500 | 85 | 20.5 | 16 | 37 | 7.3*2.3*2.4 | 13.8 | 450 |
BST-4800A | 4800 | 125 | 23.4 | 16 | 40 | 8.3*2.2*2.2 | 16.2 | 600 |
BST-5200A | 5200 | 125 | 28.1 | 16 | 43.5 | 8.6*2.2*2.25 | 20 | 750 |
BST-5800A | 5800 | 125 | 28.1 | 16 | 48.5 | 8.75*2.2*2.3 | 21.8 | 850 |
BST-6500A | 6500 | 6500 | 37.1 | 16 | 55 | 9.2*2.2*2.4 | 26 | 1000 |
BST-7500A | 7500 | 1800 | 40.9 | 16 | 67 | 10.7*2.3*2.7 | 38 | 1200 |
BST-8500A | 8500 | 180 | 42.5 | 16 | 74 | 11*2.4*2.75 | 45 | 1300 |
Our Service1.Installation, debugAfter equipment reached the workshop of customer, place the equipment according to plane layout we offered.We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.Time for installation and debug is 15-25 days.
2.Training
Our company offer technology training to customer.The content of training is structure and maintenance of equipment, control and operation of equipment.Training is in the workshop of customer.Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.Quality guarantee
We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.
4.After sales
1, After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price.In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.
2, After quality guarantee, we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price;After quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.
Welcome you to contact with me
Tel:0086-512-58905519 Fax:0086-512-58905519
Mobile phone:008615262319373
Website:www.Sky-machine.COM
Sky-machine.En.Made-in-China.Com
Prod Model: |
BST-4800A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Clamping Force: |
4800kn |
Type: |
Preform Injection |
Structure: |
Horizontal |
Plastic Type: |
Thermoplastic |
Automation: |
Automatic |
Computerized: |
Computerized |
