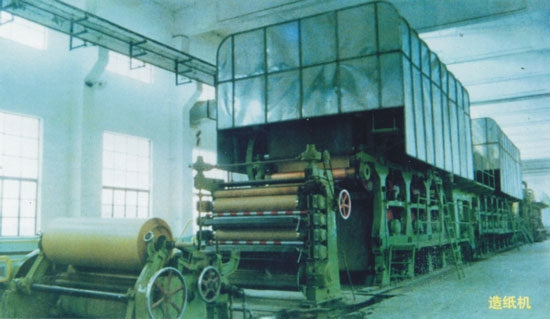

Paper Making Machine

Paper Making Machine
Price: US $ 250000/Set
Trade Terms: CFR
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
I. Technical parameter:
1. Raw material: Recycled paper;
2. Output paper style: Kraft paper;
3. Output paper weight: 110-240G/M2
4. Net paper width: 1200mm;
5. Capacity: 8T/D;
6. Width of cylinder mould: 1450 mm;
7. Rail gauge: 1800 mm;
8. Drive way: Alternating current, frequency conversion, speed control, section drive;

II. Structure and characteristic of main part
1. Cylinder section: Φ 1250mm× 1450mm stainless steel cylinder mould 2 sets, Φ 450mm× 1450mm couch roll 2 set, φ 400× 1450mm reverse roll 1set, coated by rubber, rubber shore hardness 38 ± 2.
2. Press section: Φ 450mm× 1450mm marble roll 1 set, Φ 400mm× 1450mm rubber roll 1 set, coated by rubber, rubber shore hardness 90 ± 2.
3. Dryer section: Φ 2000mm× 1450mm cast iron dryer can 2 set, Φ 400mm× 1450mm touch roll 1 set, coated by rubber, rubber shore hardness 90 ± 2.
4. Drive way: Alternating current, frequency conversion, speed control, section drive;
5. Pneumatic compression device.
NO.

ItemQty(set)

11092mm  Kraft  paper  machin 1
2exhaust  hood  of  dryer  can(double  layer)1
3Φ 700mm  axial-flow  ventilato1
415  type  roots  vacuum  pum1
51092mm  winding  machin1
61092mm  calendar1
71092mm  rewinding  machin1
85  m3high  consistency  hydrapulpe1
92  m2high  frequency  vibrating  scree1
108  m2cylinder  pulp  thickn1
110.6  m2pressure  scre1
12Φ 380mm  double  disc  pulp  refine2
13600  low  consistency  sand  remove1
14Φ 700mm  thrust4
154inch  pulp  pump4
166inch  pulp  pump4
172ton  boiler(burn  coa1

Packaging
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighted plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Shipments;
1 sea transportation is from qingdao seaports or other ports.
2 the delivery time is decided by your needed machines or machine parts. But it also follows your needs.



Perfect service :
1.we can supply technical consulting and feasibility report according to client's current condition ;
2. We can make detail design of workshop and whole factory ;
3.we supply complete installation and test machine ;
4.we train client's engineer and worker for free ;
5.we supply spare part with best price ;


Company Information
Zhengzhou Guangmao machinery manufacturing co.,Ltd has developed into a much more competitive company since establishment in 1982. Our complete paper production line sells well in international market, such as Russia,Indonesia,Uzbekistan,Tajikistan,Nigeria,Uganda,Pakistan,Egypt,Bhutan,Fiji,
Brazil,Paraguay,Syria,Libya etc. We also establish good strategic cooperation with local distributor. Mainlymanufactures all kinds of paper machines, toilet paper production line, Kraft paper production line, copy/writing paper production line. We have 4 paper machine producing workshops and more than 110 workers and more than 20 engineers. Our factory total area is 20,000 square meters. We sincerely welcome clients from all over the world visit our factory, any requirement, please contact via email, we will reply you as the first priority.We have passed CE, SGS, ISO quality system certification and all manufacture processes are conducted by the standard strictly.

FAQ
1.Why we choose your company, what could you do for me?
We have established for 10 years and have the stable production experience.
We use the best steel to guarantee the products' quality
Warranty:we make our machines one year warranty.
We will always give you heart to heart service
We always speak with facts and quality

2. How we visit your factory and what will be the procedure?
Our company located in Zhengzhou city,Henan province, if you take plane, it needs about 2 hours from Guangzhou city, 1.5hours from Shanghai city and 1 hour from Beijing.we will pick you up from airport as well as the train station. We will take you to see our machine running in our Chinese clients' paper mill. Welcome you and your team to visit us at any time!

3. Could your engineer teach and train our worker and stay in our factory for long time?
Yes, we have very large engineer installation team,they can train and teach your worker to operate paper machine,but you should pay them salary.

4. How much water, electricity should I prepare for producing 1 ton finished paper?
(1) Clean water: 5M3
(2) Electricity: 250kw/h

5. Which kind of chemical I should prepare:
(1) Deinking agent
(2) Dispersing agent
(3) Bleaching agent

6. How about your company orders?
(1)One set of paper machine line or part is supported by us
(2) If we have urgent needs, we'll do it for you
Markets: South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Model: 1092mm
Function: Full Automatic
Process: Paper Machine
Usage: Packing Paper Machine
Automatic Grade: Automatic
Computerized: Yes
Sheet Former Type: Cylinder Mould
Paper Thickness: Normal Specification Paper
Certification: ISO
Condition: New
Type: Paper Making and Processing Machinery
Zhengzhou guang mao machinery manufacturing Co., Ltd. is located in zhengzhou city, China. We are a leading and professional paper machine manufacturer in China.

We specialize in the manufacture of paper machines, paper processing machines and paper machine parts.

Our company has perfect service system. We have experienced engineer teams, who can supply perfect service during the whole deal, including technology consultation, civil work design, project evaluation; Installation and testing the whole production line; Training engineers and workers; Meanwhile, we also supply spare parts for long time and manufacture machines in accordance with customers' special requirements.

1. Following is main introduction of our company:

(1) total area of factory: 20, 000m2;

(2) total qty of workshop: 4;

(3) workers: 110 workers;

(4)engineer qty: 25 engineers;

2. Why you choose us?

(1) professional engineer team with 30years experience;

(2) we can supply you turn -key solution without any trouble;

(3) we have strict quality control system and ensure there is no unqualifiedly product;

(4) professional installation technician and clear technical training for your workers;

(5) strict recalling system: If any problem of machine, we will recall it and change a new one for free;

3. About shipment:

1. Sea transportation and rail way transportation is our main shipment way.

2 the delivery time is decided by your the machine model, we can also adjust delivery time according to your special requirement;

We hope to establish friendship and business relationship with friends from all over the world.
