Main characteristics
1,The paper delivering parts adopts the rotary system of the front running wheels.
2,The delivering rod and belts are drove by the servo motto to assure the accuracy of the size and paper reaches the front after cushion.
3,The die cutting parts adopts the improved crank toggle which drives the moving head up and down to do the die cutting. The frequency controlled main generator transfer the power onto the main axle through the speed reducer of the worm and worm wheel, and the main axle drives the crank toggle.
4,The controlling system uses the programming computer of Taiwan Fatek. All the appliance adopts the well-known brand as Yaskawa, Fatek,SMC,OMORON etc. And it is equipped by the big color screen indicating the hichs and solutions to achieve the human and machine interactions.
5,Furthermore, all the main parts and movements were analyzed by the tension test and imitated by the computer. The foundation and wall uses the advanced technology to ensure a strong base.
6,The main parrs was made in one time by the processing center. The die cutting parts use the materieral imported from Japan and Germany, the main alxe and appliances uses the famious brand such as Germany FAG,Japan NSK. The syncho transferring belts is imported from Germany
|

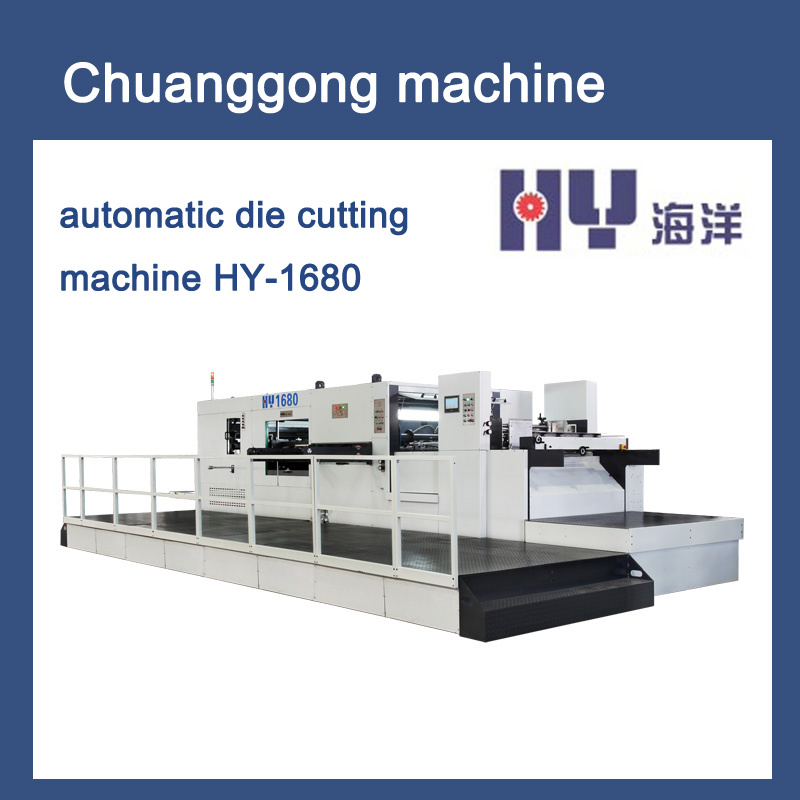

HY-1680 technical parameters: |
|
Max paper delivering size |
1680 * 1200mm |
|
Min paper delivering size |
650* 500mm |
|
Max paper die cutting size |
1660*1180mm |
|
Die cutting caliper: |
F\E\B\C Medium paper0.75-o.8mm,250-2000g/m 2 paper board(except the chip board) |
|
Die cutting accuracy |
± 0.5mm |
|
Highest speed |
4500(r/h) |
|
Max die cutting pressure) |
350t |
|
Total power |
45 (KW) |
|
total weight (t) |
32000kg |
|
Outside size(except the worker's platform) |
10100*4050*2450mm |
|
Controlling type |
PLC Programme control |
|
Speed adjustment system |
Non polar frequency |
|
Paper delivering type |
Rotary and front paper deliverying |
Dongguan Qianwang Paper Co., Ltd.has become a group company after nearly 10 years of development. And here is the headquarters. The start-up company belongs to paper processing trade enterprise. As company grow, it is involved in machinery and equipment industry and printing rubber roller. All machinery and rubber roller is independent research and development.
The company covers an area of 28000 square meters, self-built plant, divided into ABC three areas, the store ability is 26000 tons of paper. The company has 6 high-speed cutting machine, two cross-cutting machine working 24 hours.
Paper main varieties includes white board paper, double-sided white board paper, blister paper, white card paper, wood-free paper, and specialty paper in different kinds and class.
Machinery products consists automatic die cutting machine and full automatic high-speed roll cutting machine.
The rubber roller factory adopts advanced British technology, it is the original equipments supplier for the top five brand of offset printing machine, which can produce printing rubber rollers, high poly resin hard roll, automatic cleaning brush rollers, and various varieties of industrial rollers. And a professional expert team from British specialized in rubber rollers is responsible for the production of rubber rollers.
The company develops rapidly in 10 years with annual sales of nearly 1.5 billion RMB, the result is only in the domestic market. While the foreign market has just started. So we are sincerely looking for global elite interested in printing and packaging industry to cooperate with us. The company will provide distributors and guests strong support for our cooperation. Three kinds of products are relevant to you, you believe you can see, we are looking forward to your contact.
