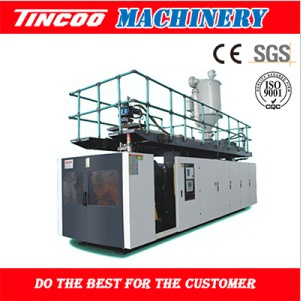

PC 5-Gallon Blowing Machine (DHB-82PC)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Bottle Extrusion Blow Molding MachineProduct name: PC 5 Gallons Extrusion Blow Molding MachineProduct No.: DHB-82PCProduct desc: Specially for 3 gallons and 5 gallons water barrel and lamp cover with PC Material. Max. Container capacity 25L, Screw diameter: 82mmDHB-82PC machine are composed by clamping structure, die head, extrusion system, hydraulic system, Frame, bottom blow device, electric system, parison controller and so on. and the take out products device can be chosen by customer.Specially for 3 gallon and 5 gallon water barrel and lamp cover with PC Material. Advanced processing equipment:Introducing advanced technology form Germany,Italy,Japan etc.Involving advanced design and production of super large-scale blow-molding machineand engineering management capability.Holding over 40 items Patent Technologies. Settingsa).Oil pump&oil valve:YUKEN(TAIWAN)b).Touch screen,PLC,temperature control module:SIEMENS(GERMAN)c).AC contactor,circuit breaker:SIEMENS(GERMAN)d).Electric relay,proximity switch:OMRON(JAPAN)e).Control switch:SCHNEIDER(China)f).Air operated valve:FESTO(GERMAN)g).Electric motor:SIEMENS(GERMAN)h).Frenquency transformer:SCHNEIDER,FUJI(JAPAN)i).Seal componets:JAPANj).Union joint:DK(KOREA)k).Pressure gage:GERMANl).Die head:38CrMoAlA 4.4L3.3KGm).Other electric parts are all world-famous brandSpecially for Producing 3 gallons and 5 gallons water barrel and lamp cover with PC Material.
Bottle Extrusion Blow Molding Machine
Specification |
| DHB-82PC |
| Material |
| PC |
| Max.container capacity | L | 25 |
| Number of die | set | 1 |
| Output | pcs/hr | 500 |
| Machine Dimension | m | 6.5×2.4×4.7 |
| Total weight | ton | 12 |
| Accumulator head |
| DHB-82PC |
| Number of die heating | zone | 4 |
| Power of die heating | KW | 8 |
| Max die-pin diameter | mm | 150 |
| Accumulator capacity | L | 1.8 |
| General dimension | m | 1.2×0.5×0.42 |
| Clamping Unit |
| DHB-82PC |
| Clamping force | KN | 220 |
| platen opening stroke | mm | 330-780 |
| platen size | mm | 740×630 |
| Max mould size | mm | 550×660 |
| Mould thickness | mm | 350-420 |
| Extruder Unit |
| DHB-82PC |
| Screw diameter | mm | 82 |
| Screw L/D ratio | L/D | 38:1 |
| Extruding Volume | Kg/hr | 150 |
| Number of heating zone | zone | 8 |
| Extruder heating power | KW | 20 |
| Extruder driving power | KW | 34 |
| Power |
| DHB-82PC |
| Oil pump drive power | KW | 45 |
| Fan power for screw | KW | 0.9 |
| Total power | KW | 90 |
| Air pressure | Mpa | 1.2 |
| Air consumption | m3/min | 1.0 |
| Average energy consumption | KW | 42 |
| Prod Model: |
DHB-82PC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Extrusion Blow Molding Machine |
| Making Method Of Parison: |
Extrusion-Blow Molding |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
CE |
| Raw Material: |
PE,PP... |
