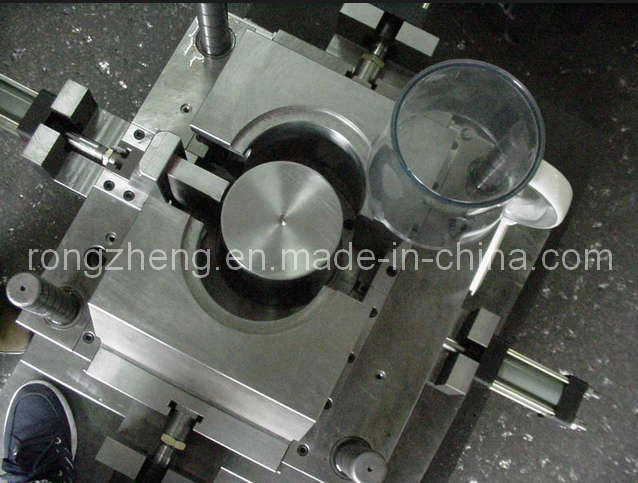

Plastic injection mold; PC parts mold; Plastic mold; Transparent/clear parts mold
1. Cavities: 1*1
2. Runner type: YUDO hot runner
3. Cavity&core material: 1.2083 HRC-56, slide*4: 1.2344 HRC-56
4. Mold base material: 1.1730 Hasco standard (Guide pin/bushing, slide lock, register, ejector guide pin/bushing, glass window, thermal baffle, safety buckle, date stamps series, KO extension)
5. Full autamatic demolding
6. Optimum water cooling system design
7. Part material: PC
8. Mold lead time: 30 days
Plastic and metal injection mold specializer, located in Songgang Town, Shenzhen City, RZM would like to be the solution server for your custom plastic and metal products.
Rong Zheng Mold Company has been in the mold industry since the year of 1995, and always provide high quality service and one to one solution for our customers.
Equipping with large CNC center, Sodick precision wire-cut machine, 2 heads EDM and CMM, and plastic injection machines from 60 ton to 850 ton, RZM makes plastic moulds standardizing in Hasco, DME, LKM and die casting mould in high quality. Big mold can be made up to 2000mm tolerancing in 0.005mm.
We sincerely want to supply you high quality products and perfect service based on our most efficient management and professional work teams. We thank you for your coming and look forward to your inquiry!
