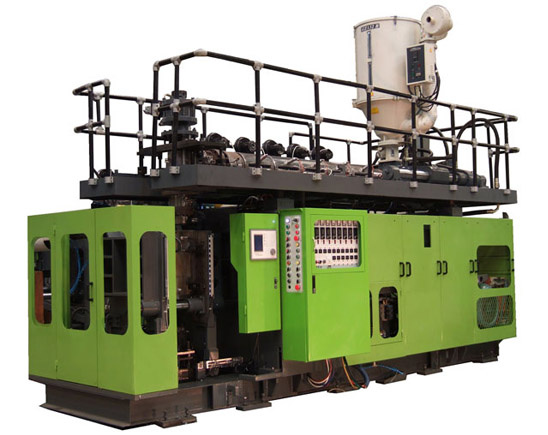

PC Bucket Blowing Mould Machine

PC Bucket Blowing Mould Machine
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
This machine is specially designed for making PC buckets (suitable for water storage and transportation).



Main specification:


Product Max Volume: 20L

Diameter of Screw:    82 mm

L:D of screw:            25:1

Plasticizing capacity:   90kg/Hour

Mold platen dimension: 740x520 mm

Clamping mould storke: 330~780 mm

Opening and clamping speed: 370mm/s

Mold dimension: 740*520 mm

Mold thickness: 340 ~440 mm

System pressure: 14 Mpa

Clamping force:  210 K.N

Accumulator  capacity: 1.5L

Maxi diameter of die head: 83 mm

Bottom blowing lifting stroke: 150 mm

Blowing pin lifting stroke:125 mm

Framework lifting  stroke: 350 mm

Extrusion  heating power: 34 KW

Heating power of die head: 8.7 KW

Oil pump power:   45KW

Servo motor power: 4 KW

Max General power: 91.7 KW

Average consumption: 45 KW

Dimension : 5.3x2.7x4.4 m

Weight:  11 Ton



Prod Model: 82-PC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Making Method Of Parison: Extrusion-Blow Molding
Raw Material: Mixing
Certification: ISO9001:2008
Type: Extrusion Blow Molding Machine
Automation: Automatic
Computerized: Computerized
Zhangjiagang Shazhou vehicle company have being specialized in producing trucks and buses since established in 1984, the former was the 7th factory of MUDAN Automobile Group. And Entered plastic machinery business in 2012 and mainly focus on blow molding machine.

Our main products cover from light trucks(2 ton ~5 ton), special purpose truck, mini bus. The truck category includes cargo truck, tipper, box truck, freezer, dumper, tow trucks and tank trucks.

As per blow molding Machines, which are suitable for producing all kinds containers and bottles (capacity from 0.5L to 1000L, all shaps are avaiable).

All our products have been proved to be strong marketable in oversea markets with stable quality and reasonable price. And our products have been to more than 40 countries, such as Ukraine, Syira, Algeria, Colombia and so on.

We offered a good after sales service for our vehicles: We have a team of experienced technicians and engineers in charge of after sales service. All English version Parts Catalogues and Service Manuals are available. Also, We have quicker response for parts supply.

As manufacturer, we are looking forward to cooperating with you and establishing a long term and mutual business relationship.
