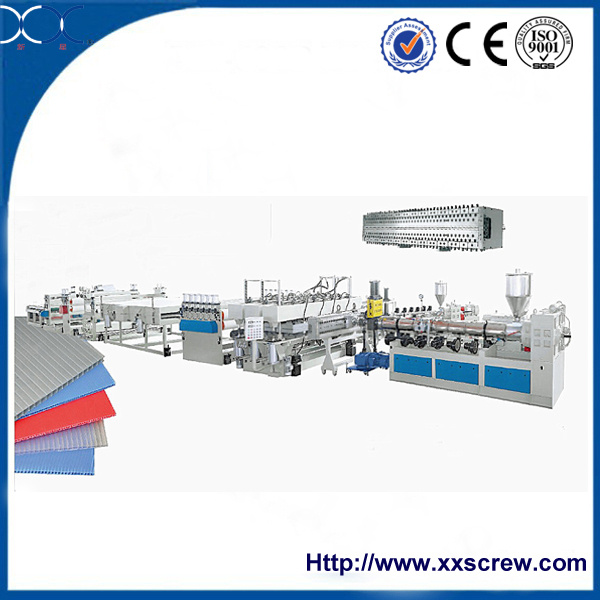

PC (polycarbonate) Embossed Sheet Extruder Machine

PC (polycarbonate) Embossed Sheet Extruder Machine
Price: US $ 1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
Parameter:

Screw:
The screw equip with compounding element, specialize in processing PC material, it is a new type, exhausting and with high efficiency. High quality alloy steel 38CrMoAlA
Barrel:
Hopper adopt the structure that feeding zone compact with compulsory water cooling device, and with compulsory feeding groove, the temperature of its adjustable. The barrel with exhausting device to guarantee the stability of output and the reliability of quality in the process of extrusion.
The cooling type is wind cooling. High quality alloy steel 38CrMoAlA, by nitriding treatment under high temperature.


DC motor, Eurotherm UK DC speed regulation system, digital DC speed regulator

Low voltage apparatus:
Button/slide switch Schneider, France
Contactor Siemens
Air switch Delixi
Intermediate relay Omron
Temperature controller RKC, Japanese
Heating ring device stainless steel aluminium die casting heater

The screw was designed special mixed material and high plastic so that it flux plastic, color and luster equality, output heighten.
Clothes rach Model DIE was designed special double throttle, it adjusts thickness of sheet exactly.
Temperature control can exactitude control the course of plastic and thickness and unknit of sheet.
Moulding unit adopt horizontal and vertical, it provide more choice in the operate course of thick sheet, sheet metal by fluctutuation at liberty and increase quality of sheet.
Adjusting thickness of sheet by screw and oil pressure pressing wheel double direction so as to achieve thickness exactly.
Pressing double loop cooling system, concert die temperature controller exactly control pressing wheel temperature so as to achieve unknit and thickness equally.
Cutting machine: Lengh and quantity of sheet achieve nicety.
Furing setting: It adopts senior torsion motor and four axis automatic tension, and adjust speet and furling tension at will for furling sheet metal unit. Dividing strip unit set width of the products.

April--008613661989441
Model SJZ45 SJZ51 SJZ55  SJZ65  SJZ80I SJZ 80II  SJZ92
 Screw Diameter  45/90  51/105  55/110  65/132  80/156  80/172  92/188
 Max rotational speed of screw  45 45   45 45  34.7  34.7  34.7
 Main motor   15 18.5   22  30/37  55  75  110
 Capacity  110  125  150  260  400  550  880
 Center height   1000  1000  1000  1000  1100 1100   1200
 Net weight   3000  3000  3500  4000 5500  6000   8000
 Dimension  3.3x1.2x2.1  3.6x1.1x2.1 3.6x1.1x2.1  4.2x1.5x2.4  4.7x1.5x2.4  5.0x1.6x 2.6 6x1.6x2.5

Prod Model: sjw
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality: QC
Certificate: Yes
Center Height: Customized
Engineer Supported: Yes
Dimension: According to Final Machine
Suitable For Raw Material: Plastic Raw Material
Engagement System: Intermeshing
Screw Channel Structure: Deep Screw
Exhaust: Exhaust
Type: Sheet Extruder
Screw: Twin-Screw
Automation: Automatic
Computerized: Computerized
Feeding Mode: One Feed
Product Type: Extrusion Molding Machine
Assembly Structure: Integral Type Extruder
Plastic Processed: ABS Pet PVC
XINXING brand was founded in 1993 at zhoushan city, Zhejiang province, China for barrel and screws manufacture;

Shanghai XINXING was founded in 1999 at Shanghai City, China for complete extrusion machine manufacture for PVC/PE pipe and pelletizing line.

With more than 20 year's experience XINXING has the ability to design and produce different extrusion line for PVC/PE/PP/PET/PS/ABS...Different raw materials with different final products like the PIPE, PROFILE, BOARD, SHEET, PELLET and so on.

And XINXING has exported all the lines to more than 30 countrys in all over the worl.

The mainly market for XINXING is Middle East, Eest Euro, South Asian and South American.

With 20 year's working in the interner market, XINXING has got strong market feedback, and set up reliable agent relation in the above market.

XINXING has the ability, the experience and the willing to offer professional and strong support to all the customer.
