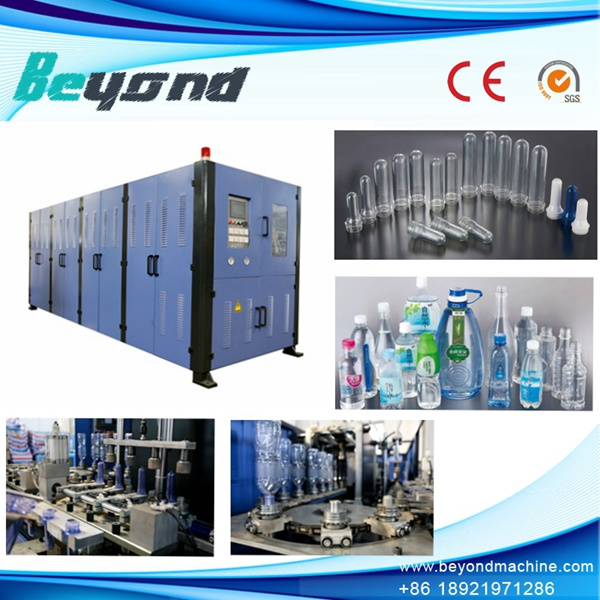

Automatic blowing molding machine
I.Multifunctional-Widely Used
Our blow molding machine is widely used in various PET bottle packing line, like purify water, mineral water, gassy mineral water, soda water, carbonated beverage, fruit juice, seasoning, detergent, cosmetic, cooking oil.TB series blow molding machine will meet various demands, and we can design a special one for special requirements.
II.Various Volume & Shape Bottle
BY-A series blow molding machine produced not only the usual bottle, but also the unusual bottles, such as jar, flat bottle, bottle with the handle and other unusual bottles.The normal mould cavity produced bottles from 0.05L to 1.5L, and can enlarge to 5L.
More Convenient
I.Change Shape Easily
It's easy for TIANT blow molding machine to change the shape of bottles, it can bedone by changing the mould.It will take you about one hour.
II.Easy to Maintain
The operator can control the machine by PLC.When the machine is at fault, the PLC will warn the operator and show the problems, then the operator will find the fault and repair it soon.
III.Safety Production
The structure of TIANT blow molding machine is full-closed, and the machine equiped the exit system which ensure the safety of the opereator.Meanwhile, the machine equiped multi-point detection technique also protect the safety of operation.
IV.Adopted the Linker of Air Conveyor
The new series of TB blow molding machine adopted the linker of the air conveyor, which will make the connection of the blow molding machine and the air conveyor easier and make the production line more automated.
Machine Features
1.Linear construction transports preform to heating and bottle forming.
2.Upgrade production capacity.
3.Upgrade power efficiency.
4.Simplified operation by MMI control panel.
5.Modular design facilitates maintenance.
6.Less energy consumption and the heating temperature of each section of the
Perform tube can easily be adjusted when needed.
7.With better design as rotary blowing machine
8.Capacity up to 6000bph.
9.From 2 cavities, to 6 cavities.
| container volume(ml) | 1500 |
| Electrical system(V) | 380v/50-60Hz |
| Cavity | 1 |
| Max diameter(mm) | 93 |
| clamping stroke(mm) | 120 |
| mold thickness(mm) | 160 |
| stretching stroke(mm) | 450 |
| theoretical output(pcs) | 2400 |
| Weight (KGS) | 2000 |
| The total measure area | 2720*3400mm |
| Main machine size | 2720*1440*2060mm |
| Loading machine size | 1700*1100*2400mm |
| Power(kw) | 50 |
| Use power(kw) | 20 |
Service Term
1.Installation
The initial installation is not included with the professional member.All installation with our team must be scheduled at least 4 weeks in advance before actual trip taken.All necessary connectivity must be ready prior the service being scheduled.
While our professional member arrives at the site for a completed and final installation, two days training course will be provide to the customer for operation and maintenance procedure.The initial installation is provided within 5 working days excluding travel days.The actual installation days many vary, based on different machine mode and packing lines.Each day of working hour consist at 8 working hours.Any additional day will be charge according to our service fee listed below.
When initial installation is being called for our professional member required, the surcharge will be made advance by the purchase at US$80/person/day plus all travel expenses.Travel expenses include documentation fees visa charge);Local and destination transportation charges air, train, ferry, bus, taxi or any means of transportation required to arrive to/from destination);Accommodation (minimum of 3 star hotel facility) and 3 daily hot meals.
2.Translator
If translator is required and can't be provided by purchaser then we will provide a translator for same charge as initial installation stipulated above.All communicate with our engineer should be in Chinese.Any translation provide by us will be based between English and Chinese only.Purchaser is responsible for the translation between local language and English.
Our company and packing
Commercial Terms
1.Warranty
All parts are under One Year Warranty with defects from manufacturer.Any other defect caused by human error, mishandling, wear-and tear & any foreseeable conditions will not be covered by this warranty.All electronic parts and component can be guaranteed by original part's manufacturer or our company.
2.Payment
30% of the total contract amount is to be T/T into assigned account at the period of 5 working days after the Purchase contract is signed.
70% of the balance must to be made via T/T of the remainder balance amount of the purchase contract before the ordered equipment is to be delivered 10 working days prior of the shipment.
We also accept L/C payment, 30% down payment, and 70% L/C at sight
Connection:
Phone:+86 18921971286
Tel:+86-512-55398012
Fax:+86-512-55398012
Address:Sanxing Industry park,
Zhangjiagang city, jiangsu province
Zhangjiagang Beyond Technology Co., Ltd. Has more than 15 years experiences on beverage filling and packing machinery. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry and automatic blow molding machine in China.
For beverage machine, our Main products including:
The capacity of 2000-- 40000 BPH for hot filling (juice and tea filling) and MID-temp filling and aseptic cold filling lines.
The capacity of 2000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 2000 -- 36000 BPH for carbonated beverage and cold filling producing line.
The capacity of 1000_8000BPH for vinegar and alcohol producing line. The capacity of 100 -- 2000 TBH for 3 gallon and 5 gallon barrel producing line.
The capacity of 2000--10000 BPH for milk producing line.
All kinds of water treatment equipment.
PET perform inject and blowing-stretching machine.
Plate and tube UHT device, and CIP system.
We carry a strict quality management system in accordance with CE and ISO9001 requirements. We have established a complete processing line including design and manufacture and sale and after sale service. Our products are sold well around the world.
We are proud to adhere to our company slogan "Engineering Excellence". Please be free to contact us for more information and we are ready for making business relations with you in the near further.
