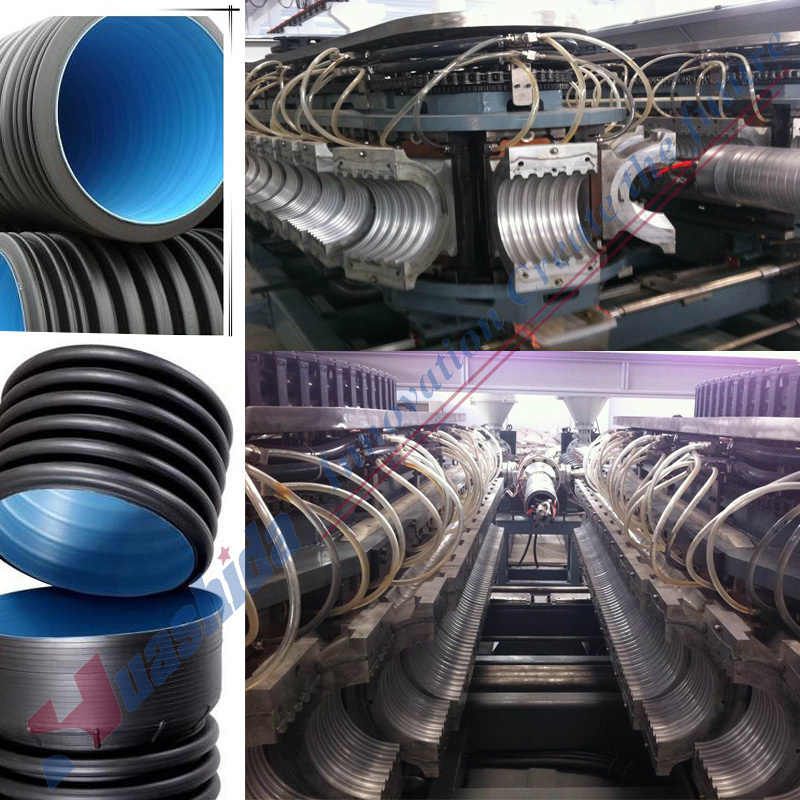

DWCP-500 HDPE Double Wall Corrugated Pipe Extrusion Line
The Extrusion Line includes equipments as below,
1. SJ90× 36 Single Screw Extruder (for the outer wall extrusion)1 set
2. SJ75× 36 Single Screw Extruder (for the inner wall extrusion) 1 set
3. BW-500 high-speed water cooling corrugator 1 set
4. CWT-500 cooling water tank 1 set
5. C-500 automatic dustless cutting machine 1 set
6. Stacker 1set
7. Die head and mould blocks (110, 160, 200, 250, 315, 400, 500mm)7 sets
8. Electronic Control System 1 set
(OD)
Pipe Size(mm) |
110 |
160 |
200 |
250 |
315 |
400 |
500 |
(ID)
Pipe Size(mm) |
95.5 |
138.4 |
172 |
217 |
274.6 |
346 |
428 |
SN8
Weight/meter(kg/m) |
0.85 |
1.2 |
1.9 |
2.7 |
4.1 |
7.1 |
10.5 |
SN4
Weight/meter(kg/m) |
0.68 |
0.93 |
1.6 |
2.4 |
3.6 |
5.5 |
7.5 |
Speed(m/min) |
≥6 |
≥5 |
≥4.2 |
≥3.8 |
≥2.8 |
≥1.9 |
≥1.6 |
Qingdao Huashida Machinery Co., Ltd. Was established in Qingdao High & New Technology Industrial Area.
HSD have twenty years plastic machinery and related products manufacture experience, structured working attitude and responsibility. Assimilate and master technology introduced from abroad, we developed series of high effective single screw extruder.
As a professional manufacture in plastic pipe and plastic sheets machinery in China, Qingdao Huashida Machinery Co., Ltd. is specialized in designing and manufacturing plastic extrusion lines as well as welding equipments etc.
Our products have exported to many countries, such as Japan, Taiwan, Russia, Uzbekistan, Kazakhstan, Turkey, Thailand, Brazil, Saudi Arabia, Egypt, South Africa, India etc.
