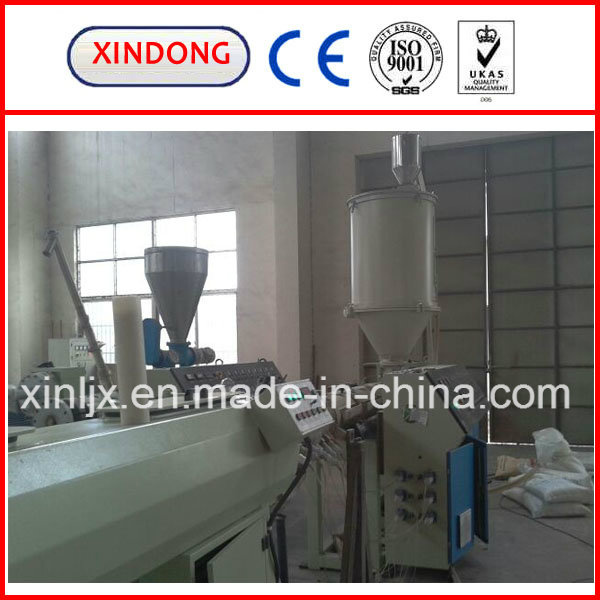

PE/HDPE pipe extrusion/production line
Also called HDPE/PE pipe production, PPR/PE production line, PE/HDPE pipe extrusion/production line, PE gas and water supply pipe line, PE pipe extrusion line.
We are manufacturer for PE PPR /PVC pipe extrusion line.
Main applications:
This production line is composed of single screw extruder, vacuum shaping tank, spraying cooling tank, drawer, cutter, stacker, and also coordinated with different specification of moulds, to produce pressured water-supply, draining, gas, chemical antisepsis pipe materials etc.
| Model number | HDPE-16/63 | HDPE-20/110 | HDPE-50/160 | HDPE-75/250 | HDPE-110/315 | HDPE-200/450 | HDPE-315/630 | PE-400/800 |
| Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 400-800mm |
| Max output | 150kg/h | 200kg/h | 350kg/h | 350kg/h | 350kg/h | 450kg/h | 850kg/h | 850kg/h |
| Production rate | 1-15m/min | 1.2-12m/min | 0.6-8m/min | 0.5-4m/min | 0.4-3.7m/min | 0.3-3m/min | 0.2-2m/min | 0.1-1 m/min |
| Extruder model | SJ-65/30 | SJ-65/33 | SJ-75/33 | SJ-75/33 | SJ-75/33 | SJ-90/33 | SJ-120/33 | SJ-120/33 |
| Installed power | 85kw | 110kw | 125kw | 180kw | 260kw | 325kw | 480kw | 600kw |
| Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1300mm |
| Installation area | 35x3.0x2.0m | 38*3.1*2.2m | 38*3.1*2.2m | 40*3.2*2.4m | 42*3.2*2.4m | 52*3.3*2.6 m | 60*3.5*2.8m | 68*3.6*3.0m |
We, Zhangjiagang City Xinlai Machinery Co., Ltd, are professional manufacturer for plastic machinery located in Zhangjiagang, which is 2 hours away from Shanghai.
Our main products are:
1. Plastic extruder
2. PE/PP/PVC pipe production line 3
. PVC profile extrusion line
4. PE/PP/PVC/PET recycling granulation line
5 assistant machines, like shredder, crusher, pulverizer, loader, mixer, dryer, winder, belling machine, mold, printer, etc.
We are a manufactory gathered with designing, developing, producing and selling. By many years of concentrated business and combined with the practical experience, our products form serialization and standardizatio granually. Now we own our brands are "XINLAI"& "XINDONG", and products have passed CE & SGS certificate.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market, like South-East Asia, Middle-Ease, Africa, South America, etc. We wish to cooperate with you to create a bright future and mutual benefit.
Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
