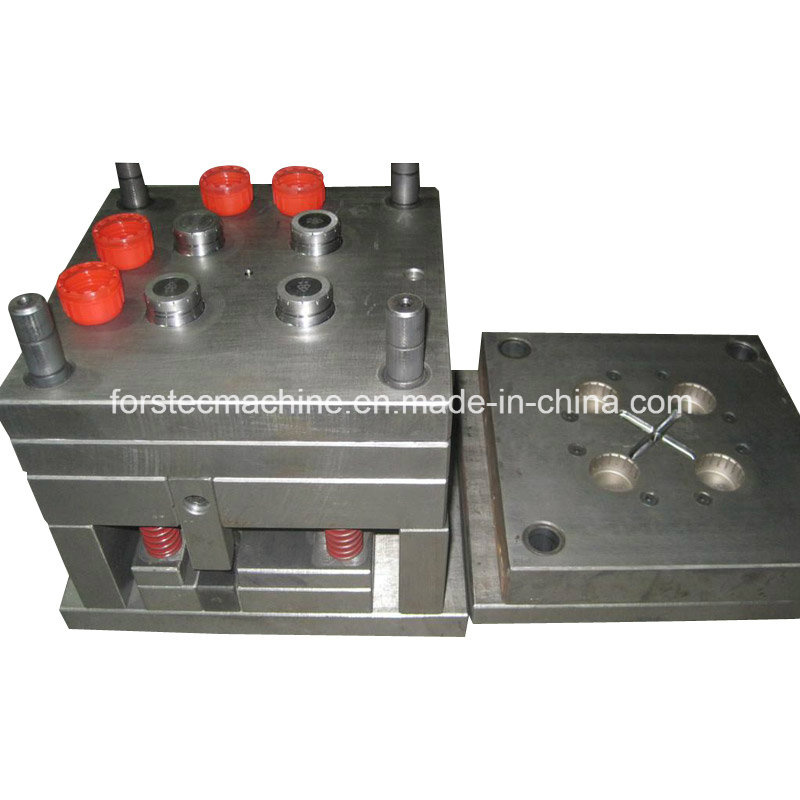

PE Multi Cavity Injection Mould for Plastic Bottle Caps
1.· Mold cavity from 1 to 48.
2.· Adopt imported high-quality mold steel(# P20 steel and #2316 Steel Germany,#718,#s136 and so on).
3.· Adopt advanced hot runner system with point to point control system,which ensures uniform heating.
4.· Each core and cavity adopt independented cooling system, which brings high productivity.
5.· Mold cavity is replaceable,which is convenient to change the label.
6.· At least 3 million shots life-time guaranteed.
7.· Electric control system with simulating stretch testing to improve yield rate.
8.· The materials of core and cavity are made of mirror corrosion resistance and plastic mold steel imported from Sweden or Germany.
9.· International standard screw neck, imported nitrided steel with high hardness and long life time.
10.· Adopt advanced hot runner system with point to point control system,ensure uniform heating,which brings high-quality products.
11.· Spare parts are processed by CNC,which ensure the precision.
13.· Adopt advanced technique to make each cavity mold concentricity(tolerance less than 0.08mm).
14. Design different kinds of mold structure,such as sliting cap mould and cuting cap mould etc.
15. Great final polish
Cap mould general dataz:
neck | no,of cabity | 16cavity | 24cavity | 32cavity |
| Ø28mm | W*L*H(cm) | 48*47*45 | 64*47*49 | 80*49*53 |
| weight(kg) | 720 | 1000 | 1450 |
| Ø30mm | W*L*H(cm) | 48*48*57 | 66*52*54 | 85*53*58 |
| weight(kg) | 920 | 1300 | 1850 |
| Ø38mm | W*L*H(cm) | 54*58*54 | 74*58*59 | 95*63*63 |
| weight(kg) | 1180 | 1750 | 2600 |
