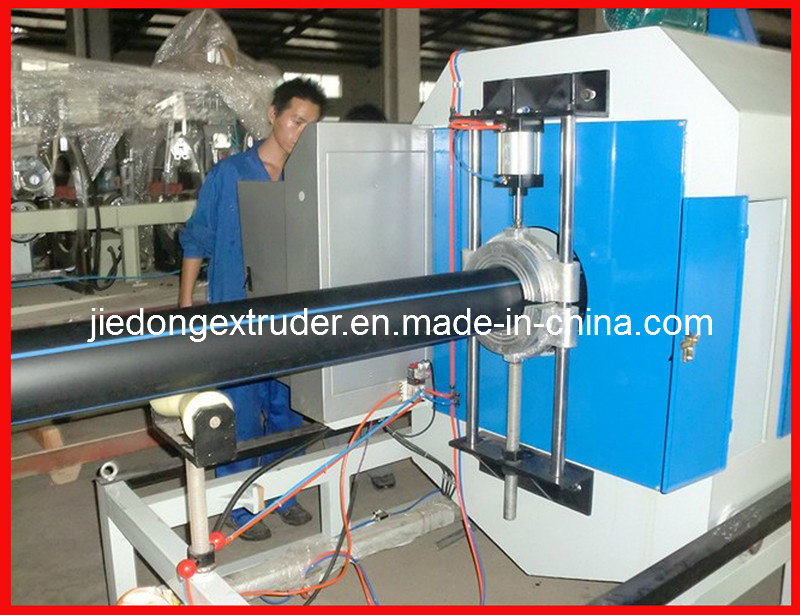

PE Pipe Machine (JD-PEG400)

PE Pipe Machine (JD-PEG400)
Price: US $ 80000-140000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
HDPE water gas/water pipe extrusion line designed and manufactured by Qingdao Jiedong Machinery based on years of experience, combined with the actual situation at home and abroad, has a beautiful appearance, a high degree of automation and stable production, well received by the customers.

Pipe produced by this line has excellent hardness and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress cracking resistance and creep resistance, hot-melt connectivity, and other advantages, it is the first choice of city gas and water transmission pipeline.

1. SJ-90/33extruder: 1 set
1.1 DC motor, 160KW 1 set
1.2 EUROTHERM Speed regulating unit, 160KW 1 set

2. SJ-30/25 extruder 1 set
2.1 AC motor and OMRON frequency conversion control, 3KW 1 set

3. Pipe die head and dies 1set
200, 225, 250, 280, 315, 355, 400mm

4. SZD-6000 Vacuum calibration unit (the height of the centerline is 1100mm) 2 sets
The first calibration unit is equipped with 2 vacuum pumps and 2 water pumps.
The Second calibration unit is equipped with 1 vacuum pump and 1water pump.

5. SDP-6000 Spray cooling bath (the height of the centerline is 1100mm) 2 sets

6. SQY-400 Hauling-off machine (the height of the centerline is 1100mm) 1 set
4-pedrial hauling-off machine
Valid clamping length: 2000mm

7. SQG-400 Cutting machine (the height of the centerline is 1100mm) 1 set
Planetary cutting

8. SFL-12000 Stacker (the height of the centerline is 1100mm), 12000mm long 1 set
Prod Model: JD-PEG400
Markets: Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Application: PE Pipe Extrusion
PE Pipe Dia(Mm): 200-400
Certificate: CE, SGS
Extruder Type: Sj90/33 Single Screw
Screw Dia(Mm): 90
Max Extrusion Capacity(Kg/H): 450
Installed Power(Kw): 220
Design Speed(M/Min): 0.5-2
Certification: ISO9001:2008
Automation: Automatic
Product Type: PE Pipe
Computerized: Computerized
Qingdao JIEDONG plastic machinery Co., Ltd is a professional manufacturer of plastic machinery, who is one knowledge-intensive manufacturer dedicated to extruder kind of equipment of scientific research, development, fabrication, sales and service.
Our company was awarded science and technology progress enterprise title by Qingdao government, also holds ISO9001: 2000 and CE certificate, and has independent import and export rights.
Plastic machinery we manufactured widely covers series extruder of plastic pipes; plastic plate &sheet; plastic profile; granulating unit; plastic recycle machine and crusher, more than 20types and have more than 100 varieties.
Our plastic machinery with top quality and company hold very good reputation, so our plastic machine lines had far sold to 30 provinces and cities in domestic market and had export to India, Russia, Korea, Iran, Saudi Arabia, Turkey and Vietnam.

Our products include plastic pipe production line, plastic profile production line etc
such as:
machine for PVC pipe, PE/HDPE pipe, PPR pipe, PA/PU pipe, corrugated pipe, COD duct, pre-stressed corrugated pipe, PE carbon corrugated pipe etc.

Machine for plastic profile include: PVC sheet, PVC corner bead, PVC profile, PET sheet, PET packing belt, WPC sheet, WPC door/winder board, WPC profile etc.

auxiliary machinery include: Mixer, drying machine, crusher, pelletizer etc
