Equipment List:
1. Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE low temperature extrusion production.
2. Specially-designed spiral moulds for PE pipes, with inside oil controlling temperature system.

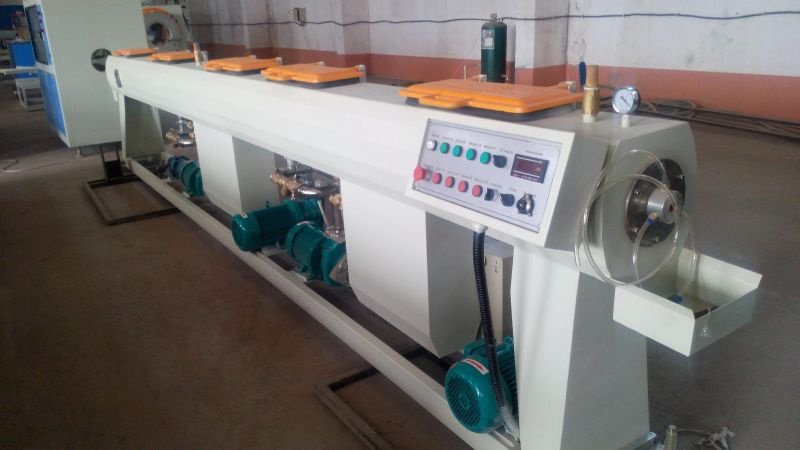

3. Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; special spray cooling system improves the cooling efficiency ; special water position, water temperature system make the machine more intelligent.

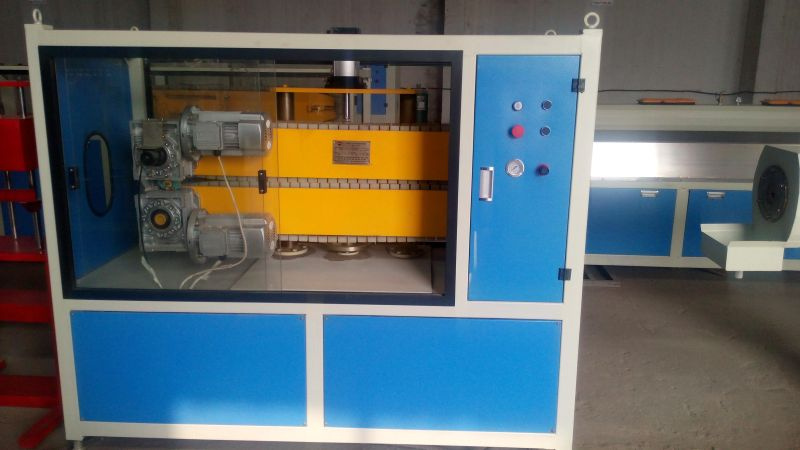

4. Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.
5. Cutting system adopts saw blades and planetary cutting means; sumping uses hydraulic system , which ensures the smooth cross section; equipped with dust-collecting unit, which ensures the clean working environment.
Model
Item |
SJSZ-65/30 |
SJSZ-90/30 |
SJSZ-120/30 |
SJSZ-150/30 |
SJSZ-120/33 |
SJSZ-150/33 |
Pipe Size/mm |
16-63 |
75-160 |
160-315 |
200-450 |
315-630 |
400-800 |
Screw Diameter/mm |
65 |
90 |
120 |
150 |
150 |
150 |
L/D |
30:1 |
30:1 |
30:1 |
33:1 |
33:1 |
|
Capacity/kg/h |
80-160 |
180-220 |
250-400 |
500-600 |
700-900 |
800-1000 |
Hauling Speed/m/min |
0-16 |
0-10 |
0-6 |
0-3 |
0-2 |
0-1.5 |
Cutting Means |
Saw blade or non-scrap cutting |
Planetary cutting |
Planetary cutting |
Planetary cutting |
Planetary cutting
|
Qingdao Jinfuxin Plastic Machinery Co., Ltd is a state designated enterprise producing plastic machinery and high-tech enterprise in Qingdao. Mainly engaged in research & development, manufacturing, sales, and after-sale service of new plastic machinery. Products consist of PVC Crust Foam Board Production Line, Plastic Grass Mat Machine, PET/PP Strap Production Line, PA/PP/PE/PET/PBT Filament Extruding Machine, etc. And all kinds of plastic pipe, profiles, board, bar extrusion line and auxiliary equipment. Our machines are popular with the customers, which are sold all over the country and exported to Southeast Asia, Russia, Ukraine, Iran and other countries.
Since our company has establishd, it always takes the domestic and international market as the guide, the technology as leader, the quality as the life, strengthens joint units with domestic colleges and universities of science and technology and brings in and absorbs foreign advanced technology, in a timely manner to develop new plastic industry products according to the market demand, provides customers with a complete innovative set of production line, takes customer satisfaction as the ultimate goal, to strive for the best plastic machinery in China.
And expand the Qingdao Jin Xinquan Plastic Products Co., Ltd., production of plastic corrugated pipe products are mainly used for electrical threading pipe, auto threading pipe, casing, machine tool products, food packaging machinery, electric locomotives, engineering installation, lamps and lanterns, automation instruments and meters, etc
Jinfuxin company aim "morality for the surplus, credit management, service oriented, joint development, shaping the future".
