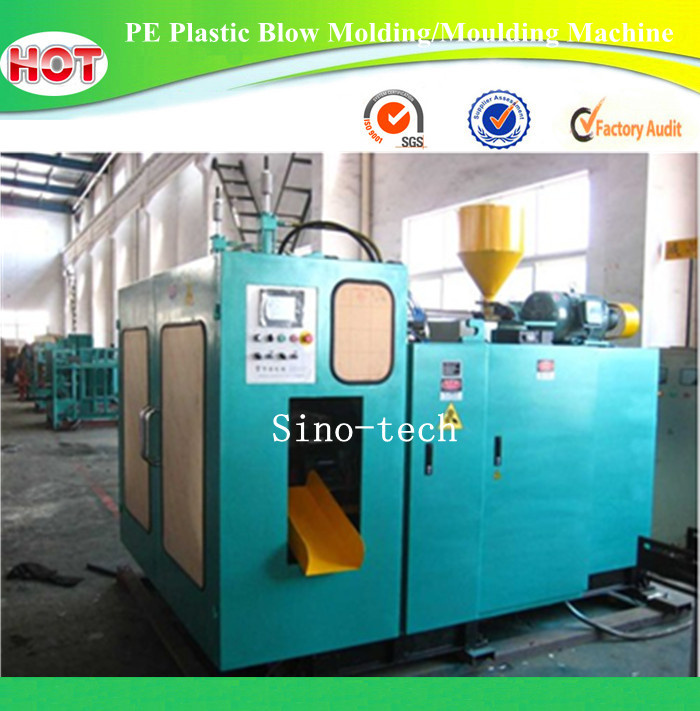

PE Plastic Blow Molding Moulding Machine

PE Plastic Blow Molding Moulding Machine
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
PE Plastic Blow Molding/Moulding Machine (TCY704D)
Good quality and best price can make your needs

PE Plastic Blow Molding/MouldingMachine (TCY704D)
D means double station
Y means two-way guide rail clamping structure
"4"means number of die-head

PE Plastic Blow Molding/Moulding Machine (Voltage: 380V/50Hz)
       Specifications
             TCY704D
Material
HDPE,LDPE,PP^
Max container capacityL0.5
Number of dieset4
Output(dry Cycle)pc/hr500*2
Machine Dimension(L*W*H)M3.53*2.25*2.6
Weightton7.8
                  Clamping Unit

Clamping forceKN70
Platen opening strokemm188-538
Platen sizemm338*430
Max mould size(W*H)mm360*450
Mould thicknessmm190-320
                          Power

Max driveKW27.5
Total powerKW48.4
Fan power for screwKW0.48
Air pressureMpa0.7
Air consumptionm³/min0.9
Average energy consumptionKW18.5
                     Extruder unit

Screw diametermm70
Screw L/D ratioL/D24
Plasticising capacityKg/hr75-80
Number of heating zonezone3
Extruder heating powerKW14.2
Extruder driving powerKW22
                          Die-head

Number of heating zonezone6---7
Power of die heatingKW6.7
Max die-pin diametermm40
Center distance of double diemm0
Center distance of tetra-diemm100
Prod Model: TCY704D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Production Name: PE Plastic Blow Molding/Moulding Machine
Type: Extrusion Blow Molding Machine
Raw Material: HDPE
Making Method Of Parison: Extrusion-Blow Molding
Automation: Automatic
Computerized: Computerized
Certification: SGS
Zhangjiagang Sino-tech Machinery Co., Ltd. is a group company located in the beautiful seaport city of Zhangjiagang, which is near to Shanghai. We devote ourselves to the development, research and production of plastic machine, beverage equipments filling and packing industry and automatic blow molding machine with over 20 years'experience.
Now our equipments have been exported to USA, Canada, Mexico, Colombia, Brazil, Argentina, UK, France, Germany, Belgium, Russia, Saudi Arabia, UAE, Yemen, Iran, Oman, Syria, Jordan, Israel, Egypt, Japan, Philippines, Myanmar, and India etc...

For plastic machine: , Our main products include as follow

Big-mouth PVC pipe excluding production line
PE big-mouth for gas, water supply excluding production line
Plastic sheet or panel production lin
Plastic profile production line
Plastic granulating production line
Plastic recycling machine
PP-R pipe production line
Plastics extruder
High speed mixer, various plastic auxiliary machines

For beverage machine, our Main products include as follow
The capacity of 2000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 2000-- 40000 BPH for hot filling, MID-temp filling, aseptic cold filling lines.
The capacity of 2000 -- 36000 BPH for carbonated beverage producing line.
The capacity of 300 -- 1200BBH 3 gallon, 5 gallon barrel filling line
The capacity of 1000 -- 12000BBH glass bottle beer filling line
The capacity of 2000 -- 25000BH ice pop, ice lolly filling production line
Various kinds of linear and rotary engine oil and edible oil filling line
All kinds of water treatment equipment.
PET perform injection and blowing-stretching machine.
Extrusion blow molding machine
Turn-key projects
Flat and tube UHT device, and CIP system.

SINO-TECH purpose is "keep developing to meet worldwide clients' demands. "

Welcome to visit our company. Thank you!
