Three calender Plastic Sheet/ Film Extrusion Line Extruder Machine (HSD)
KF800mm KF1200mm KF1500mm KF2000mm KF3000mm
The sheet extrusion lines are the most complete, high performance, reliable sheet lines. We offer them as complete systems in 3 sizes: With a 65mm, 90mm, or 120mm extruder, to produce just the capacity you need.
The single screw extruder with good motor, digital controls, vacuum venting, screen changer, gear box, and a flexible lip die. Your extruder also can be equipped with the PLC/PCC control system, the specially design screw for HIPS, PP, and PET.

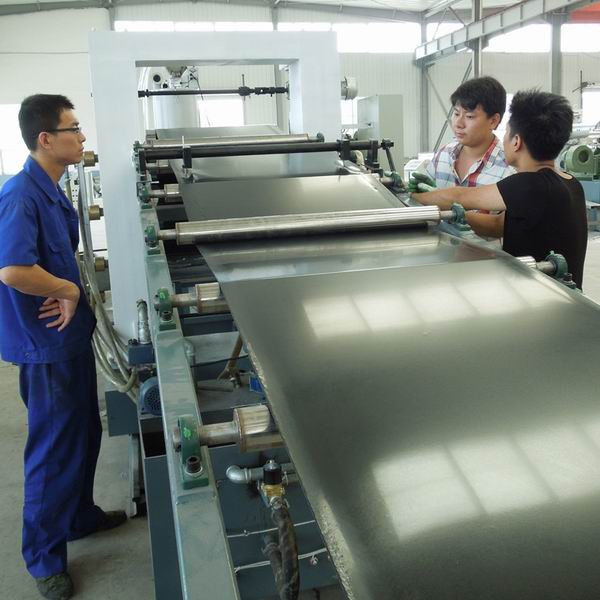

The sheet take-offs (Three rolls calender) feature three hard surface polishing rolls with flawless mirror chrome plating, designed for the highest efficiency heat transfer. Each roll is equipped with an individual, built-in, high volume pressurized water temperature control system. The sheet take-offs also includes two shaft winder.
Every lines include an edge trim system.
---The extrusion line comprise equipments and devices as below,
1set Vacuum loader
1set Hopper dryer
1set High-effeciency single screw extruder
1set "T"die mould
1set Three-calender Machine
1set Cooling rack
1set Hauling machine
1set Shearing machine
|
KF800 | KF1200 | KF1500 | KF2000 | KF3000 Geomembrane |
Hydraulic screen changer |
|
|
|
|
|
Melt pump |
|
|
|
|
|
Metering pump |
|
|
|
|
|
feedblock |
|
|
|
|
|
mould | width | 900mm | 1400mm | 1900mm | 2400mm | 3200mm |
structure | "T" die / Clothes hanger type flow channel |
Product thickness | 5-14mm | 3-20mm | 3~30mm | 3-30mm | 0.5~2.0mm |
Product width | 800mm | 1200mm | 1500mm | 2000mm | 3000mm |
(KW x) heating power (KW x sections) | 30kw |
|
|
| 4.0Kw×13 |
|
|
|
|
| 1100mm |
|
|
|
|
| 3500Kg |
three calender | Roll spec. | Φ315x900mm | Φ500x1400mm | Φ700×1900mm | Φ700×2600mm | Φ400×3200mm |
+ Reducer and servo motor |
|
| Delta | Delta |
|
3 rolls motor power | 1.1kwx3 | 1.5kwx3 | 3.0Kw×3 | 3.0kw3 | 1.5kwx3 |
Movement motor power | 1.5kw | 1.5kw | 1.5Kw | 1.5kw | 1.5kw |
Inverter | ABB | ABB | ABB | ABB | ABB |
Bearings | NSK | NSK | NSK | NSK | NSK |
3-calender type | | | Vertical, Upper inlet lower outlet | Vertical, Upper inlet lower outlet | |
Calender temperature controlling System | Cooling medium | Oil or water | Oil or water | Oil or water | Oil or water | Oil or water |
heating power |
| 18kwx3 | 18Kw×3 | 18kwx3 |
|
Water or oil pump power |
|
| 4Kwx3 | 4kwx3 |
|
Cooling forming Device | Roller diameter |
| Φ120×1400mm | Φ120×1900mm | Φ120×2600mm |
|
Roller quantity |
| 4 pairs | 4 pairs | 6pairs |
|
motor power |
| 0.55kw | 0.55Kw | 0.55kw |
|
Inverter |
| ABB | ABB | ABB |
|
Clamp type |
|
| Pneumatic |
|
|
Cooling frame | length | 6m | 15m | 18-25m | 18-25m | 6m |
Roller size | Φ70x900mm | Φ70x1400mm | Φ70×1900mm | Φ70×2600mm | Φ75×3200mm |
Haul off | Roller size |
| Φ250×1400mm | Φ250×1900mm | Φ250×2600mm | Φ280×1900mm |
Motor power |
| 4kw | 5.5Kw | 3.0kw | 2.2kw |
Cutter | style |
|
|
|
|
|
Motor power |
| 5.5kw |
|
|
|
Inverter |
| DANFOSS | ABB |
|
|
Transporter | style |
|
| Rolls transmission or belt transmission |
|
|
|
|
|
|
