PE/PP Single Wall Corrugated Pipe Extrusion Line shall be used to produce small diameter single wall corrugation pipe in PP and PE raw material.
Plastic single-wall corrugated pipes produced by this single wall corrugated pipe machine have many features such as high intensity, good flexibility, high temperature resistance, resistant to corrosion and abrasion, etc. They has large market which are widely used in the fields of auto wire, electric thread-passing pipes, protective pipes of lamps and lanterns wire, circuit of machine tool, tubes of air conditioner and washing machine and so on.
Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die; Used as wire and cable passing pipe, washing machine drain pipe, dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.

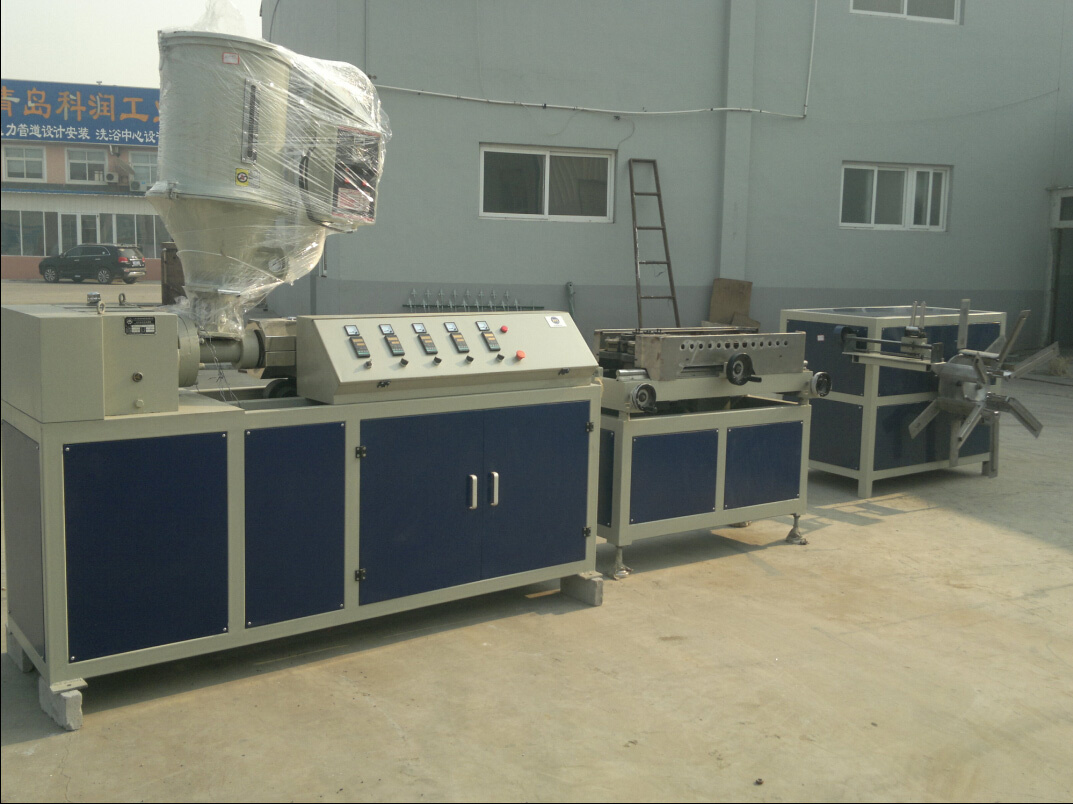

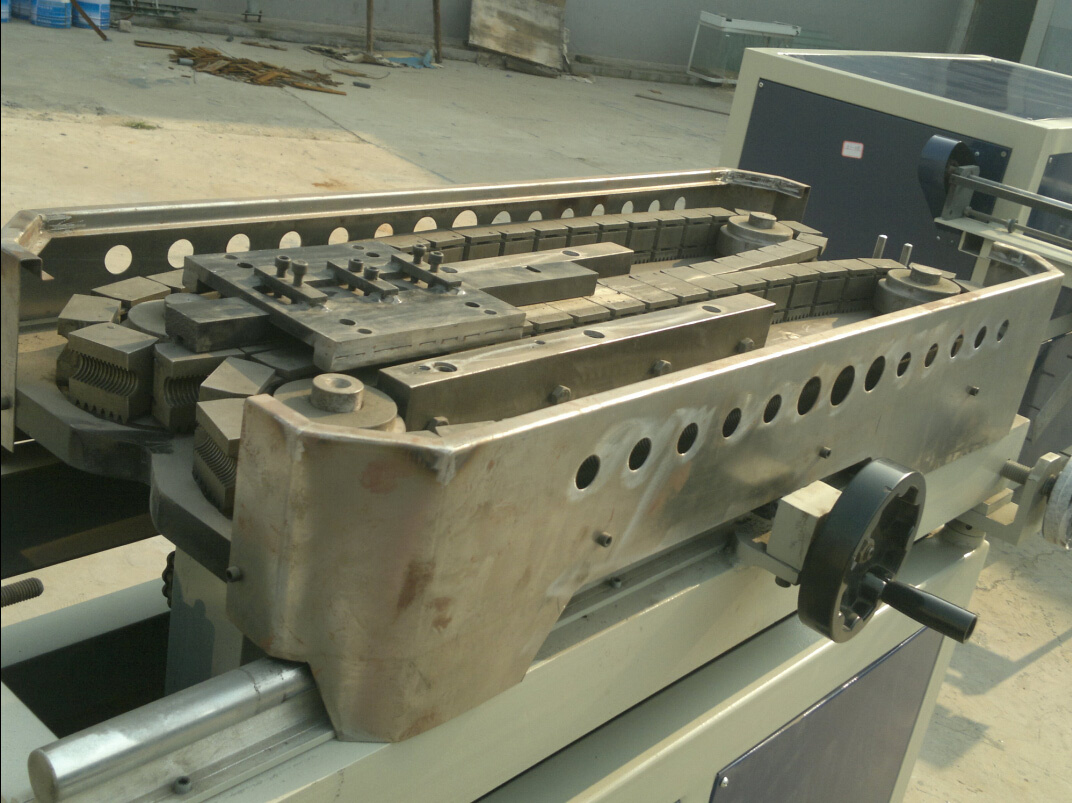

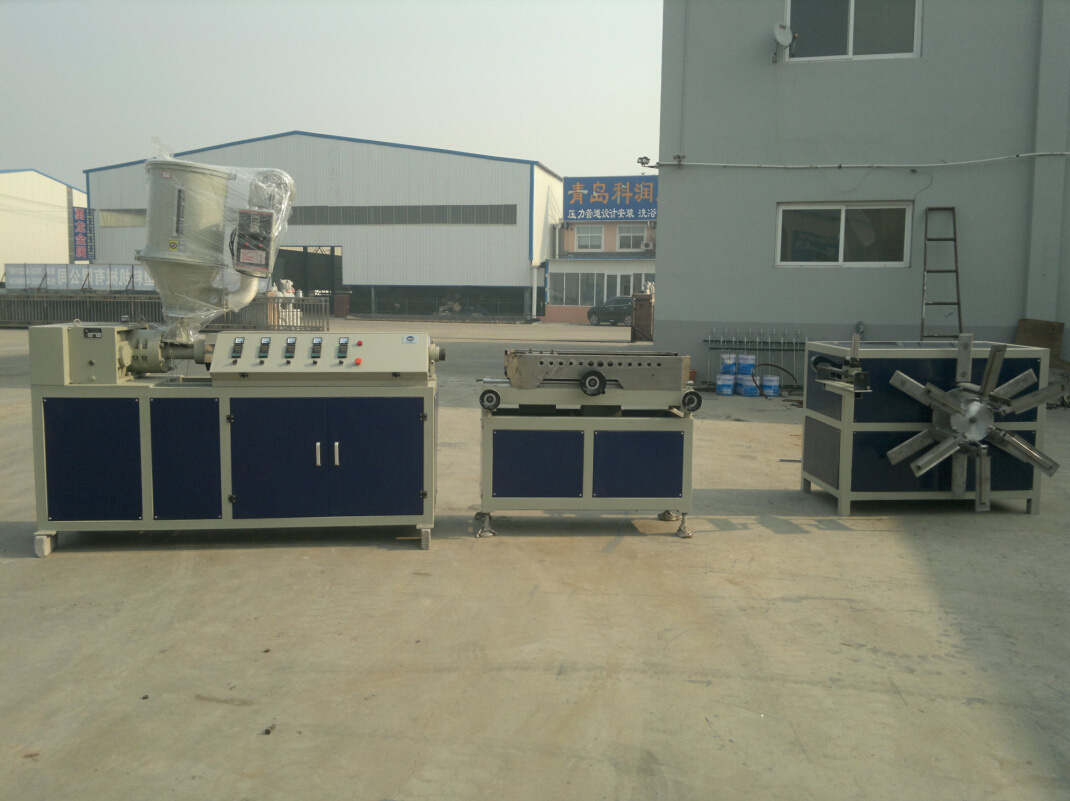

PE/PP Single Wall corrugated pipe extruding line consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment, Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipe in high speed.
Keywords: PP single wall corrugated pipe production line, PE single wall corrugated pipe production line, PVC single wall corrugated pipe production line, PP single wall corrugated pipe extrusion line, PE single wall corrugated pipe making machine, PVC single wall corrugated pipe extrusion machine.
Diameter Scope
|
4.5-9 mm
|
9-32 mm
|
16-75 mm
|
Main Extruder
|
SJ-30
|
SJ-45
|
SJ-65
|
L/D
|
30:1
|
28:1
|
30:1
|
Output kg/h (kg/h)
|
10
|
40
|
100
|
Main Motor (KW)
|
2.2
|
11
|
18.5-30
|
Corrugator Power (KW)
|
1.1
|
1.5
|
2.2
|
Mould Block Pairs
|
40
|
44-50
|
44-50
|
Cooling Type
|
Water and air cooling
|
Line Speed (m/min)
|
8-16
|
6-12
|
6-20
|
Counting Type
|
Sensing counting
|
Winding Type
|
automatic
|
automatic
|
automatic |
