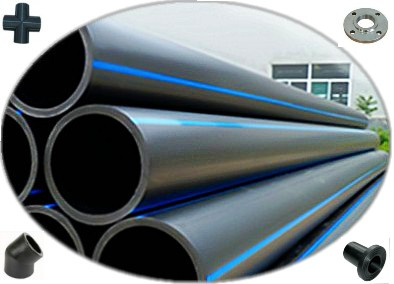

PE100 HDPE Pipe and Fitting

PE100 HDPE Pipe and Fitting
Price: US $ 0.1-100/Meter
Trade Terms: FOB,CFR,EXW
Min Order: 1000/Meter
Pay Type: L/C,T/T,Western Union,Paypal
HDPE water pipes

Advantages
1.Non-toxic: no heavy metal additives ,would not be covered with dirt or contaminated by bacterium
2.Corrosion Resistant: resist chemical matters and electron chemical corrosion
3.Low Flow Resistance: smooth interior walls and low friction
4.Excellent Flexibility: can be supplied in coil
5.Easy installation: light weight and handed friendly
6.Longevity: more than 50 years under proper use
7.Various Joint Availability: socket fusion joint, butt fusion joint, electro fusion joint and transition joint
8.Recycled and Environment-friendly
Applications
1.Municipal water supply
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment
HDPE pipe and fittings
1.Material:Original HDPE
2.size: 20mm to 1200mm
3.color: black
4.standard: GB/T13663.2-2005(for water)

5.application: water supply,irrigation,drainage

6.PE coupler,tee,elbow,reducer,cap end,stub end,etc.
7.SDR11/SDR13.6/SDR17/SDR21/SDR26(for water)
8. Producing Fom: injection moulding,butt welding fusion,electro fusion
Features
1. One-Touch tube fittings are used in pneumatic piping.
2. The tube fittings come in a wide variety of models to meet all your needs in pneumatic piping.
3. Even after installation, the direction of the tube can be changed freely.
4. Nickel-Plated metal body ensures Anti-Corrosion and Anti-Contamination.
5. All R and NPT threads are Pre-Coated sealant.
6. All cylindrical threads are standard with O-Ring seal

Physical Properties Typical Value
Specific Gravity, g/cm 3 (20°C) 0.941~0.965
Longitudinal Reversion, %(110°C) ≤3
Oxidation Induction Time, min(200°C) ≥20
Extension Rate at Break,% ≥350
Hydraulic Pressure Test 20°C,100h, Hoop Stress is 12.4MPa No Failure
80°C,165h, Hoop Stress is 5.5MPa No Failure
80°C,1000h,Hoop Stress is 5.0MPa No Failure

                                                                      HDPE100 water pipe specification
Outside Diameter
mm
SDR26/0.6MPa SDR21/0.8MPa SDR17/1.0MPa SDR13.6/1.25MPa SDR11/1.6MPa
Wall Thickness Wall Thickness Wall Thickness Wall Thickness Wall Thickness
mm mm mm mm mm
32 3.0
40 3.7
50 4.6
63 4.7 5.8
75 4.5 5.6 6.8
90 4.3 5.4 6.7 8.2
110 4.2 5.3 6.6 8.1 10.0
125 4.8 6.0 7.4 9.2 11.4
140 5.4 6.7 8.3 10.3 12.7
160 6.2 7.7 9.5 11.8 14.6
180 6.9 8.6 10.7 13.3 16.4
200 7.7 9.6 11.9 14.7 18.2
225 8.6 10.8 13.4 16.6 20.5
250 9.6 11.9 14.8 18.4 22.7
280 10.7 13.4 16.6 20.6 25.4
315 12.1 15.0 18.7 23.2 28.6
355 13.6 16.9 21.1 26.1 32.2
400 15.3 19.1 23.7 29.4 36.3
450 17.2 21.5 26.7 33.1 40.9
500 19.1 23.9 29.7 36.8 45.4
560 21.4 26.7 33.2 41.2 50.8
630 24.1 30.0 37.4 46.3 57.2
710 27.2 33.9 42.1 52.2
800 30.6 38.1 47.4 58.8
900 34.4 42.9 53.3
1000 38.2 47.7 59.3
1200 45.9 57.2 706.0
Note: 1. 20mm&25mm dimension are available for us.
          2. HDPE80 water pipe can be provided.

Prod Model: PE
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wall Thickness: 2.0mm-70.6mm
Length: 5.8m, 5.9m, 11.8m or Customized
Pipe Form: Straight Type(Dn20-1200mm), Roll Type(Dn20-63mm)
Supply Form Of Fitting: Injection Mould, Butt or Electro Fusion
Standard And Certificates: ISO4427-2007, ISO9001, ISO14001, Ohsas18001
Usage: Specialty Plastics
Material: High Density Polyethylene/HDPE
Color: Black
