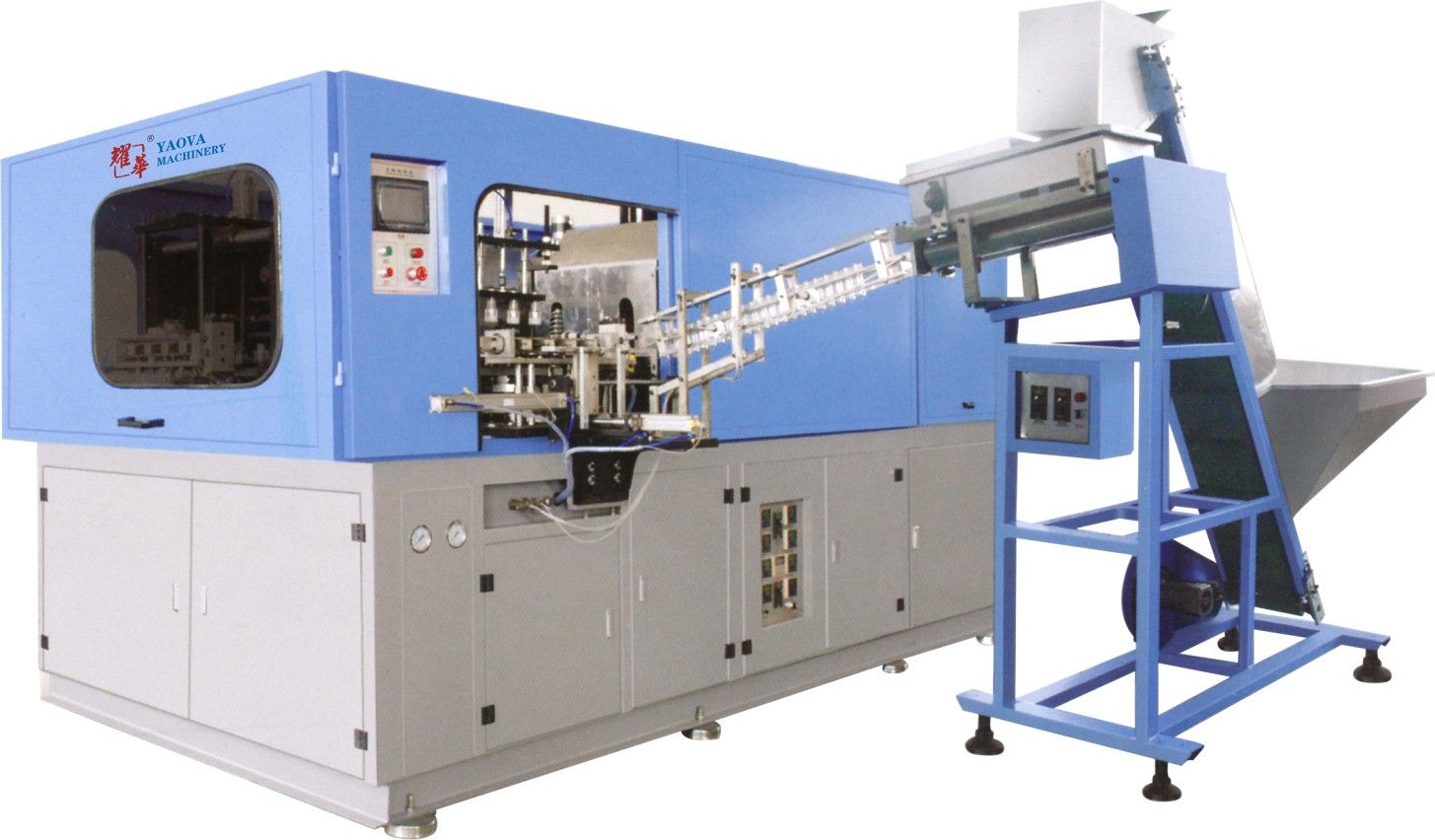

300ml Automatic PET Stretch Blow Moulding Machine

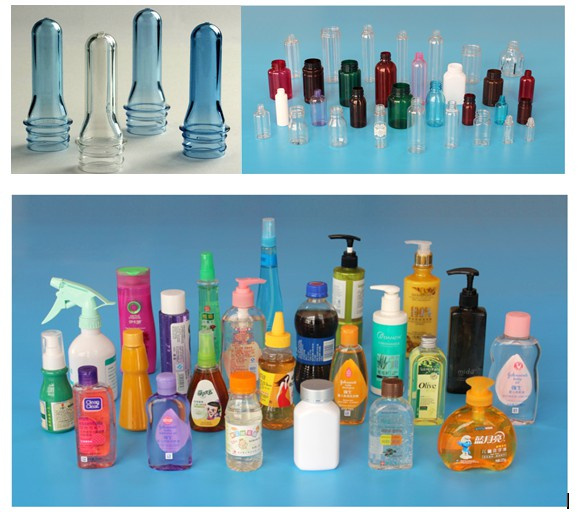

Application:This machine is suitable for making mineral water bottles,carbonated beverage bottles,cosmetics bottles,medicine bottles etc. less than 300ml.
Optimization design of a integrated templates,high strength,using lifetime.
Main Features:
*Template precision machining,running rapid and stable
*Can add high pressure gas recovery device as low pressure use.
*Frequency conversation constant temperature and layered heating system make heating equality,finished product stable.
*Auto-fault detection.
*Use the advanced touch-screen computer control,easy operation.
*Automatic feeding preform and picking up finished bottles.
*Modular design.Technical Specification: 300ML Automatic PET Stretch Blow Moulding Machine |
Category | Item | Unit | YV-300-2 | YV-300-4 | YV-300-6 |
Product Specification | Max volume | ML | 300 |
Output | pcs | 2000 | 4000 | 6000 |
Body diameter | mm | 56 |
Bottle height | mm | 190 |
Neck diameter | mm | 14-38 |
Mold | Cavity | cavity | 2 | 4 | 6 |
Clamping stroke | mm | 120 | 110 | 110 |
Max Stretch stroke | mm | 240 |
Bottom Moving stroke | mm | 50 |
Clamping force | T | 16 | 48 | 60 |
Power | Voltage standad | | 220/380/415V 50/60HZ 3 phase | | |
Total power | kw | 25 | 40 | 50 |
Actual use power | kw | 10 | 14 | 20 |

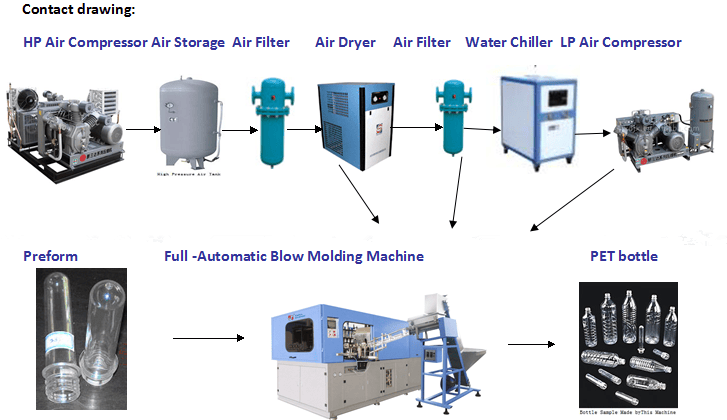

Air source | HP air compressor | -- | 1.2m³/min 3.0Mpa | 1.2m³/min 3.0Mpa | 1.6m³/min 3.0Mpa |
LP air compressor | 1.6m³/min 1.0Mpa |
Air tank | -- | 0.6m³/min 3.0Mpa | 0.6m³/min 3.0Mpa | 0.6m³/min 3.0Mpa |
Air dryer | -- | 1.0m³/min 3.0Mpa | 1.0m³/min 3.0Mpa | 1.0m³/min 3.0Mpa |
Machine specification | Machine(L*W*H) | m | 2*1.1*1.8 | 2.2*1.1*1.8 | 2.5*1.1*1.8 |
Machine weight | kg | 1500 | 1800 | 2000 |
Preform loader(L*W*H) | m | 2*0.95*2.4 | 2*0.95*2.4 | 2*0.95*2.4 |
Loader weight | kg | 250 |
Our services:
1. Reply the email and take action in 24 hours;2. 100% Quality inspection before the shipment;3. Offer trainning to clients operator for free in seller`s factory4. Engineer overseas is avilable5. Blowing mould and injection mould made orginal 6. Auxiliary machines for complate line.7. Custimized design as requirements.
YAOVA series PET stretch blow molding machine is belong to TONVA Plastics Machine Co., Ltd., which was established in 1993, and specializes in producing PET stretch Blow Molding Machines. Extrusion Blow Molding Machines, Vacuum Forming machine, moulds and related Auxiliary machines.
Company has a group of experienced engineers who contribute to more than twenty years in Blow Molding Machine industry and a team who is good at after-sale service. Based on fabulous reputation and favorable service, our products reach great sales both in domestic market and more than 50 countries. The company has passed the ISO9001: 2008 International Quality Control System and the CE system. We produce more than 400 sets of machines every year, total annual sales volume up to USD 5 million, and keep going every year.
YAOVA stretch blow molding machine can be divided into fully automatic machine, hand feeding perform automatic machine, and semi-automatic machine, they are used to produce various kind of products, such as mineral water bottles, beverage bottles, oil bottles, cosmetics bottles, Zip-top can, juice bottles, milk bottles, jars, PP bottles, tennis ball bottles, candy bottles, eye dropper bottles and PC bottles etc.
