Pet Feed Pelelt Making Machine

1. Pet  food pellet making machine/dog food pellet production line Description:

Animal food processing line is suitable to make dry animal food pellet (dog, cat,bird, monkey,rabbit etc.)
1). All Animal food equipments are made of stainless steel.It meet food safety require.
2). The Pet food making whole line fully continuous and automatic.
3). Datong Company  provide basic animal food receip according to your require.
4). The final animal food shapes and sizes can be various by changing the extruder die.
5). Supply different size mould free for customer.
6). Packing machine could be supplied to work with the line (depend on your require).

2. Raw materials for Animal food pellet:

For example,Most of pet food pellet inculding animal protein and plant protein, Plant protein adopts corn flour,rice flour,wheat flour,soybean flour,peanut cake powder..Animal peotein adopt meat meal, shrimp meal,crab meal, sleeve-fish meal ,bone power,fresh meat paste,chicken paste and so on.you can add other ingredient according to the local fish live require.
Cat food you should add sea animal powder..............
Dog food you should add bone powder, meat powder..
You should change some raw material percent according to the animall require!

3.Pet food pellet making machine can make the follow Products:

This animal food processing line can be used to produce pet food pellets, the pellets size can be changed by adjusting the extruder dies, Meanwhile this line can  used to produce dog food, cat food by change some place. You can buy one whole line to make fish food and dog cat food together.

 4. The Dog food pellet machine  Capacity:

    50-60kg/h  100-150kg/h, 220-260kg/h, 400-500kg/h, 800-1000kg/h 1200-15000kg/h

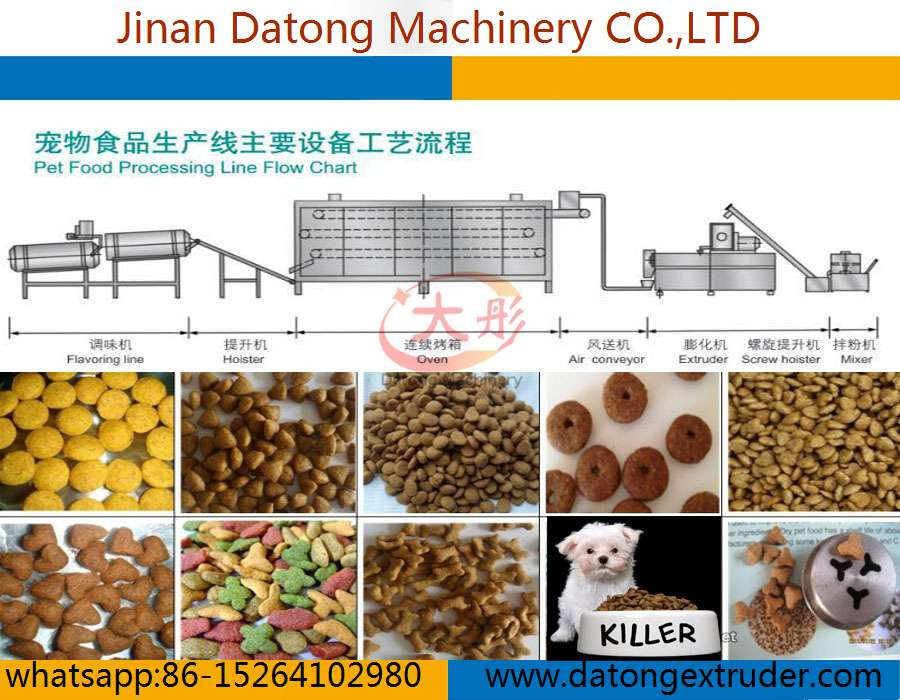

 5. The dog food pellet making machine/dog food pellet production line ( 100-150kg/h  )Flow chart:
Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system

6. China standard industrial Voltage for pet food machine:

Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers' Local voltage according to different countries (400v 415v  480v....).

7. Machines Materials:

All the Animal food machines are made by stainless steel, this whole line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
 8. Datong Company Pet food pellet making machine/dog food pellet production line Technical Parameters:

Model	Installed power	Real power	Output	Dimension
SLG65	70kw	40kw	100-150kg/h	22000x1200x2200mm
SLG70	90kw	50kw	200-240kg/h	25000x1500x2200mm
SLG85	120kw	100kw	400-500kg/h	30000x3500x4300mm
SLG90	135kw	100kw	800-1000kg/h	30000x3500x4300mm
SLG115	165kw	115kw	1000-2000kg/h	30000x3500x4300mm
