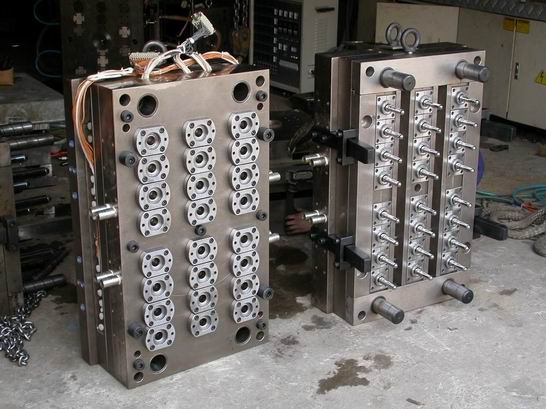

1) PET preform mould-A It's the classic PET perform mould with pneumatic valve gate system. -Cavity and core steel: S136H stainless steel, tempered with HRC55+/-2. -The plate of the mould: P20 with precision grinding machine with each plate thickness tolerance 0.015mm for a plate size 500x500x400mm. With HRC32-35 -Optimal cooling design and all the cooling system are Nickel plated. -All the components can be interchangable which express the high-tech or the sparts. -Mirror hand polishing for the core and cavity. -Adopted on the Turopean valve gate and hot runner system and technology. -Adopted temperature controller. -Can guarantee for 1000, 000 shot times.
2) PET preform mould-B (the second grade) -Adjustable automatic-lock system -Cavity and core steel: 2316 stainless steel, tempered with HRC53+/-2. -Mould base steel use: P20 with precision grinding machine with each plate thickness tolerance 0.015mm for a plate, with HRC32-35. -Optimal cooling design and all the cooling system are Nickel plated. -Mirror hand polishing for the core and cavity. -Can make Max. 48 cavities currently. -Can guarantee for 1000, 000 shot times running.
3) PET preform mould-B (the third grade) -Cavity and core steel: P20 stainless steel, tempered with HRC32-38 -Plate A and plate B steel: 45#stainless steel and Nickel plated. HRC27-28. -Can guarantee for 1000, 000 shot times running.
Hengyuan Mold & Plastic Factory that specialized in producing kinds of PET Bottle mould and kinds of cap mould in Zhejiang of China. Our factory is a Small and Medium-sized Enterprises. There are about 100 people include 10 engineers work here. We have been in mould maker line for over 15 years. In the years of exploring, we have abundant a lot of experience with special knowledge, We supply different moulds according to your specify inquirement and offer good after-sale services. Welcome to visit our factory! I think we will get the mutual benefit if we can do the business together.
Our major produts as follow:
1. Kinds of bottle, container, jar mould(include the preform mold and blow mold) Our mould adopt European pnuematic valve gate system and PI control system.
2. Kinds of cap injection mold. Our mold has the short cycle times (The water bottle cap mould 48cavites 28mm or 30/25 neck cap can be 5.5-6seconds per shot time. ), long work times(The guarantee of our mold is 10million shot times). Different parts of the mould use different material and hardess steel according to the action of the mould. Because different action will have less or more attrition on the mold. The material of our cap mold haveGermany 2316, 8407 2083, Switzerland S136, Austria M310, Japan DC11, W302. etc.
3. Kinds of daily-used products mold(include the fork/spoon/knife/container/box/handle/Mould).
4. Kinds of extrusion blow molds like 5L, 10L, 18L, 20L oil can molds.
5. The relative cap processing-line machine: The folding machine, slitting/cutting machine, lining machine.
