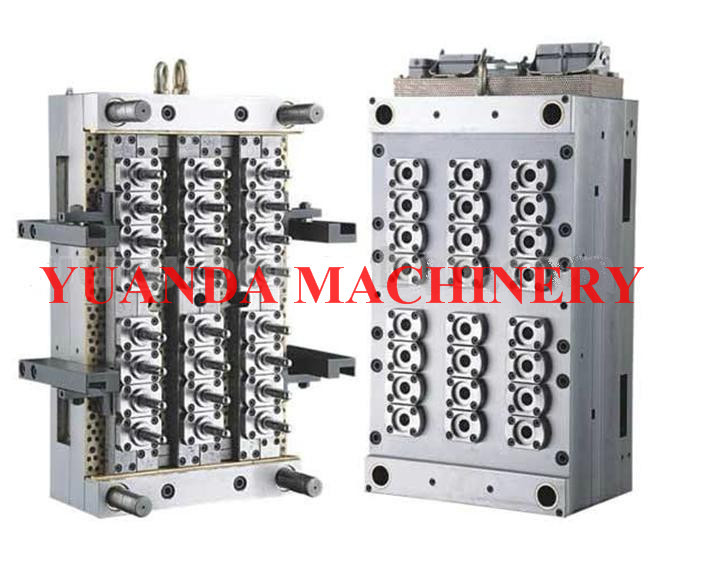

PET Preform Mould (24-CAVITY)

PET Preform Mould (24-CAVITY)
Price: Negotiable
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
PET preform mould
Product Name: 24 Cav Needle Valve of No-Cutting PET Preform Molds
Place of Origin: Huangyan China
Delivery Date: 1 Month
Productivity: 10 Sets/Month
Packing: Wooden
Transportation: By Sea
Function: For Producing Pet Preforms
Payment Type: T/T or L/C

24 cavity preform mould for the prefrom under 38mm neck size.
-The mold has balanced hot runner system with shut off valve gate, ensure there is no any stringing form on the injection gate of the performs.
-The cam roller design help the operator save the maintenance time of the molds.
-The weight of the preform such as 20g, cycle time is 18 Sec with general PET screw injection molding machine, It reaches13 Sec with 3 stage post cooling system.
Cooling System
-Spiral Water Cooling Way on cavity enhances mould cooling.
-Cooling system in neck and move neck plates brings an enhance cooling.
-Precise Distributary Plate distributes cooling water into cavity evenly, quicken preform cooling.
-Hot Runner Balance design ensures evenly force, uniform heating and identical preforms.
-Less energy cost and pressure lost.
-Lndependent cavity control system ensures nozzle temperature fluctuates within< 1
-Adopt imported Heating devices, Germany Hotset or Italy Rotfil.
Perfectly Balanced Hot Runner
-Hot runner with good balance ensures PET melt material running to each cavity and keep balanced pressure.
-The design of PET runnersensures minimum cutting force and IV lost.
-Reasonable heat distribution ensures stable AA content in all the cavities.
Cavities 17g PET preform 28g PET preform 47g PET preform
Dimension(mm) Weight(kg) Dimension(mm) Weight(kg) Dimension(mm) Weight(kg)
4 345*390*466 370 345*390*486 450 345*390*511 500
6 410*390*466 440 410*390*486 500 410*390*511 550
8 475*390*466 510 475*390*486 600 475*390*511 660
12 605*390*466 650 605*390*486 730 605*390*511 800
16 735*390*466 800 735*390*486 900 735*390*511 1000
20 865*390*466 950 865*390*486 1050 865*390*511 1150
24 775*500*490 1250 775*500*510 2000 775*500*535 2200
32 855*600*520 1850 855*600*540 2000 855*600*565 2200
48 955*720*520 2370 955*720*540 2500 955*720*565 2700
56 1085*720*520 2765 1085*720*540 2950
72 1085*900*550 3500 1085*900*570 3700
Prod Model: 24-CAVITY
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cavity: 24
Model: Hot Runner
Product Material: Steel
Shaping Mode: Preform Mould
Product: Pet Preform
YUANDA is one of the biggest manufacturers of Blow Molding Machine in China. YUANDA lie in Huang yan, Taizhou, Zhejiang, China. We are the member of Enterprise of China Plastics Processing industry Association, and professional manufacturing company of Two-steps PET BOPP Semi-automatic Blow Molding Machine, manual Preform feeding PET automatic blow and Aluminum Casting Mould. After over 10 years of efforts, we have obtained eight national patent techniques. Our company has been approved by the ISO9001 and CE certificate, furthermore, the quality of the machine is in sured by PICC.
