Preform style: Short tail, long tail, without tai/air valve
Core/cavity Steel.: S136, 2316, 2738, 718, 3Cr13, P20 etc.
1-72 cavity

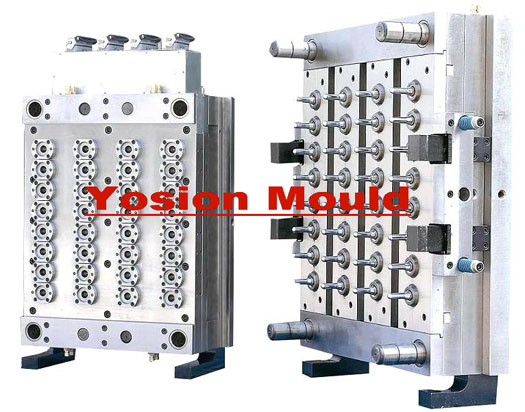

YOSION MOULD successfully made 72 cavities of 26g PET preform mould in 2008, we are keeping on R & D for preform moulding technologies, we will be the most profesional packaging mould manufacturer in China. Annually, we made more than 600 sets of various preform mould such like 5 gallon preform mould, wide mouth preform mould, water bottles preform mould, pet preform mould, PP preform mould, Jar preform mould.
No, of cavity |
12cavity |
16cavity |
24cavity |
32cavity |
48cavity |
72cavity |
Dimension of 18gpreform |
620*380*430 |
790*380*430 |
880*460*450 |
860*680*480 |
1050*680*550 |
1100*780*580 |
Weight(kg) |
630 |
810 |
1150 |
1750 |
2450 |
3100 |
Dimension of 28gpreform |
620*380*450 |
790*380*450 |
880*460*480 |
860*680*520 |
1050*680*580 |
1100*780*620 |
Weight(kg) |
660 |
850 |
1250 |
1900 |
2600 |
3350 |
Dimension of 40gpreform |
620*380*480 |
790*380*480 |
880*460*500 |
860*680*550 |
1050*680*620 |
1100*780*650 |
Weight(kg) |
690 |
890 |
1350 |
2000 |
2750 |
3500 |
Yosion Moulds Plant is a privately-owned enterprise specializing in manufacturing plastic injection moulds. We have many advanced professionals who can make 3D designing and technical drawings with CAD/ CAM/ CAE according to our customers' requirements.
