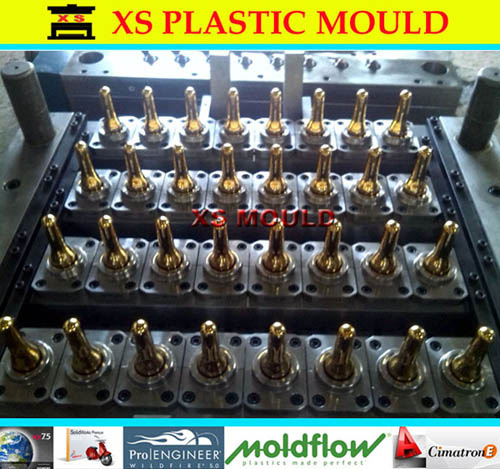

Product name: Preform mould
Item: XS-102
Details:
@ Moulds Name: Preform mould
@ Moulds cavity: 1, 2, 4, 8, 16, 32, 64, etc.
@ Moulds material: 2316, BeCu, ect.
@ Moulds life: 1, 000, 000shots
@ Runner system: Hot runner, hot plate, air sealed pin point valve gate hot runner
@ Demould system: Strip plate
@ Moulds running: Full automatical running.
@ Moulds features: Good cooling system, short cycle time, slider
@ Part material: PET, PC
1. Preform material
Mainly preform made with PET material, some made by PC material. PET usually used to produce package
Application products, such as mineral water bottle & beverage bottle. PC wide used to produce led covers.
PET:
Polyethylene Terephthalate (Polyester)
Processing PET
Deg C
MOLD
20 - 120
MELT
280 - 310
MAX TEMP
340
DRYING
135 - 160
INJECTION SPEED
Medium to High
PURGE
HDPE, PS
STRUCTURE
Crystalline / Amorphous
OPACITY
Clear or Opaque
PHYSICAL
Rigid Stable
SG
1.34
SHRINKAGE
2.1 - 2.5%
MELTING POINT
250
HDT
70 - 80
SERVICE TEMP
74
Description
PET resin belongs to the thermoplastic polyester classs of plastics. Currently, the
Fastest growing use is for food, beverage, and non food packaging
Applications.
Applications: PET is used in beverage, food and other liquid containers; Engineering
Applications, often in combination with glass fiber.
PC:
Processing PC
Deg C
MOLD
80 - 120
MELT
280 - 320
MAX TEMP
320
DRYING
100 - 120
INJECTION SPEED
Typically High
PURGE
HDPE, PMMA, GPPS
STRUCTURE
Amorphous
OPACITY
Transparent
PHYSICAL
Very Tough
SG
1.21
SHRINKAGE
0.2 to 0.8%
MELTING POINT
220
HDT
100-138
SERVICE TEMP
120
Description
Polycarbonate is strong, stiff, hard, transparent and maintains its properties over
A wide range of temperature and can be used in high temperature applications.
Applications include: Automotive headlamps, glazing, electrical appliance housings,
CD's, DVD's & medical applications.
2. Preform mould material.
A. We use 2316, etc. Stainless and hardened steel as the mould core and cavity material. We also can use
BeCu as the core and cavity according customer's request. BeCu as mould core and cavity can make the
Cooling more effective to shorten cycling time.
B. Mould base S45C steel. We can use LKM, etc. Standard mould base according customer's request.
3. Equipment for tooling preform mould.
Include cutting machine, fly cutting machine, grinding machine, EDW, lathe, drilling machine, etc. Core and cavity will be high
Polished to make sure the injection molded preform part with good surface finish.
4. Preform mould runner system.
As below picture, there are mainly three different type of gate for preform mould. We can make mould according customer's
Request on this.
5. PET preform mould video.
http://youtu.be/iTSTHtQK1nY
6. Package.
Wooden case. Export standard wooden case.
