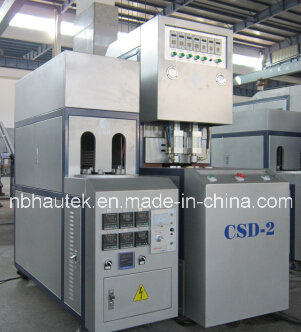

Semi-automatic Blow Molding Machine( 1 or 2 Cavity ) 1. Toggle mold clamping system provides high clamping force.
2. Inventional patent design heating channel with side-open stand convenient for heating lamps replacement and machine maintenance.
3. Semi-automatic operation, suitable for production of different shape of containers.
Model details :
SEMI-AUTOMATIC BLOW MOLDING MACHINES |
|
Item | Unit | TECHNICAL DATA |
CSD-2P/CSD-2 | CSD-3P/CSD-3 | CSD-2P-4 |
Max.Volume of Product | L | 2×2 / 1×3 | 2×2 / 1×7 | 1.5×4 |
Production Capacity | Pcs/h | 840-360 | 840-360 | 1300 |
Neck Size of Product | mm | <75 | <75 | 28-32 |
Useful Area of Mould Plate | mm | 380×290 | 380×290 | 560×300 |
Max.Mould Thickness | mm | 200 | 280 | 280 |
Min.Mould Thickness | mm | 120 | 170 | 170 |
Mould Stroke | mm | 135 | 210 | 265 |
Clamping Force | kn | 80 | 80 | 100 |
Stretching Stroke | mm | 410 | 410 | 500 |
Working Pressure | Mpa | 1.0-1.25 | 1.0-1.25 | 1.0-1.25 |
Blowing Air Pressure | Mpa | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 |
Power of Main Blower | kw | 0.1 | 0.1 | 0.15 |
A | 0.5 | 0.5 | 0.75 |
Power of Preheater | kw | 12 | 24 | 24 |
A | 18 | 36 | 36 |
Weight of Main Blower | kg | 690 | 800 | 1500 |
Weight of Preheater | kg | 280 | 380 | 380 |
Measurement of Main Blower | mm | 1520×580×1750 | 1830×580×1800 | 2300×800×2000 |
Measurement of Preheater | mm | 1350×485×1450 | 1450×700×1350 | 1800×750×1500 |
Bottle blowing mold :

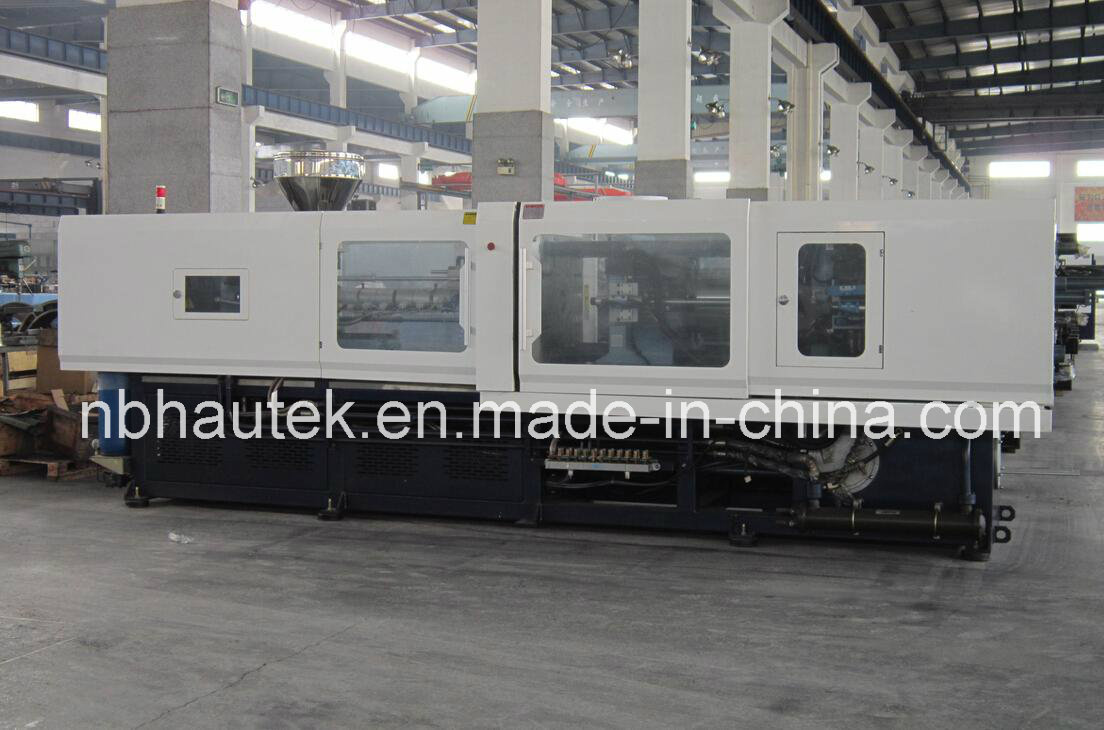

PET Preform injectio molding machine :

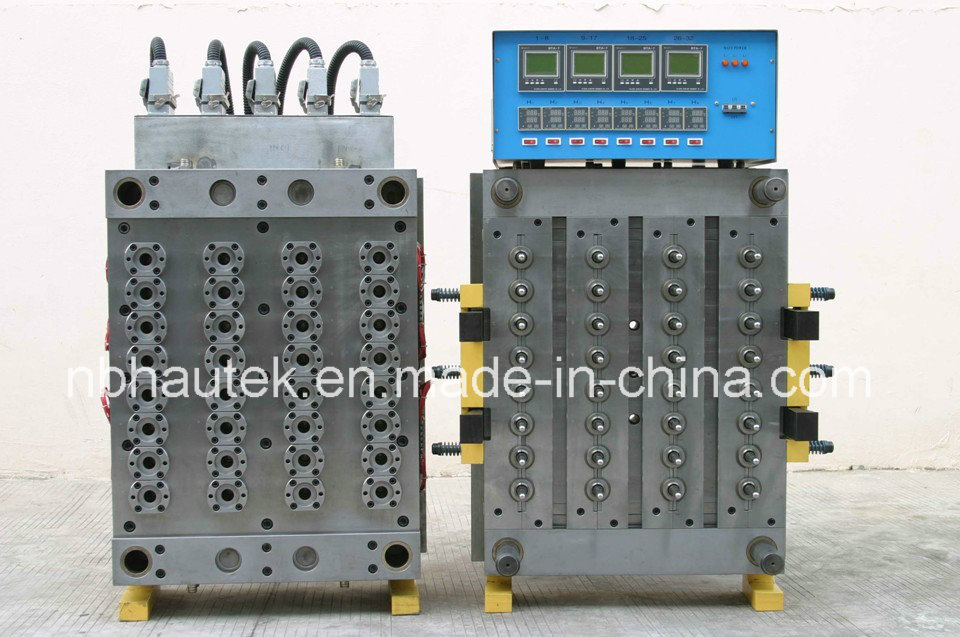

Injection mold for PET Preform :
Ningbo Hautek Industries Co., Ltd. Based on more than 10 years of professional machinery exporting experience, with rich knowledge of beverage project, bottling technology and bottle making machinery, HAUTEK focuses on high and middle level international market, major in beverage production line design and manufacturing, also supply relative assorted equipment. Supported by strong technical team, we offer high quality machine, good service to customers and give prompt response. We have had success in exporting and installation many beverage production lines abroad.
We manufacture and supply:
*Water treatment unit, and RO system
*Water treatment equipment and filling line
*Carbonated beverage equipment and filling line
*Juice (and tea) beverage production line and filling line
We also design and supply for:
*PET preform production line, including injection molding machine, preform mold, and auxiliary equipment.
*PET bottle blowing line, including blow molding machine, blowing mold and auxiliary equipment.
*Plastic molds etc.
