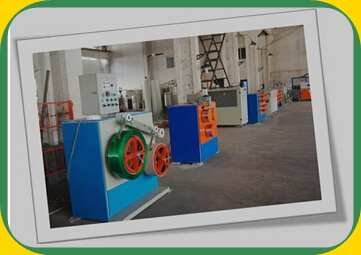

Pet Strap Production Line
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
SKY WIN Technology Co., Ltd. is a high-tech joint-stock enterprise which combines research, manufacture and sales of WPC (wood-plastic composites) extrusion machines in China.
In the past 10 years, many experts in SKY WIN have concentrated on WPC extrusion lines (granulators, extruders, upstream and downstream machines, etc.) and now the company has accumulated a lot of experience on WPC equipment, molds, technical formula, and products.
SKY WIN wood-plastic machines are sold to over 200 customers in China, and over 30 customers in foreign countries, such as Itly, Russia, Poland, Singapore, Thailand, Saudi Arabia, UAE, Honduras, etc.
1. Main parameters
Band number |
Two |
Band specification |
(W×L) 9.5×0.55 10.5×0.60 12×0.60 14×0.60 16×0.60 16×0.80 16×0.90 19×0.90 (mm) |
Output |
150kg/h |
Water flux |
0.6 m3/h |
Water pipe diameter |
3/2″,water temp.<30ºC |
Compressed Air flux |
0.25 m3/min |
Compressed Air pressure |
0.6Mpa |
Total Power |
215kw |
The length of production line |
30-35m |
Power |
AC380V 50HZ three-phase four-wire system
(Chinese standard) |
2. Equipment List
NO. |
Name |
Quality |
1 |
CSG2000 Dehumidifying Drier |
1 |
2 |
ZD400 Screw Feeder |
1 |
3 |
SJ90/30 Single Screw extruder |
1 |
4 |
Mold |
1 |
5 |
Water tank |
1 |
6 |
Equipment for water removal |
1 |
7 |
Heat setting box |
1 |
8 |
Mold temperature controller |
2 |
9 |
Stretcher 1/ Stretcher 2 |
1 |
10 |
Stretcher 3 |
1 |
11 |
Cooling water machine |
1 |
12 |
Hauling machine |
1 |
13 |
Double disk winder |
2 |
14 |
Spare parts |
1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application Material: |
Pet |
| Extruder Model: |
90/30 |
| Output: |
150kg/H |
| Total Power: |
215kw |
| The Length Of Production Line: |
30-35m |
SKY WIN Technology Co., Ltd. is a joint-stock enterprise which combines research, manufacture and sales of WPC (wood-plastic composites) machines and profiles.
SKY WIN was one of the earliest factories which manufactured WPC machines and now is the only which specially produces WPC machines in China.
In the past 10 years, many experts have concentrated on WPC machines (granulators, extruders, and auxiliaries, etc. ), and now the company has accumulated a lot of experience on WPC equipment, moulds, technical formula, and products.
SKY WIN Honor:
1. ISO9001: 2000 QULITY MANAGEMENT SYSTEM CERTIFICATE has been passed; CE certificate for WPC extrusion lines has been approved; SKY WIN machines are certified as "International Advanced" by China government; SKY WIN participated as the drafter of China National Standard on WPC floorings.
2. SKY WIN has cooperated with many universities and research institutes. Now it is "Practice and Internship Facility" of Northeast Forestry University and Nanjing Forestry University.
3. WPC One-step Machines(patent) are technology advanced and exceptional in China or even in the world. SKY WIN WPC equipment has got 4 patents, and now is brought within in China Advanced Products Catalogue.
SKY WIN Market: Now SKY WIN machines for WPC are sold all over China, as well as many foreign countries and regions, such as Singapore, Italy, Mexico, Thailand, Malaysia, Indonesia, Taiwan, etc...
SKY WIN Service: Turn Key project, including WPC project feasibility analysis, workshop and electric facilities design, machine installation and test, staff training, formulation, mould adjust and test, after-sale service, etc...
SKY WIN Wood-plastic Machine Series:
1. Outdoor use (PE/PP+65%wood fiber):
Wood-plastic one-step profile extrusion lines,
Wood-plastic one-step sheet extrusion lines,
WPC one-step plate extrusion lines,
WPC one-step pipe extrusion lines,
WPC granulator for pellets (two steps),
WPC conical twin-screw extrusion lines,
WPC single-screw extrusion lines (two steps).
2. Indoor use (PVC foam + wood):
WPC foamed profile extrusion lines,
WPC unit-board door extrusion lines,
WPC (PVC + wood) crust foamed plate extrusion lines,
WPC three-layer foamed plate extrusion lines.
3. Upstream and down stream machines for WPC:
Mixing unit (for wood powder and additives),
Crusher (for WPC waste products for recycling),
Powder mill (for plant fiber),
Airflow dryer (for wood powder),
WPC polisher(for finished profiles roughly like real wood)
WPC embosser (for finished profiles),
WPC hot-stamping machines.
4. Other machines:
Waste milk-box pieces extrusion lines,
Waste electric-board powder extrusion lines,
WPC building-template production lines,
High-strength WPC(ABS, PS, PET) lines,
SKY WIN would always supply clients with high-tech, stable-performance, professional property, and exceptional quality WPC machineries. We are trying to be No. 1 in China WPC machinery area, and wish a great future with the clients together.
