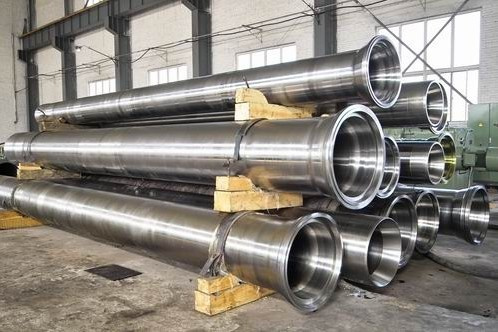

Plain End Pipe Mould
Material: DIN17350, DIN 21CrMo10, 35CrMo and so on.
Smelting Method: Electric Arc Furnace + Refining Furnace(Vacuum Rrc Degassing).
1. Size: DN 80MM-DN 1200MM Mould for Forged Pipe Mould.
2. Material Grade:
2.1 The steel used for the mould: DIN17350, and the steel: 21CrMo10.
2.2 Steel-making method: Basic arc furnace and ladle refining furnace refining melted (vacuum degassed)
2.3 Ultrasonic flaw detection
The forging of the mould will be ultrasonically tested as per JB/T1581-1996, and the grade of the detection is in the following:
A: Without bursts, crack, shrinking hole and other defects.
B: The defect with size within OD2mm can be ignored.
C: Individual defect with diameter of φ 2~φ 4mm is permitted, and the distance of the neighboring
Defects should be more than the 10 times of the bigger one's. For 100cm2's area, the quantities of
The defects with diameter of φ 2~φ 4mm should not exceed 3.
D: There should not have compact district.
Besco Steel Works Limited covers an area of 18000 square meters, We have forging, mill roll, large machining, heat treatment four branch factory and variety of heat treatment equipment: Heating furnace; Annealing furnace; Induction quenching equipment; Deep cold equipment, vibration aging machine etc. With capacity of long 16000mm; Diameter Φ 1450mm; Weight 15000KG; And can reach the hardness hrs 102. Modern heat treatment furnaces enabling precise control of mechanical and physical properties. Our company have more than 300 staff, senior technical personnel more than 50 people among them. The company has a central laboratory, for all kinds of materials, the chemical composition of the microstructure, physical properties of testing and analysis, to ensure the quality of products.
