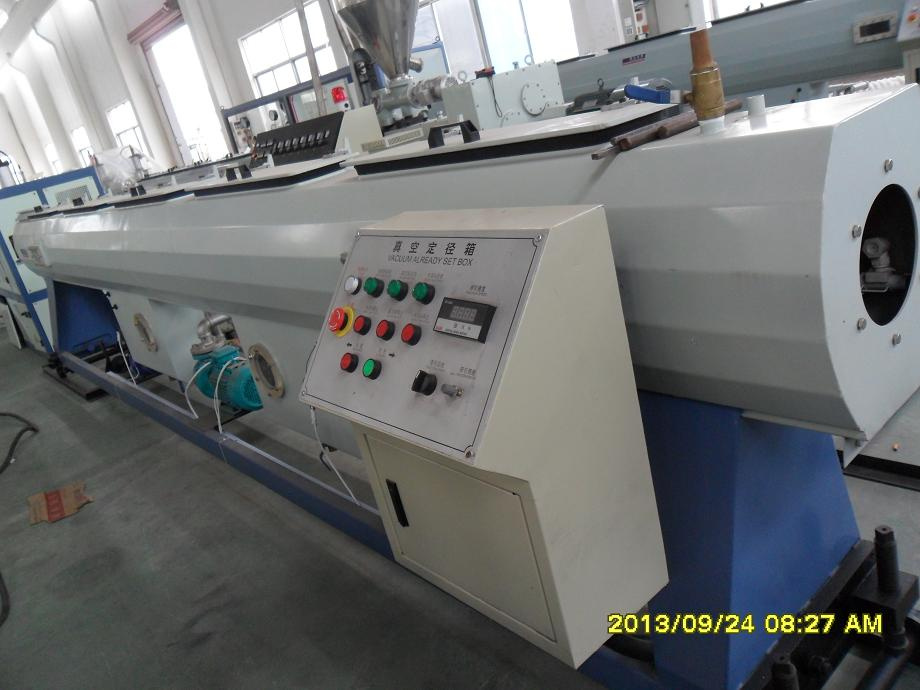

Pipe Extrusion Line - PVC, PE HDPE
| Price: |
US $ 5000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P |
∮63-∮200 mm HDPE Pipe Extrusion Line| No. | Name | Specification | Quantity |
|
| 1 | Single-screw extruder | SJ 75/33 | 1set |
|
| 2 | Automatic loader | ZJ400 | 1set |
| 3 | Hopper dryer | STG-U250 | 1set |
| 4 | Die head and mould | ∮63-∮200 mm | 1set |
| 5 | Stainless steel vacuum calibration tank | ∮200 x 6 m | 1set |
| 6 | Stainless steel spray-cooling tank | ∮200 x 6 m | 1set |
| 7 | Three-claw Caterpillar haul-off | 4 kw | 1set |
| 8 | Dust-free cutter | ∮63-∮200 mm | 1set |
| 9 | Stacker | ∮110 x 6 m | 1set |
| 10 | Single-screw marking extruder | SJ 25/25 | 1set |
| 11 | Single-winder | ∮63-∮110 mm | 1set |
The main technical parameter: 1. SJ 75/33 Single-screw extruder| Screw diameter | 75mm |
| Rotating speed of screw | 1-100r/min |
| L/D | 33:1 |
| Motor power | 75kw |
| Heating power | 40kw |
| Extrusion capacity | 225kg/h |
| Center height | 1100mm |
| Extruder speed adjusting way | ABB Frequency conversion |
| Temperature controller | OMRON |
| Barrel temperature adjusting way | Heating: cast aluminum heater
Cooling: 4 sections by air |
| Material of screw and barrel | 38CrMoAlA Azotizing on surface 0.4~0.7mm
Rigidity: above 700 HV |
| Drive way | Hard tooth face gearbox |
| Weight | 3300 kg |
| Dimension | 4250 x 1600 x 1700 |
2. ZJ 400 Automatic loader| Max. wind pressure | 13000 pa |
| Max. air volume | 2.8 m3/min |
| Power of motor | 1.5 kw |
| Rotating speed of motor | 2800 r/min |
| Transportation capacity | 400 kg/h |
| Volume of aspirating hopper | 15/10 L |
| Inter diameter of transfer soft tube | 40 mm |
| Inter diameter of aspirating soft tube | 50/40 mm |
| Method of loading | Vacuum aspirating |
| Wight | 90 kg |
3. Hopper dryer STG-U250| Total cubage | 250L |
| Heating power | 9 kw |
| Feeding amount | 150 kg |
| Blower power | 0.37 kw |
| Material | Stainless steel |
| Temperature adjusting | Electron temperature adjuster |
| Weight | 95kg |
| Dimension | 1650 x 650 x 1650 mm |
4. Die head and mould| Specification | ∮63-∮200mm |
| Material | 40Cr forged steel Chrome plated
Calibration ring: cast copper |
5. Stainless steel vacuum calibration tank| Power of vacuum pump motor | 4kw x 2 water-ring vacuum pump |
| Power of water pump | 4kw x 2 |
| Power of lengthways motor | 1.5 kw cycloid |
| Material | Stainless steel |
| Position and method of cooling spray | 4 sets spray |
| Material and quantity of muzzle | ABS x 200 pcs. |
| Dimension | 6000 x 650 x 1400 mm |
6. Stainless steel spray-cooling tank| Method of cooling | Spray |
| Power of water pump | 4kw |
| Material and quantity of muzzle | ABS x 200 pcs. |
| Overall size | 6000 x 600 x 1400 mm |
7. Three-claw Caterpillar haul-off| Speed of traction | 0.5-5 m/min |
| Power of haul-off motor | 4 kw |
| Effective length of pedrail | 1000 mm |
| Timing method of haul-off motor | Frequency conversion |
| Center height | 1000 mm |
| Overall size | 1200 x 700 x 1400 mm |
| Pressure of pressed air | ≥0.6 MPa |
8. Dustfree cutter| Cutting range | ∮63-∮200mm |
| Power of cutting motor | 4 kw |
| Air pressure | ≥0.6 MPa |
| Cutting way | By saw |
| Dimension | 1300 x 800 x 1600 mm |
9. Stacker | Type | Pneumatic |
| Length | ∮110 x 6 m |
| Control method | Automated |
| Air pressure | ≥0.6 MPa |
| Dimension | 6000 x 800 x 1200mm |
10. Co-extruder SJ25/25 (marking)| Diameter of screw | 25mm |
| L/D | 25:1 |
| Power of main motor | 2.2kw |
| Rotating speed of screw | 0-30rpm |
| Heating power | 3kw |
| Center height | 1000mm |
| Timing way of mainframe | ABB Frequency conversion |
| Temperature control of barrel | Heating: cast aluminum heater
Cooling : .2 sections wind cooling |
| Material of screw and barrel | 38CrMoAlA Nitrided on surface |
11. Single-winder| Coil diameter | 600 mm |
| Winding speed | 0.5-10 m/min |
| Pipe size | ∮63-∮110mm |
| Air pressure | 0.6 Mpa |
