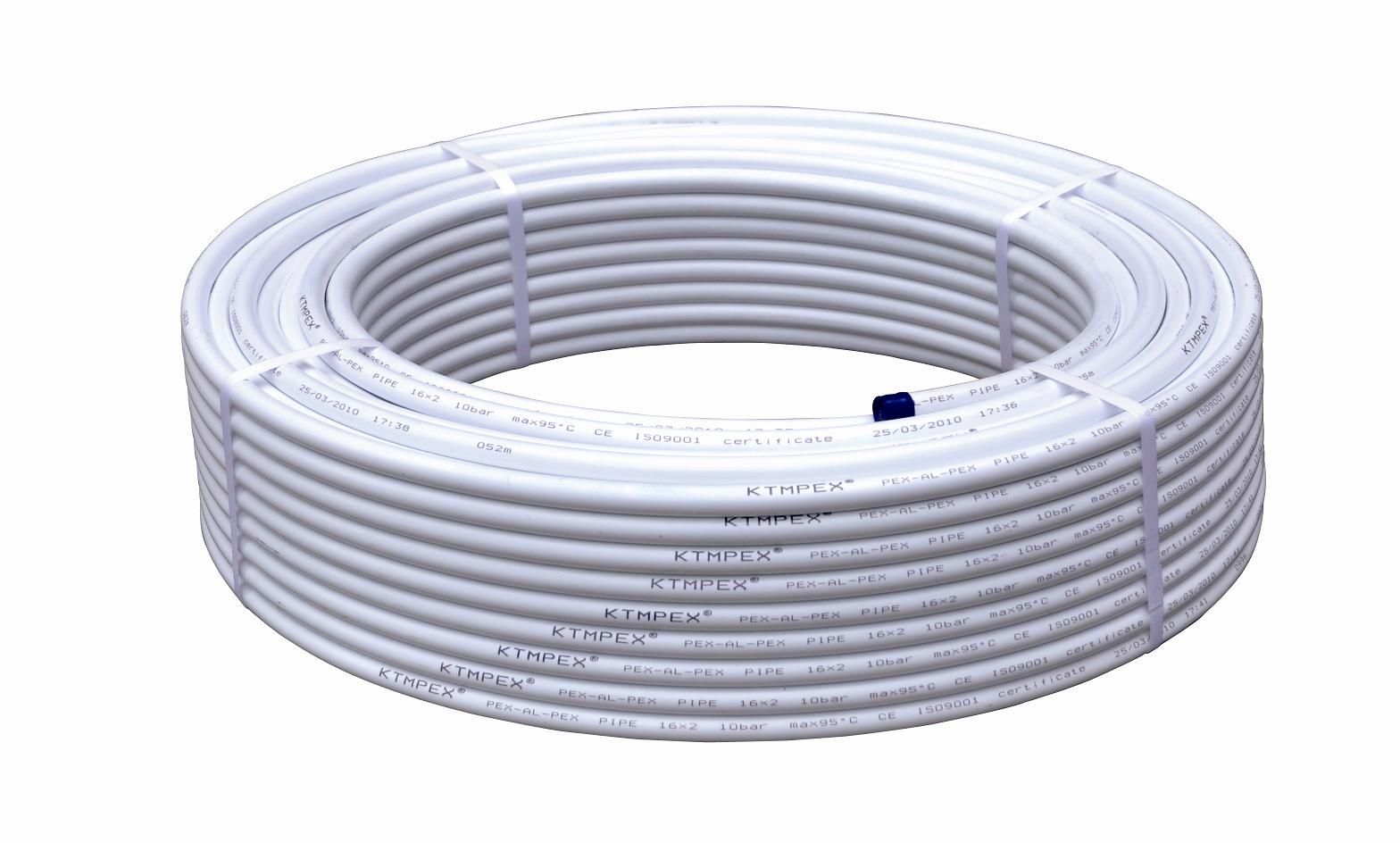

Pex-al-pex pipe's inner and outer layer are both of pex material, which is clean, non pollution and smooth. Pex-al-pex pipe's MID-layer is aluminum belts, which can 100% anti-leakage of gas with all of metal strong points and without any of their weak points. NHL pex-al-pex pipe applies extra-sound wave contact-melting aluminum belt, 5-layer co-squeezing mould head, pressure-adding inner pipe, adding and pressure-adding in the squeezer, the material is made into flowing style to spout out of the opening mould and squeezed into demanded shape, which technology is used the main equipment, ie. Squeezer. Besides, the needed supplementary equipments are machine-head opening mould, cold-shape setter, puller, cutter, up-batcher, etc.
SPECIFICATION OF PEX-AL-PEX PIPE:
1. Colors of pex-al-pex pipe: White, yellow, red and customization available
2. Certificates of pex-al-pex pipe: ISO9001: 2000, CE certificate.
3. Standard of pex-al-pex pipe: ASTM F 1281
4. Sizes of pex-al-pex pipe: 1216, 1418, 1620, 2025, 2632.
5. Packing of pex-al-pex pipe: To be packed in rolls with 100 meters or according to customers requirements.
6. Working temperature: 95 Celsius degree, Max temperature can reach 110 Celsius degree.
7. Working pressure: PN1.0Mpa
Zhejiang Haizhu Pipe Co., Ltd. is specialized in the design and manufacture of overlap-welding pex-al pipes, laser-welding pex-al pipes, brass compression fittings, brass thread fittings and press fittings.
We possess imported the 21st international advanced production lines and all-computer control system. Covering a ground area of 10, 000 square meters, HaiZhu possesses 178 employees (including 52 professional technicians).
We strictly follow the ISO9001 quality management system. And we have passed the SKZ and the CE certification. Based on our complete after-sales services, we spread our high quality products to all over the world.
Our daily production capacity of pipes is 200, 000 meters.
Our daily production capacity of fittings is 5~8 tons.
Our common business practice is as follws:
(1) We supply OEM service.
(2) MOQ is 20ft container.
(3) Payment terms is 30% advance payment by T/T, 70% paid against B/L copy by T/T. Or L/C at sight.
(4) we do standard export packing or as per clients' requirements.
(5) Delivery time is within 30days after recieving the deposit.
Dedicated to self-improvement, we will manage our company based on high technology, high quality and high standard. We wish to establish friendly business relationships with you to enjoy a share of mutually profitable business.
