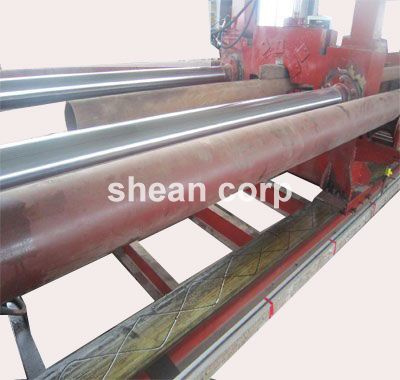

Pipe Pushing Bending Machine
Pipe Pushing Bending Machine is designed for producing various specification carbon steel, stainless steel benders. It also can be used to produce square benders, bending bar, channel steel, I-beam steel pipe.
Working principle of Pipe Pushing Bending Machine: Put the raw material pipe on the pipe bending machine with a clamping roller clamp, put induction heating coil in front of the raw steel, steel front using steel plate clamp, and fixed on the bend radius arm. Activate the cooling water pump, start medium frequency power, make the raw material tube local heating, start bending machine hydraulic system, then the raw material tube can slowly moving forward, it starts bending.
Shean also manufacture pipe expanding machine, elbow forming machine, hydraulic press, tee machine, hot induction heating equipment.
|
Serial number |
Max diameter |
Max thickness |
Stroke of cylinder |
Quantity of cylinder |
Max thrust |
|
(mm) |
(mm) |
(mm) |
(piece) |
(t) |
|
|
|
|
|
|
|
1 |
1420 |
20 |
6500 |
4 |
670 |
|
2 |
1220 |
20 |
6500 |
4 |
600 |
|
3 |
1020 |
20 |
6500 |
4 |
500 |
|
4 |
820 |
20 |
6500 |
4 |
400 |
|
5 |
720 |
20 |
6500 |
4 |
320 |
|
6 |
630 |
20 |
6500 |
2 |
300 |
|
7 |
530 |
14 |
6500 |
2 |
160 |
|
8 |
426 |
14 |
6500 |
2 |
130 |
|
9 |
325 |
14 |
6500 |
2 |
84 |
|
10 |
219 |
12 |
6500 |
2 |
65 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
