Piping Elbow Dimensions
Shean(cangzhou)corp ltd are a professional manufacturer of Piping Elbow Dimensions, seamless steel bend andreducing tee with high quality. All products get lots of goood evaluation.

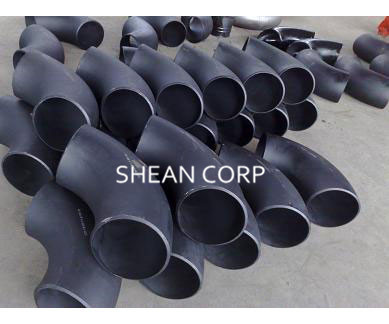

Piping Elbow Dimensions is made by hot pushing. The joint type is connecting with pipe directly with bevel ends, application for gas, petroleum, water pipeline etc.
Except pipe fittings, we also supply medium frequency elbow machine, pipe expanding machine and bending machine.
Shean(cangzhou)corp. Ltd Piping Elbow Dimensions can face different requirements, welcome send inquiries to us. Special design available All the production process are made according to ISO9001: 2000 strictly.
Nominal pipe size |
Outside Diameter at Bevel |
Center to End |
Center to Center |
Back to Faces |
45° Elbows |
90°Elbows |
180°Return |
H |
F |
P |
K |
DN |
INCH |
Series A |
Series B |
LR |
LR |
SR |
LR |
SR |
LR |
SR |
15 |
1/2 |
21.3 |
18 |
16 |
38 |
- |
76 |
- |
48 |
- |
20 |
3/4 |
26.9 |
25 |
16 |
38 |
- |
76 |
- |
51 |
- |
25 |
1 |
33.7 |
32 |
16 |
38 |
25 |
76 |
51 |
56 |
41 |
32 |
11/4 |
42.4 |
38 |
20 |
48 |
32 |
95 |
64 |
70 |
52 |
40 |
11/2 |
48.3 |
45 |
24 |
57 |
38 |
114 |
76 |
83 |
62 |
50 |
2 |
60.3 |
57 |
32 |
76 |
51 |
152 |
102 |
106 |
81 |
65 |
21/2 |
76.1(73) |
76 |
40 |
95 |
64 |
191 |
127 |
132 |
100 |
80 |
3 |
88.9 |
89 |
47 |
114 |
76 |
229 |
152 |
159 |
121 |
90 |
3 1/2 |
101.6 |
- |
55 |
133 |
89 |
267 |
178 |
184 |
140 |
100 |
4 |
114.3 |
108 |
63 |
152 |
102 |
305 |
203 |
210 |
159 |
125 |
5 |
139.7 |
133 |
79 |
190 |
127 |
381 |
254 |
262 |
197 |
150 |
6 |
168.3 |
159 |
95 |
229 |
152 |
457 |
305 |
313 |
237 |
200 |
8 |
219.1 |
219 |
126 |
305 |
203 |
610 |
406 |
414 |
313 |
250 |
10 |
273 |
273 |
158 |
381 |
254 |
762 |
508 |
518 |
391 |
300 |
12 |
323.9 |
325 |
189 |
457 |
305 |
914 |
610 |
619 |
467 |
350 |
14 |
355.6 |
377 |
221 |
533 |
356 |
1067 |
711 |
711 |
533 |
400 |
16 |
406.4 |
426 |
253 |
610 |
406 |
1219 |
813 |
813 |
610 |
450 |
18 |
457.2 |
478 |
284 |
686 |
457 |
1372 |
914 |
914 |
686 |
500 |
20 |
508 |
529 |
316 |
762 |
508 |
1524 |
1016 |
1016 |
762 |
550 |
22 |
559 |
- |
347 |
838 |
559 |
NOTE: 1) Do not use the figures in the parenthesis as far as possible 2) please first select A series |
600 |
24 |
610 |
630 |
379 |
914 |
610 |
650 |
26 |
660 |
- |
410 |
991 |
660 |
700 |
28 |
711 |
720 |
442 |
1067 |
711 |
750 |
30 |
762 |
- |
473 |
1143 |
762 |
800 |
32 |
813 |
820 |
505 |
1219 |
813 |
850 |
34 |
864 |
- |
537 |
1295 |
864 |
900 |
36 |
914 |
920 |
568 |
1372 |
914 |
950 |
38 |
965 |
- |
600 |
1448 |
965 |
1000 |
40 |
1016 |
1020 |
631 |
1524 |
1016 |
1050 |
42 |
1067 |
- |
663 |
1600 |
1067 |
1100 |
44 |
1118 |
1120 |
694 |
1676 |
1118 |
1150 |
46 |
1168 |
- |
726 |
1753 |
1168 |
1200 |
48 |
1220 |
1220 |
758 |
1829 |
1219 |
|
|
|
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
