DESCRIPTION
TRUSUS acoustic perforated gypsum board is designed on the basis of helholtz resonance theorem,After perforated, the holes,board and the wall make up of many resonant cavities,when air molecules pass the holes,the resonnt cavities will consume large quantities of sound energy.
SPECIFICATION
Length (mm): 2400/2440 /3000
Width (mm): 1200/1220
Thickness (mm): 9/9.5/12/15/18
Edge: Tegular &Square
FEATURE
1.Green products
2. Light weight in unit acreage
3.High edge rigidity
4.Strong nail pull resistance
5.Smoothness
6.Type variety
APPLICATION
TRUSUS acoustic perforated gypsum board is one of the best sound absorption products,it ie widely used in office,cinema,church,hospital.school and so on.
PRODUCT
NOTES
Trusus Gypsum Plasterboard is available to be produced the following dimensions range according to customer requirements: Thickness 8.0-25mm; Width 1200-1250mm; Length 1500-4200mm. Both Metric and Imperial systems are accept.
INSTALLATION
OUR SERVICE
TRUSUS TEAM guarantees ' TRUSUS ' as following
Trust us from heart cooperation
Reasonable price
Unique quality
Schedule delivery on time
Updated technology and equipment
Service warmly
Feel free to contact us if you would like to know more details, we will reply you ASAP, thanks a lot !

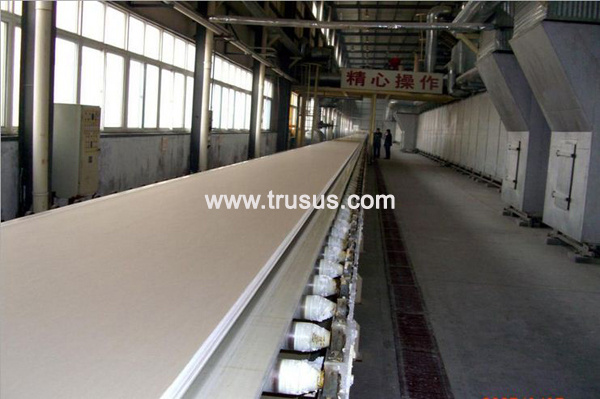

Welcome to visit our factory
|
Item |
Standard |
Test Value |
|
Rupture Load(N) |
Thickness 9.5mm |
Vertical |
≥ 360 |
440 |
|
Horizontal |
≥ 140 |
205 |
|
Thickness 12mm |
Vertical |
≥ 500 |
590 |
|
Horizontal |
≥ 180 |
212 |
|
Dimension Difference(mm) |
Length |
-6_ 0 |
-0.1_ 0 |
|
Width |
-5_ 0 |
0 |
|
Thickness 9.5mm |
± 0.5 |
-0.1_ 0 |
|
Thickness 12mm |
± 0.6 |
-0.1_ 0 |
|
The Stability of Meeting Fire (For Fireproof Gypsum Board) |
Not Less Than 20min |
> 20min |
|
Cater-corner Length Difference MM |
≤ 5 |
0-1 |
|
Inner Irradiation Ratio |
I Ra ≤ 1.0 |
I Ra < 1.0 |
|
Outer radiation Ratio |
I γ ≤ 1.3 |
I γ < 0.1 |
|
Weight per unit (kg/m ² )-9.5thickness |
≤ 9.5 |
7.7 |
Trusus Building Materials Manufacturing Co., Limited is an 'AUDITED SUPPLIER' presented by SGS, which is approved by ISO certification and CE mark, and it is a large enterprise with 6 factories in China, and integrates research & development, production and sales. It covers an area of approximate 140, 000sqm. Has a great number of professional and advanced production technology and equipment.
TRUSUS is a professional manufacturer of following products:
MGO board, gypsum board, perforated gypsum board, PVC gypsum ceiling tiles, calcium silicate board, cement fiber board, fiber cement siding board, mineral fiber board, aluminum ceiling, galvanized steel coil(PPGI), Stone coated metal roof tile, T-grid, steel channel and so on.
TRUSUS TEAM guarantees ' TRUSUS ' as following:
Trust us from heart cooperation
Reasonable price
Unique quality
Schedule delivery on time
Updated technology and equipment
Service warmly
So far, we have exported to more than 60 countries and regions with our high quality and best service. With the trust and support from our business partners, TRUSUS TEAM has been working hard with advanced technology and new equipments for better serving customers, We also would like to sincerely cooperate with the partners in a win-win way. Last but not least, TRUSUS TEAM is striving toward to a global brand of 'TRUSUS'.
Welcome to TRUSUS! Trust us from heart cooperation!
