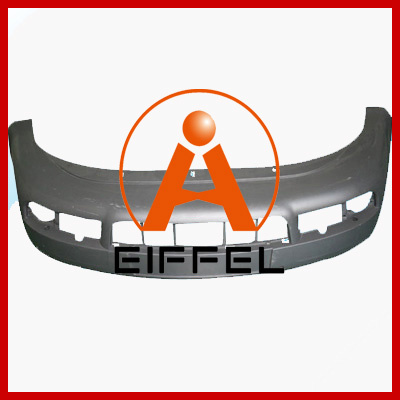

Plastic Auto Part Mould
Brand Name LianFeng
Model Number LF-A-a-001
Shaping Mode Plastic Injection Auto Part Mould
1. Mould steel Steel 45#, 50#, 718, 2083, etc.
2. Plastic Material ABS, PP, PE or as per customer requirement
3. Mould life 500, 000 shots or as per customer requirement
4. Product Size As per customer requirement
5. Runner Hot/cold
6. Cavity Single/multi
7. Design software UG, PROE, CAD, CAXA etc.
8. Advanced CNC machining centers, EDM machine, wiring machine, grinding machines, lathes, drilling, injection molding machines, and other large and medium-sized imported equipment alike.
Manufacturing Processes
Step 1 Mapping and Surveying
Step 2 2D&3D date drawing
Step 3 Machining( CNC, Drilling, Milling, EDM, WDEM, Engraving and Die Spotting)
Step 4 Assembly
Step 5 Mold Trial
Step 6 Mold Modification
We have a lot of experience in making plastic mould(injection mould), such as auto part mould, household appliance mould, ATV mould, daily necessity mould, turnover box mould, plastic crate mould, plastic pallet mould, and we can also manufacture finished product.
|
Main Technique Parameters |
Cavity/Core
Material |
718H, P20, NAK80, 2316 |
|
Product Material |
ABS, PC, PP, PVC, POM, PMMA, PS, PE, PET, Rubber, Silicone, PA, PBT, PEI, etc. |
|
Base |
LKM or by requested |
|
Structure |
Double color injection mould, Solid Mould, Insert Mould, Mould with Slide, Mould with Lifter |
|
Runner System |
Hot runner, Cold runner |
|
Cavity |
Single cavity, multi cavity by requested |
|
Finish |
Corrosion word, Mirror finish, Brushed |
|
Longevity |
0.5-1 million shots |
|
Mould standard |
HASCO, DME, MISUMI, or by requested etc. |
|
Software |
CAD, Pro-E, UG, etc |
|
Tolerance |
± 0.02mm |
|
Design Time |
3-7days |
|
Sample time |
3-7days |
|
Main Technique |
Milling, Grinding, EDM, Wire-cutting, Engraving, CNC, and 2.5 Dimension test, etc. |
|
Production time |
2-7 weeks, depends on mould structure |
|
Packing |
Wooden case, PE, or by request |
Taizhou Eiffel Mould&Plastic Co., Ltd is located in the beautiful coastal city---Huangyan, Zhejiang. Huangyan has got a very long history in mould making, and it has been granted the name of Mould Town of China. The city is next to Luqiao, which enjoys the fame of Kingdom of Plastics. Under such convenient environment, Eiffel has many advantages in its development.
Eiffel was founded in 1992 whose predecessor is Zhejiang Huangyan Lianfeng Plastic Mould Factory. The organization focuses on the design and manufacture of all kinds of plastic moulds such as auto part moulds, household moulds, logistics moulds, and home appliance moulds etc...Eiffel emphasizes on the product research and development, and has introduced advanced CNC machining centers, EDM machine, wiring machine, grinding machines, lathes, drilling, injection molding machines, and other large and medium-sized imported equipment alike, and we have adopted CAD/CAM/CAE techniques from design to manufacture. With so many years' development, we have accumulated abundant experience and rich human resources. Eiffel has developed at high speed and has gained great popularity in mould industry.
