Plastic Blowing Mold Machine

Plastic Blowing Mold Machine
Price: US $ 10000-15000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Plastic blowing mold machine/PE/PP/HDPE/LDPE/PP

Bottle Types could be produced:

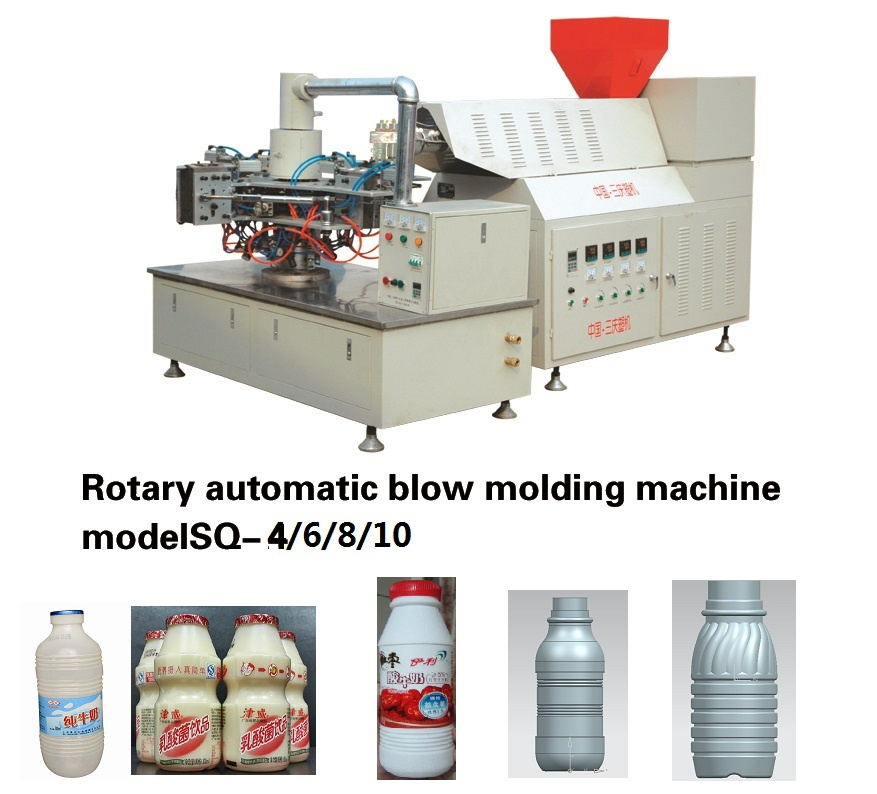

This rotational blow molding machine is suitable to produce ice pop bag, ice popsicle bag, ice lolly bag, PE/PP milk bottle, yogurt bottle, fruit milk bottle.

Material could be used:
PE/PP/HDPE/LDPE

Style of Machine:
Rotational horizontally, 4 molds, 6 molds, 8 molds available.
Sanqing has the best quality of rotational blow molding machine.

Work Speed:
Very fast, it could reach 2000-2500 bottles per hour

Save Electricity:
No hydraulic used, it is pneumatic machine, so it save electricity.

Deflashing:
Deflashing device is provided, it could deflash the bubble very quickly.

Video is Ok to provided upon request.
Model
Parameters
4 work station 6 work station 8 work station
Max. Volume of Bottle(ml) 1000 1500 1500
Max. Dia. Of Bottle(cm) 7 10 10
Productive capacity(pcs/hour) 500-7000 1000-8000 1500-8000
Mould Size (L, W, H) (mm) 118x120x350 118x120x350 118x120x350
Motor Power(KW) 0.75 1.1 1.5
Air Consumption(m3/Min) 0.4
Product Weight(KG/Hour) 400 800 1000
Dimension(L, W, H)(mm) 1400x1000x1400 1600x1200x1500 1900x1700x1400
Applicable Raw Material PE, PP, PVC
Speed regulating method Frequency control of motor speed
Prod Model: SQ-4/6/8
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Sq-4/6/8
Material Aplicable: PE/PP/LDPE/HDPE
Production Speed: 2000-2500 PCS Per Hour
Automation: Automatic
Making Method Of Parison: Extrusion-Blow Molding
Raw Material: PE
Computerized: Computerized
Certification: CE
Cangzhou Sanqing company is a manufacturing group, it includes two kinds of main products: Stainless steel press fitting, blow molding machines. It also export some other valuable products such as tire valves.

We have two main plants, one is for stainless press fitting, another plant is for blow molding machine.

Stainless steel press fitting includes stainless pipes, stainless press fittings, size range since DN15-DN100. It includes raw material: SUS304 and SUS316L. The stainless steel press fitting already been used for many years in the market and it is under process to develop more international markets. Sanqing is one of the leading manufactures for stainless steel press fittings.

Blow Molding machine is another main products, it including pneumatic type blow molding machine and hydraulic blow molding machine. The machines are able to produce hollow products since 1 ml to 40 Liters. Nowadays, our machines are already full of China and Sanqing brand is a famous brand for this plastic field.

Rotational blow molding machine, or we call it rotational bottle making machine is the star machine and main machine, since it has been developed, it has been improved gradually, now it is a very successful machine and shipped to many foreign countries such as: Russia, Mongolia, Pakistan, India, Malaysia, Kenya, South Africa, Brazil, Mexico, Paraguay, Dominican Republic etc.

So Sanqing brand is keep on growing and hope we could cooperate together to grow together.
