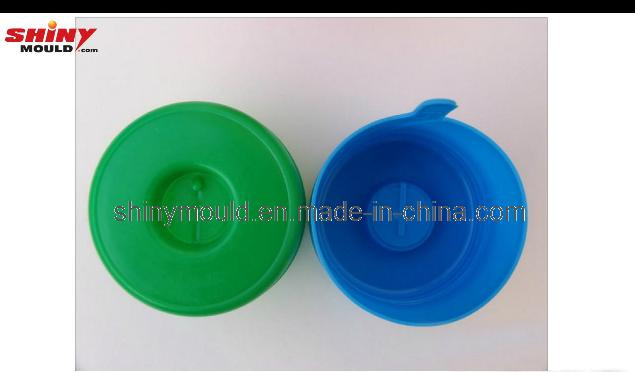

Plastic Cap 5 Gallon Cap Mould

Plastic Cap 5 Gallon Cap Mould
Price: US $ 12500/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: T/T
Shiny mould will offer you the best mouding solution.
Molde de la tapa de bebidas, closure mould advantages:
1. Multi cavity 5 gallon cap mould
2. Stavax S420 stainless steel for cavity & core
3. Mould standard components interchangeable;
4. Special nozzle design for unique feature;
5. High performance hot runner system ensure uniform melt flow & pressure in all cavity.

Hot runner system advantages:
1. Make mould cycle time shorter, high productivity
2. Instead of cold runner system, without any plastic material waste.
3. Increase production coherence, higher quality of production
4. Better outlooking of injection gate
5. Make production low pressure, reduce production distortion
6. With valve gate system in subsection injection, can manufacture different size spare parts
7. Imporve tooling procedure control so as to make injection more precise.

Process of injection mold design
1. Determine the number of the cavity
2. Select parting surface
3. Cavity configuration
4. Determine gating system
5. Determine demoulding way
6. Structural design of cooling system and ejection mechanism
7. Determine structure and fixed mode of female die and core
8. Determine exhaust way
9. Draw the structural sketch of mould
10. Check the measurement of mould and injection molding machine
11. Check the stiffness and strength of mould parts
12. Draw mould assemble drawing
13. Draw mould detail drawing
14. Compile design instruction
15. Review the design
  1. Quote competitive price according customer detail requirement.
  2. Sign agreement
  3. Customer T/T deposit to us to start to design mould
  4. Send mould drawing to customer for confirmation
  5. Mould design confirmed and start to make mould
  6. Make mould trial during tooling time(which we get agreement with customer)
  7. Send mould trial sample to customer forinspection, or customer come to our factory to inspect mould personally
  8. Customer T/T balance to us after mould confirmed
  9. Deliver mould after get balance
Prod Model: STM-PC005
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cap Weight: 9.2g
Shaping Mode: Injection Mould
Installation: Fixed
Process Combination Type: Single-Process Mode
Application: Packaging Moulds
SHINY TOOL & MOULD Co., Ltd is one of the leading injection mould manufacturer, we have rich experience in mould making such as plastic injection molds and tool making, our injection molds include the following items:Cap and accessories moulds, plastic containers mould, flip top cap mold, disc top cap mold, push pull cap molds, cap with straw mould, cosmetic jar molds, eye dropper molds, PET packaging molds, PET preform molds, cap and closure molds, lid handles mould, bottle molds, blowing moulds, airlines cup mould, disposable cutlery mould, multi cavity spoons molds, one way forks molds, disposable knives moulds, garden lounge chair mould, flower pot moulds, pot holders mould, sprayer mould, watering can mould, water container molds, PET jars molds, pharmaceutical container and cap molds, children's accessories molds, industrials boxes molds, agricultural crate moulds, non-recycled case mould, plastic stackable and nesting crates moulds, dustbin mould, garbage container mould, waste can mould, rubbish bin mould, multi-purpose crate mould, bakery crate mould, flat pallet mould, corrugated pallet mould;Single-deck pallet mould, double-deck pallet mould;Logistic pallet mould, warehousing pallet mould, one way pallets moulds, forklift pallet mould, reusable pallet mould, collapsible pallet mould, pallet box mould, pallet crate mould, jumbo bin mould, plastic stacking boxes molds, plastic boxes molds, storage box mould, plastic trolley mould, poultry boxes mould, meat crate molds, fruits crate mould, vegetable crate molds, dairy boxes mold, fishing box moulds, fish crate mould, beverage crate mould, bottle crate mould, pallet moulds, molds of plastic pallets, industrial buckets molds, pail mould, painting bucket mould, plastic chairs molds, armchair mould, armless chair mould, folding stool mould, garden chair molds, injection mold, children's plastic bench mould, plastic chairs molds, molds of children's furniture, household mold line, plastic drawers moulds, hanger molds, sanitary ware mould, bathroom mould, cleaning accessories molds, toilet seat cover mold, flushing cisterns mould, square table molds, table moulds, plastic folding boxes moulds, tray molds, container molds, papermakers baskets molds, plastic container molds, tool boxes molds, waste can moulds, pedal trash molds, cafeteria tray molds, basket molds, mobile multi-purpose cleaning molds, pipe fitting mould, PVC fitting mould, UPVC fitting mould, PPR fitting mould, PE fitting mould, elbow mould, reducing mould, elbow mould, Tee mould, cross mould, P trap mould
