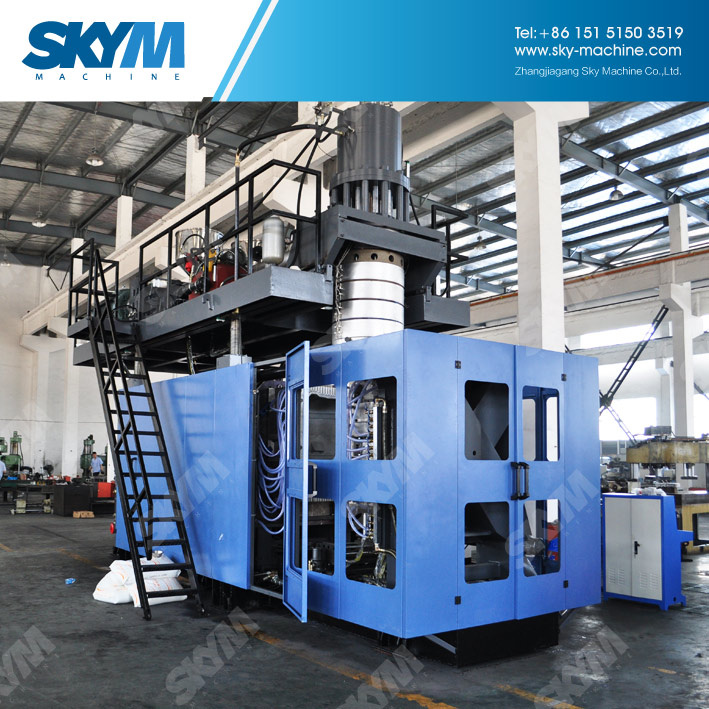

Full Automatic Extrusion Blow Molding Machine for Pet Bottle
1, Model: SKY-120N
2, Maximum product volume: 220L
SKY120N-220L, This single station machine is equipped with accumulator die head, for the
Production of articles for 120liter to 220liters made out of PE, PP and HDPE, especially
Suitable for making L-ring drum, suiting for the packaging of petroleum, chemicals products,
Toys, tech-and auto-parts. This machine is designed for producing high quality, bigger size
And complex parts.
Description:
For containers from 120L up to 220L
Suitable for making L-ring container
With 22L accumulator head
Max clamping force 900KN
Linear rolling motion guider equipped
Easily operation by PLC+touch screen
Imported hydraulic component
Energy saving hydraulic design
Equipped with take out robot
Parison programmer can be adopt
Multi-functional bottom blow mechanism
Servo motor can be equipped
Parameter:
Dry cycle 300 PCS/hr
Screw diameter 120mm
Screw L/D ratio 25
Screw driver power 75/90KW
Screw heat power 30KW
HDPE output 250KG/H
Oil Pump Power 45KW
Accumulator capacity 16L
Clamping force 800KN
Mold stroke 600-1500mm
Template size 1250*1600mm
Max Die diameter 520mm
Machine size 5.8*2.6*4.7m
Machine weight 22T
Zhangjiagang Sky Machine Co., Ltd is one of the world's leading beverage machinery manufacturers. With over ten years of manufacturing experience, we can offer the following production lines and equipment: Bottled Water Production line, Juice production line, Barreled Water Production, Beverage Filling Machines, Water Treatment Equipment, Fruit Juice Beverage Auxiliary Equipment, Carbonated Beverage Auxiliary Equipment, Latter Packaging Equipment, and Bottle Blowing Machines. Our vast line of beverage machinery is available for countless users to meet all your customers' needs.
With our self-sufficient import and export qualifications, we can satisfy all global customers with our high-quality beverage machinery and perfect performances in both our financial standings and practical services. Throughout our years in the industry, our company has earned an admirable reputation across the globe for our advanced technology, superior quality products, and efficient after-sale service. Our beverage machinery, including Beverage Filling Machines and Soft Drink Filling Machines, has been exported to many countries, such as Japan, Russia, Indonesia, and Malaysia etc.
Quality of our beverage machinery is our primary focus. Working by the principle of "Quality First, Customer First", we take the utmost care at every stage of the manufacturing process, thereby assuring our customers a totally hassle-free performance for years of operation. We have gained vast recognition and acclaim from all our valued customers for the beverage machinery and services that clearly exceed the expectations of our clients'.
Excellent materials are very essential to our high quality beverage machinery. Our Beverage Filling Machines, Soft Drink Filling Machine, etc. Are made from top grade SUS304 and SUS316, all electric elements adopted by world-known and trusted brands such as Omron, Siemens, Mitsubishi, and Schneider. All parts are processed by CNC lathe and milling machines, guaranteeing the precision of every product.
We sincerely invite businesses around the world to establish a professional relationship with us based on trust, benefits and the promising possibility for future development. Providing high quality Beverage Filling Machines, Soft Drink Filling Machine, etc. For our customers is our endless pursuit.
