PVC Composite Glazed Tiles Production Line for Roofing
PART 1: INTRODUCTION AND APPLICATION:
Wave plate has an excellent corrosion resistance, weather resistance, easy processing, low cost and many other characteristicsm abd is widely used for roof material of workshops, warehouses.
PART 2: THIS LINE CONSISTS OF:
Extruder model |
SJSZ80/156 + SJ65/30 |
Capacity |
350kg/h+50kg/h |
Sheet specifications |
Width: 720/880/1040mm
Wave pitch:160mm
Wave length:220mm
Wave height:30mm
Thickness:1-3mm |
Emboss rollers |
1400mm*Φ300mm |
T-die head |
JC-Times brand |
Corrugation forming machine max haul off power |
20KN |
Haul off speed |
0.3-5m/min |
Cutting machine |
Pneumatic saw cutting |
Stacker |
6m |
Ridge tiles forming machine |
With end cover, slope ridge for step roof, T ridge for step roof, top ridge for step roof |
Other accessory machines |
High speed mixer, plastic crusher, plastic pulverizer etc |
PART 3: SHEET SPECIFICATION:
1. Width: 880,950mm, 1040mm
2. Thickness: 1-4mm
3. Can be co-exrtusion ABA, AB, ABC
4. ASA or PMMA co-extrusion
PART 4: PRODCUTION FLOWS:
High speed mixer--conical twin screw extruder--co-extruder--co-extrusion die head--embossing and cooling rollers--forming machine--saw cutting machine--stacker--pneumatic pressing machine for ridge tiles moulds

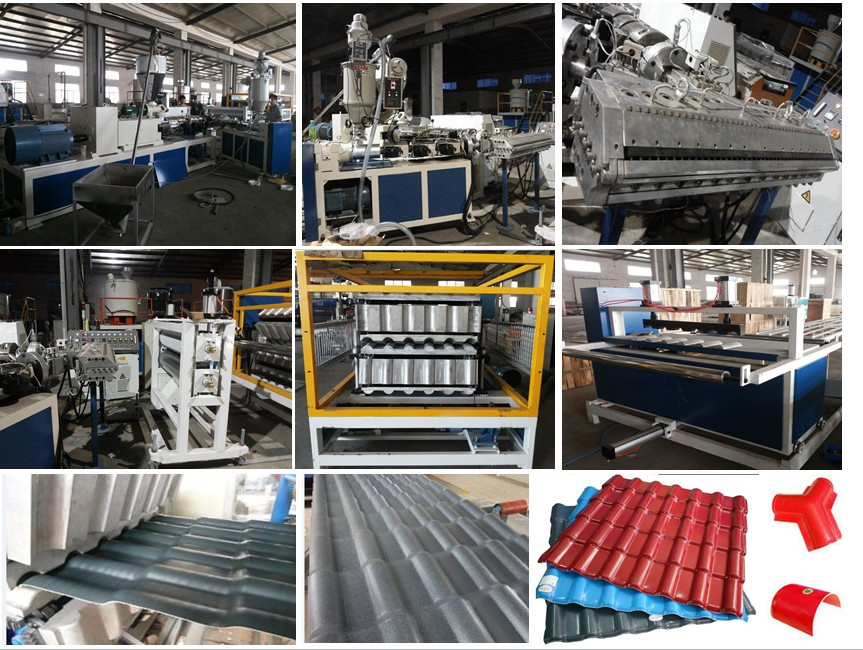

PART 5: Testing Photo in Workshop:
PART 6: APPLICATION:
Qingdao Leader Machinery Co., Ltd is an experienced and professional manufacturer of plastic extruder and extrusion lines for years. We can produce various equipments, including plastic pipe extrusion lines, plastic profile extrusion lines, plastic sheet/plate extrusion lines and also some recycling and pelletizing machines etc. According to different requirement s of each customer, our engineers will provide most professional mechanical design and manufacturing, and the complete processing technology to meet their special application requirements.
Since foundation, we have been dedicated to study and research new products, new processing technology to satisfy the updating requirements of the world, and also we continuously digest and learn from the world advanced science technology and leading process. We are always standing firm ahead domestically in the plastic-extruder field as the pioneering representative. With years of experience in design and fabrication, we newly developed LM series extrusion lines, which realized the high efficiency extrusion idea "high precision control, high efficiency production, high quality production".
Through ISO9001-2008 quality certification, CE certification, SGS certification and GOST certification for Commonwealth of Independent States, strict following the standards of modern enterprise, the overall strengthening and the effective management of production, procurement, technology, and after sale service. We win the market by high quality products and services. At present, products have been exported to the US, Korea, Russia, Ukraine, Kazakhstan, Hungary, UAE, Turkey, Iran, Saudi Arabia, South Africa, Libya, Algeria, India, Nepal, Bangladesh, Mexico, Argentina, Chile and other countries and regions, praised by customers.
