Plastic Extrusion Blow Molding Blowing Moulding Machine for 120L160L200L250L Big Barrel
| Price: |
US $ 150000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal,Western Union |

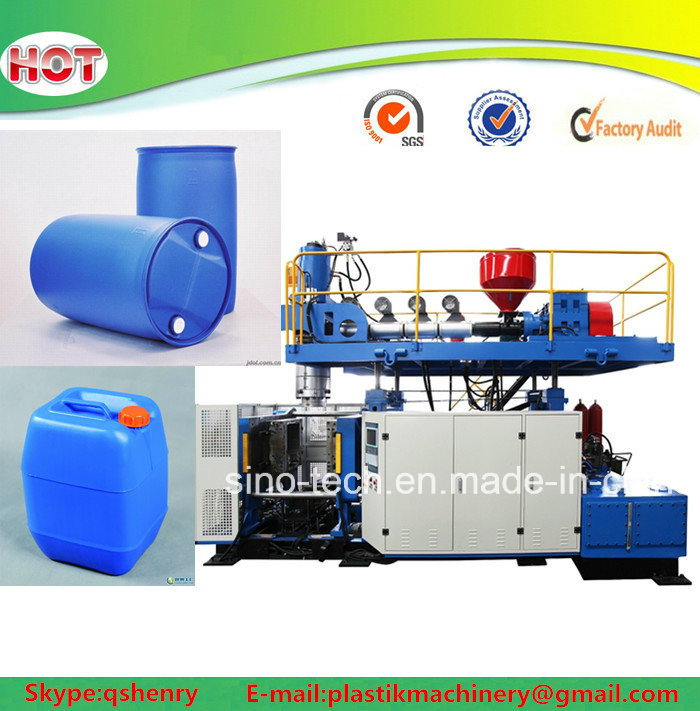

Plastic Extrusion Blow Moulding Machine for 120L-160L-200L-250L Big Barrel (TDY120)
Good quality and best price can make your needs
TCY120 series, this is a blow molding machine with single accumulator die-head.
Voltage: 380V/50Hz
| Item | Code Item | Standard Code | Manual | Note |
Extruder
(Main extruder)
| Max. Capacity | 250L |
|
|
| Main screw | φ 120mm | High efficiency of mixing |
|
| Screw L/D | 32: 1 |
|
|
| Screw material |
| 38CrMoALA |
|
| Max. Extruder consumption | 350KG/Hr | Take EHMWDPE for example, change with material density |
|
| Twisting transition method | Electrical machinery, Gear box, DC Motor | Hard gear with DC motor |
|
| Driving motor | 132KW |
|
|
| Screw rotate speed | 5---60r/min |
|
|
| Ahead/back adjusting | Yes |
|
|
| Up/down adjusting | Yes |
|
|
| Temperature control zone | 5 | Japan MTSUBISHI |
|
| Heating power | 5φ 10KW |
|
|
| Cooling for blower | 5 |
|
|
| Cooling function | Yes | Cooling water |
|
| Clamping unit (Mold opening/closing unit) | Structure |
| With patented two-bar timing clamping structure in high speed and high force, to achieve quality products. |
|
| Clamping directions | Ball rail | For high precise location for longer service life. |
|
| Clamping speed | 250mm/sce; 15m/min |
|
|
| Platen dimension | 1320*1650 mm | (W*H) |
|
| Max. Mold dimension | 1100*1720 mm | (W*H) |
|
| Mold opening stroke | 1000 mm |
|
|
| Platen distance | 800~1800 mm | Min. ~Max. |
|
| Clamping force | 770 KN |
|
|
| Mould thickness scope | 810~1000 mm |
|
|
| Fixing pattern of mold | Mold press platen |
|
|
| Mold opening/closing stroke control | Inducing Switch+moving | Discriminate mold opening/ closing end, mold opening/ closing slow speed, |
|
| Prod Model: |
TDB-250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Production Name: |
Plastic Extrusion Blow Moulding Machine |
| Usage: |
Blow Big Barrels |
| Type: |
Extrusion Blow Molding Machine |
| Making Method Of Parison: |
Extrusion-Blow Molding |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Raw Material: |
PP,PE,HDPE... |
| Certification: |
CE,SGS,ISO9001 |
