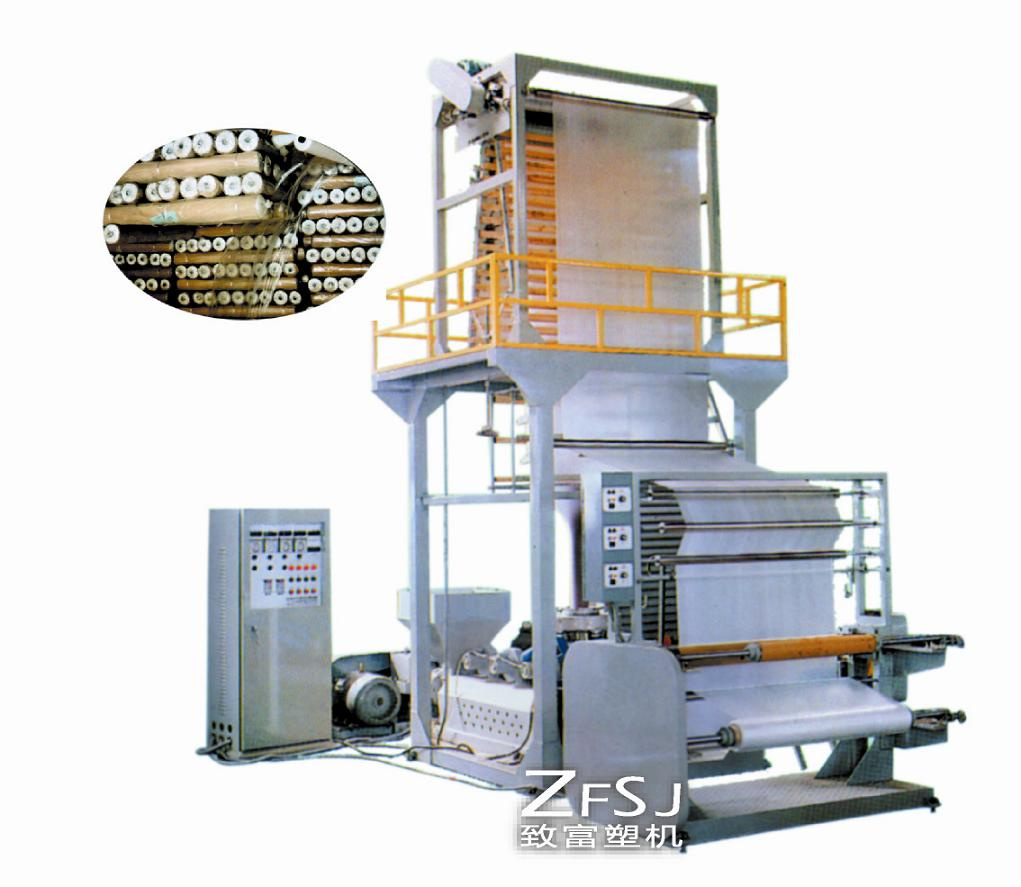

The Plastic Extrusion And Blow Mould Film Machine is a production line on the basis of many years' practical experience and study. It can use not only HDPE\LDPE to blow film, mulch film, greenhouse film, but also regenerative plastics to blow film, mulch film, greenhouse film. The set is mainly made of main machine, tractor, roll-up machine and electrical controlling box
Main function: Used to blow HDPE\LDPE plastic film. It is widely used in the packing of the industry and food, and agricultural covering (ground film, greenhouse film).
Advantage:
The barrel and screw of the extruder adopt the high-grade alloy steel that processed precisely and goes through nitrogen treatment, so they are most outstandingly grind-resistant, erosion-resistant as well as exact and reliable. It also possesses the characteristics of automatic constant temperature controlling system, multi point control, highly controlling accuracy. Auxiliary machine installs platform balustrade worktable, so it can be operated easily and safely. Roll-up machine adopts multi-roller friction wind up structure.
OEM service: We supply OEM service if you want to custom equipment or main parts.
Notice: As for parameter, we can make a suitable change according to actual needs for design. If dates on the website don't correspond to actual product, you should refer to actual product.
|
No. |
Item |
technical parameter |
|
1 |
Model |
SJ65× 30-1100 |
SJ70× 30-1600 |
SJ90× 30-2200 |
SJ150× 30-3500 |
|
2 |
Max. extruding capacity |
80kg/h |
100kg/h |
160kg/h |
400kg/h |
|
3 |
Main driving power |
22kw |
37kw |
55kw |
132kw |
|
4 |
Heating power |
20kw |
25kw |
40kw |
65kw |
|
5 |
Thickness |
0.005~0.1mm |
0.005~0.1mm |
0.005~0.12mm |
0.005~0.12mm |
|
6 |
Folded diameter |
1100mm |
1600mm |
2200mm |
3500mm |
|
7 |
Upper tractor driving power |
0.75kw |
0.75kw |
1.5kw |
2.2kw |
|
8 |
Height of upper tractor |
4500mm |
6500mm |
8000mm |
18000mm |
|
9 |
Winder driving power |
1.5kw× 2 |
1.5kw× 2 |
2.2kw× 2 |
3kw× 2 |
|
10 |
Winding speed |
10~70m/min |
10~60m/min |
10~60m/min |
5~30m/min |
|
11 |
Installation power |
50kw |
70kw |
110kw |
220kw |
|
12 |
Overall dimension(L× W× H) |
8.2m× 2.4m× 4.8m |
8.2m× 3m× 6.8m |
11.5m× 4.1m× 8.5m |
14m× 5.6m× 19m |
|
13 |
Weight |
2600kg |
3500kg |
6000kg |
12000kg |
