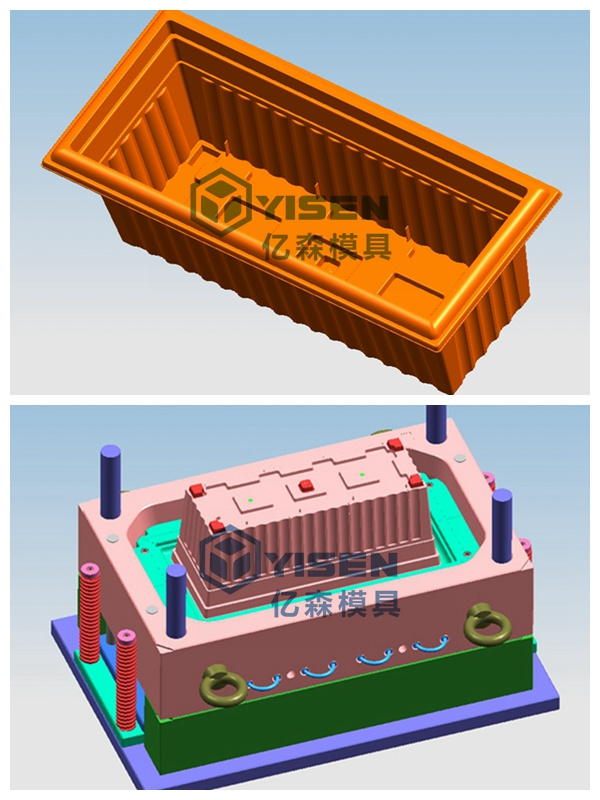

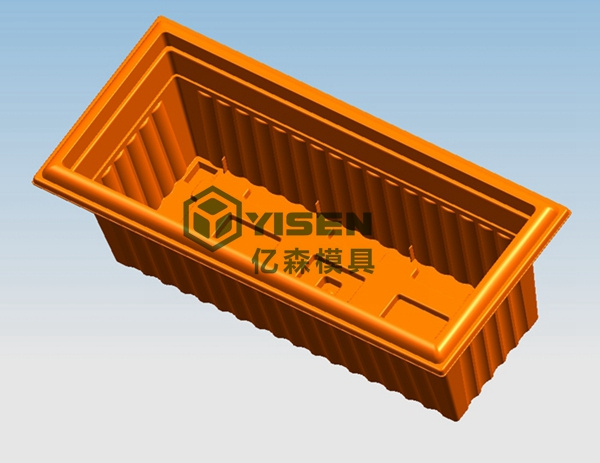

Plastic Flower Pot Injection Mould
| Price: |
US $ 5000-12000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Flower pots applied with HDPE material, sometimes we apply with PP material.
For plastic pot mould, the thickness of each pot and tooling precision of the plastic flower pot mould should be high, if the pot mould is off centered, the difference of the thickness will be big and will with a low
strength.
YiSen Mould Co.,Ltd equipped with high precision tooling equipments for manufacturing plastic flower pot mould, we control strictly for every plastic mould.
YiSen Mould has manufactured plastic flower pot mould from 1-cavity to 16-cavity fo different sizes pots.
Steel material for cavity & core, P20 / 718H / DIN1.2311 / DIN1.2738;
Mould base: LKM or other material according to customers' requirements
Delivery time: 40-55 days depends on flower pot mould dimension and structure
If you have new projects, welcome to enquiry from us, and welcome your down vsiting to us for further discussions.
Contact person: Lilianne| Product Name | Plastic flower pot injection mould |
| Product material | HDPE, PP |
| Core& Cavity Steel | P20,718H,DIN1.2311,DIN1.2738 |
| Steel hardness: | HRC29-34 |
| Mould Standard | DME |
| Cavity Number | 1-cavity to 16-cavity |
| Injection System | hot runner / hot sprue |
| Ejector System | Ejector Pin / stripper plate |
| Cycle Time | 35 second/shot |
| Tooling lead time | 40-50 days |
| Mould life | 200, 000 times |
| Quality assurance | ISO9001 |
| Our Advantage | 1. Reasonable price |
| 2. Good product & mould design |
| 3. Good mould tooling and good mould steel |
| 4. strict quality control |
| 5. On time delivery |
| 6. Good After-sales services |
| Prod Model: |
flower pot model YS-05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hot Runner Brand: |
Yudo |
| Mould Base: |
P20 |
| Cavity & Core Material: |
718h |
| Shaping Mode: |
Injection Mould |
| Installation: |
Fixed |
| Process Combination Type: |
Single-Process Mode |
| Plastic Material: |
HDPE, PP |
| Application: |
Gardeing & Planting |
Yisen Mould Profile:
Yisen Mold is a privately-owned enterprise specializing in manufacturing plastic injection moulds. We have many advanced professionals who can make 3D designing and technical drawings with CAD/CAM/CAE according to our customers' requirements.
Yisen Equipment:
There is a wide variety of sophisticated equipment imported from abroad such as 3-coordinate measurer, NC imitating milling machine, large precision EDM, high-speed milling machines, injection machine, spot machine, wiring machine and so on.
Scope of mold make services:
Injection molds for daily used goods, Injection molds for industrial goods, Injection molds for baby goods.
The former includes plastic furniture series, tableware sets, Sanitary ware series, warm-keeping boxes, and laundry boxes.
The latter is composed of shower parts, piping, stationery, car safety bars, meter panels, door plates, steering wheel and mudguard etc.
Injection molds for baby goods include baby chair.
Our Manager: "USERS THE FIRST, CUSTOMER THE PARAMOUNTCY", once the contract is signed, we will fulfill the terms and conditions and strengthen after-sale service and release all the worries from our customers.
Our after-Service: Is your full-service partner of small to large products utilizing up-front engineering support, superior customer services, and state of the art process control techniques. Whole solution from product design, mold design, mold making, rapid prototype, precise injection molding to secondary processing; From idea to product, Hongsen PM is a good answer in China.
Our Mission:
Our mission is to provide the mostservices and products that meet or exceed our customer needs and expectation, in terms of high quality, consistent reliability, on time delivery and reasonable price.
Our Capabilities:
Engineering / Technical, Product Design, Mold Design, Reverse Engineering, Mold Flow Analysis, Project Management.
Mold Build:
Molds up to 1.5 meter and up to 15 tons weight. Hot-runner Capability. Gas-assisted Capability. Double-colored Capability.
Injection Molding:
80 Through 800 Ton Injection Molding Presses. Robotic and Automated Pick and Place. Gas Counter Pressure.
Secondary Operations:
CNC Machining, Oil spraying, Silkscreen printing, Pad printing, Hot stamping, Ultrasonic welding, Bronzing, Solvent Bonding.
