Injection Mould
Zhilian mould has rich experience in manufacturing different kinds of injection moulds, such as different liters of thin-wall box injection mould, thin-wall bucket mould, thin-wall food box mould, thin wall storage bin mould, and all kind of thin-wall transparent bins mould.
The features for Zhilian mould in thin-wall mould filed:
1. Provide all kinds of thin-wall box injection mould, thin-wall bucket mould, thin-wall food box mould and thin-wall icecream box mould;
2. The wall thickness can be 0.35mm for thin-wall parts by using very good cooling system with high-efficient production. The cycle time can be 4 seconds.
3. High-efficienct operation mode: Professional injection mould project manager follow the whole progress for each mould to make sure the delivery date;
4. The mould can be single or multi-cavity.
After-sales Services:
Provide spare parts free of charge within one year.
Provide all-round technical solutions to any problems occurred in customers' mould operation lifelong maintains.

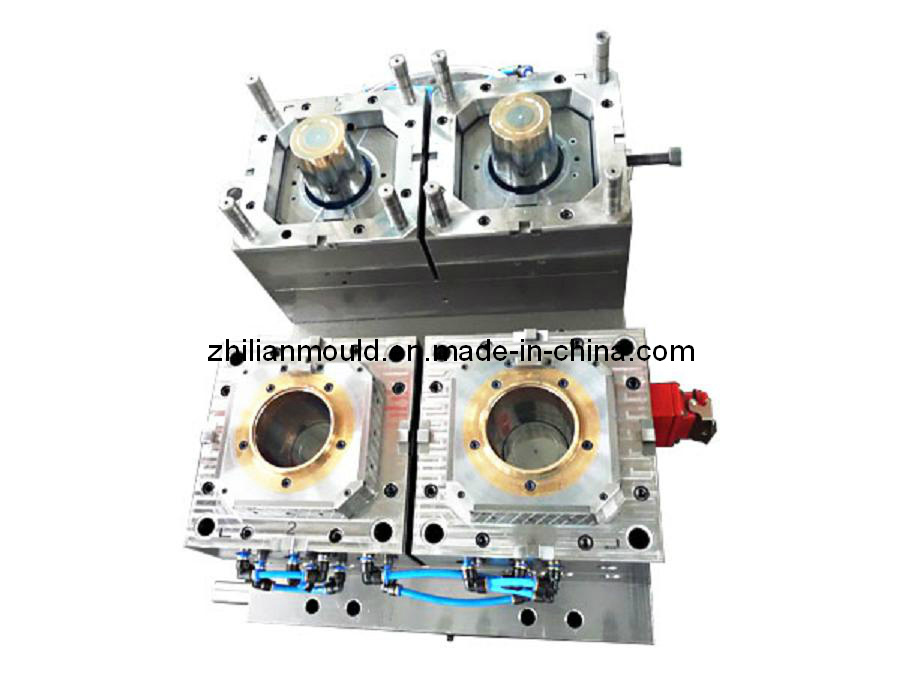

Thin Wall Injection Bucket Mould / Mold development process
Receive RFQ information;
Part injection mould analysis and provide quotation;
Official discussion and sign the contract;
Project plan;
Meeting about new project;
Tasks assigned;
Review, discussion and injection mould project's plan;
Mould structure design;
Confirmed by clients;
Mould 3D design;
Component 2D design;
Order mould base and arrange manufacturing;
Purchasing and Check the components;
Mould assembly;
Testing;
Check the samples;
Send the samples to clients and get approval;
Packed the injection mould and arrange delivery;
Customs clearance;
Received by clients;
Collect the feedback from clients;
|
|
Thin Wall Injection Bucket Mould/Mold Checklist |
|
NO. |
check item |
|
1 |
clean whole \no scratch |
|
2 |
mold inside clean ,no rust mark ,no welding |
|
3 |
part line flat ,no press mark ,no damage |
|
4 |
cavity/core exhaust well |
|
5 |
cavity side /core side (inside\mold frame )goog water running ,no leaking |
|
6 |
cavity /core side(inside\mold frame ),dry the water tunnel for no rust |
|
7 |
core dide \slide \material of ejection top |
|
8 |
The sliders on cavity/core side move smoothly and in order |
|
9 |
The mark on sliders and inserts are clear |
|
10 |
normal hot runner system |
|
11 |
Correct fitting on angle ejectors and located blocks ect. |
|
12 |
ejection out smoothful ,return back right now |
|
13 |
good lift \put stable |
|
14 |
guide stable \no special sound , scratched |
|
15 |
open and close smoothly\right order ,liquid pression \all operation is ok |
|
16 |
guide bushing running well ,surface no scratch mark |
|
17 |
mold plate ok ,right contents |
|
18 |
all the parts specification right and right materials |
ZHILIAN Mould Company located at well-known mould hometown Huangyan, where is with convenient transportation and near to Ningbo port.We are delicated in mould R&D, manufacturing and production.
With rich experience in technics, complete manufacturing equipments and years of experience for the mould design and manufacture, we can make all kind of plastic moulds to meet our customers' requirements, such as turnover box, pallet, thin-wall products, fishing tackle parts, plastic bucket and commodity moulds, ect., especially on industrial products and thin-wall parts, we have rich and special technology of design and manufacturing, and have long-term relationship with many companies on these field.
