| Price: | US $ 6000/Set |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Set |
| Pay Type: | T/T |
We can make all kinds of mould as customer's require, the quotation can be provided based on customer's drawing or sample.Our mould are both excellent in quality and reasonable in price.
Following is the basic informations for reference:
1.We are manufacturer,so we have competitive price.
2.We exported mould to more than 20 countrys.
3.We made near 500 sets moulds per year.
We can also supply:Mineral water cap mould, beverage cap mould, 5gallon cap mould, theft proof cap mould, shampoo cap mould, different kinds of oil cap mould, sport cap mould, cosmetics cap mould, wine cap mould..
1,SERVICE
1), More than 10 years experience in plastic Mould..
2), Devote to professional packaging solutions for beverage,daily chemail, medicine..

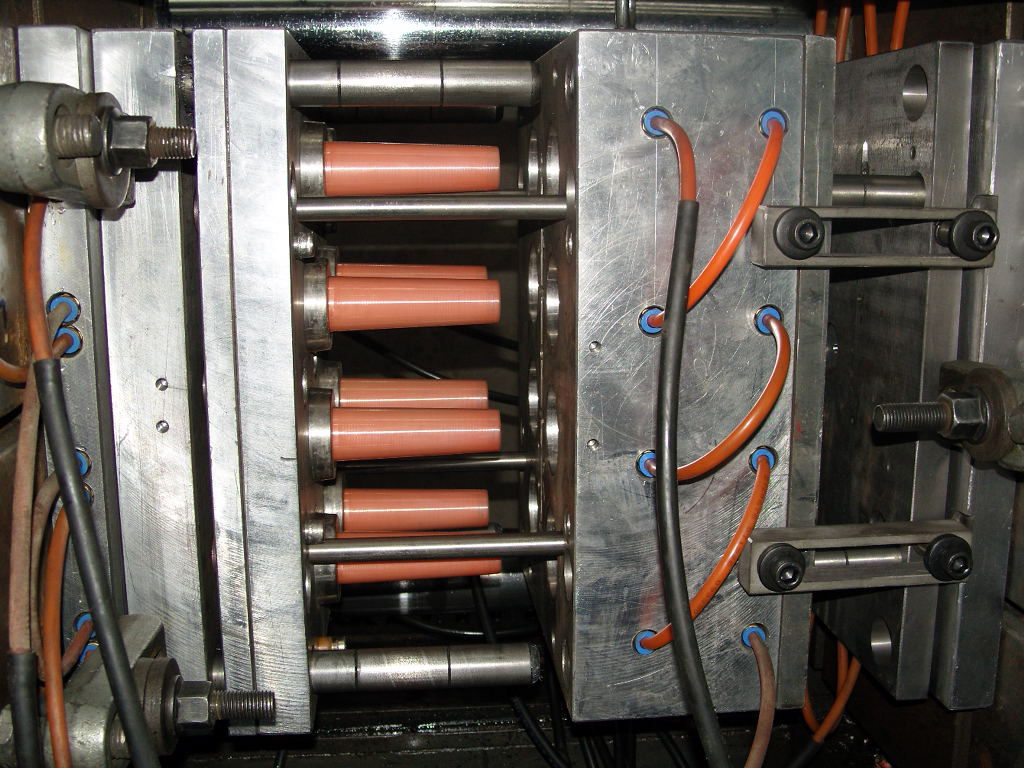

2,MOULD FEATURES
1), Core,Cavity and Neck can be interchanged.
2), Excellent hot runner system and cooling system.
3), High quality materials and proven mold design ensure long life time
4), Pneumatic Pin Valve strcuture without manual cut tail,reduce the labor force.
5), Double self-lock structure ensures mold thickness tolerance less than 0.1mm
3,HOT RUNNER SYSTEM
1), Less energy cost and pressure lost.
2), Use imported heaters,like Germany HOTSET and Italy ROTFIL
3), Cavity-to-cavity control system ensure nozzle temperature fluctuates within 1oC
4), Hot Runner Balance design ensures evenly force,uniform heating and identical preforms.
4,COOLING SYSTEM
1), Spiral Water Cooling Way on cavity enhances cooling performance.
2), Cooling System on neck and move neck plates enhance cooling performance.
3), Precise Distributary Plate distributes cooling water into cavity evenly,quicken preform cooling.
Equipment list
1.High speed milling center
2.Milling center
3.Numerical controlled EMD machine
4.High speed EMD drilling machine
5.Mirror EMD machine
6.Quick wire cutting machine
7.Slow wire cutting machine
8.COMERO
9.Large grinding machine
10.Precise grinding machine
If you are interested in any item of our mold ,feel free to contact us .We'll be gald to be of help.
We sincerely hope to establish good and long-term cooperation with customers all over the world.
Process:
1.Quote competitive price according to customer's detailed requirement.
2.Sign agreement.
3.Customer T/T deposit to us to start to design mould.
4.Send mould drawing to customer for confirmation.
5.Mould design confirmed and start to make mould.
6.Make mould trial during tooling time ( Which we get agreement with customer).
7.Send mould trial sample to customer for inspection .Or customer come to our factory to inspect mould personally.
8.Customer T/T balance to us after mould confirmed.
9.Deliver mould after get balance.
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Name: | Plastic Injection Cone Mould |
| Mould Material: | 45#, P20, 718, 2738, Nak80, S136 etc. |
| Mould Base: | Lkm, Hasco, Dme |
| No,Cavity: | 1-48 |
| Runner: | Cold/Hot |
| Plastic Material: | PP, PC, PS, PE, PVC, ABS, HDPE, LDPE... |
| Mould Life: | Above300, 000 Times |
| Equipment: | CNC, Nc EDM, Wire-Cutting, Large-Scale... |
| Design Software: | Ug, PRO-E, Solidworks, CAD Et.. |
| Shaping Mode: | Injection Mould |
| Application: | Household Appliances |
| Installation: | Fixed |
| Process Combination Type: | Progressive Die |
