Plastic Injection Mould for PVC U-Shape Elbow

Plastic Injection Mould for PVC U-Shape Elbow
Price: US $ 7500-9500/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Plastic Injection Moulding for PVC U-Shape Elbow Mould

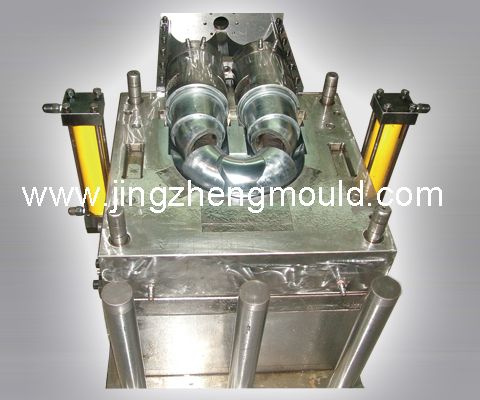

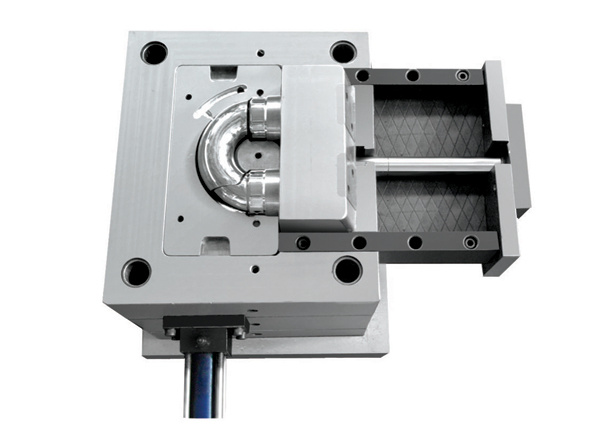

U- elbow mould with one cavity

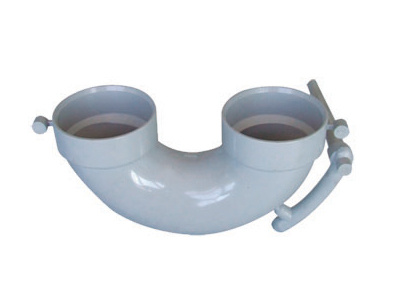

Finished mould and samples

NamePlastic Injection Moulding for PVC U-Shape Elbow Mould
Plastic materialUPVC
Steel of Cavity & CoreDIN 1.2316
Steel of MouldbaseS50C. LkM standard^ etc
Nos of CavityCustomized
Hardness of Cavity & Core48-52HRC
Hardness of Wear Parts55-60HRC
Core pulling systemMotor /oil cylinder/ stripping plate, angel pin^ etc
Mould AccessoriesDME/HASCO Standard ^
Cooling systemIn core baffle cooling and in cavity plate chain drilling type cooling
Surface finishDiamond polish,
Molding   life1.200, 000shots
RunnerHot Runner
Delivery time35-75work days
Packingwooden case
PaymentT/T L/C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 75mm
Shaping Mode: Injection Mould
Application: Household Appliances
Installation: Fixed
Huangyan Jingzheng mould factory was established in 1998, located in Taizhou, Zhejiang, China. We specialized in pipefitting mould. We have international advanced equipments, like CNC milling machine, NC wire cutting, NC-EDM, We have incorporated CAD/CAM/CAE into the manufacturing process.
With efficient mould designers, highly skilled technicians and trained quality control personnel, Jingzheng is able to provide mould with high quality.
We have experience to produce moulds as followings:
PVC/PP Collapsible Pipefitting Mould(We have patent for collapsible design)
PVC SWR Pipefitting Mould
PVC Pressure Pipefitting Mould(SCH40/SCH80/ASTM/DIN standard)
PVC Thread Pipefitting Mould (BS standard)
PVC Gutter Fitting Mould
PVC Instalating Electrical Drive Pipefitting Mould
PVC/PPR Ball Valve Mould
PPR Cool/Hot Water Feeding Pipefitting Mould
PP/PE Compression Fitting Mould
PP/PE Corrugated Pipefitting Mould
PE Electrofusion Fitting Mould
PPSU Pipefitting Mould
PSU Pipefitting Mould
POM Pipefitting Mould
ABS Pipefitting Mould
PP Flush Toilet Mould
Irrigation System Fitting Mould
As the global economy is developing and China joined WTO, Jingzheng not only make mould for famous companies inside China, but also exported to Middle East, South East Asia, Africa, etc.
With high quality steel, strict heat treatment, reliable mould layout and perfect handcraft, Jingzheng is able to provide efficient mould with high quality, with a lifetime more than 800, 000 shots. We are renowned for good quality, reasonable price and good after sales service. Good quality and Good service has always been our motto. Honesty comes first and customer is god has always been our pursuit and business philosophy. Innovation and Advancement has always been our guiding star in this changing world.
