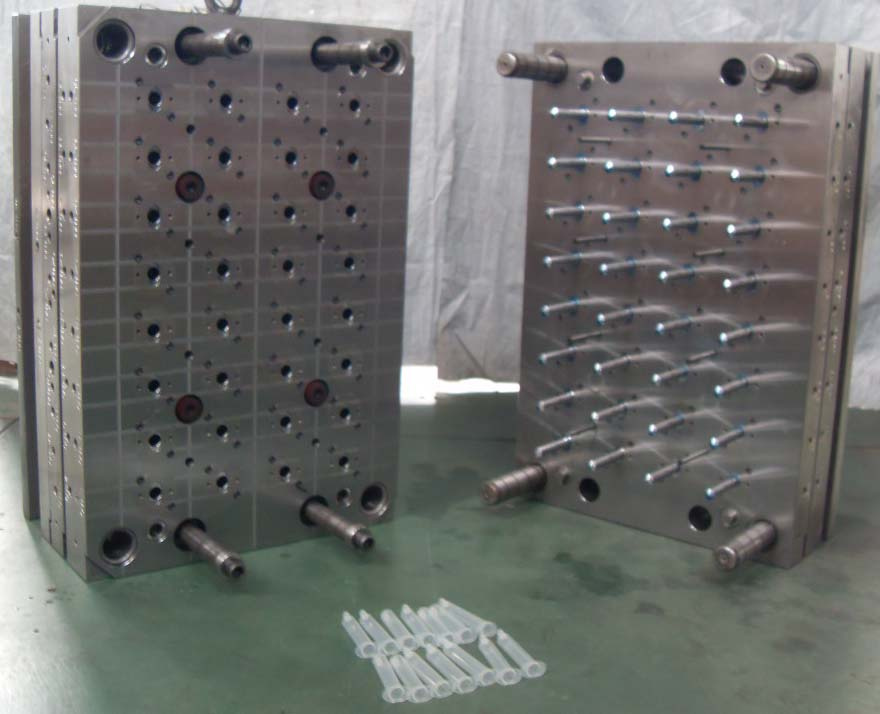

Medical syringe
Mould Size: L750 x W500 x H475 MM
Mould Weight: 1244KGS
Mould Material: LKM1730-mould base
Chinese P20-cavity housing plate /core housing plate/stripper plate
LKM2083-cavity/core/insert/slider
Cavity No.: 32
Hot Runners: 8 tips COMAT hot runner
Gate Type: Pinpoint gate
Sliders: 32
Ejection Type: Stripper plate
Surface Finish: Cores-grade 6 diamond Polish +0.005mm chrome plating; Cavities, sliders-grade 6 diamond Polish
Treatment: Cavity, Cores-hardening+tempering to 48-52HRC; Sliders-nitriding to 660-700HV
NINGHAI ZHICHENG MOULD&PLASTIC Co., Ltd., as a Medium-Scale and professional factory in producing plastic injection moulds and mouldings in Ningbo Zhejiang which is the biggest area in producing plastic and moulds in China, has founded for more than 20 years. After year-after-year's rapid development and good reputation, we are now the TOP SUPPLIER in producing plastic injection mould, die casting mould, compression mould and rubber mould in China.
We produce every mould in International Standards and High Precisions. We adopt modern management pattern, all-sided quality management and service systems to assure our mould's quality, efficiency and life. And we has been authorized by ISO 9001: 2000 quality management certification.
We choose LKM/QNM for main mould bases, LKM/ASSAB for main mould materials, LKM /PUNCH/JINHONG/SMC/JUFAN/ANGST+PFISTER for all standard parts. We have CAD/CAM/CAE system for mould design, manufacture, test, and CNC processing center, EDM machine, Wire-Cut machine, high precision engraving machine etc.
We have 50 high-skilled mould and product designers, rich-experiences mould makers, professional mould inspectors, all of them have high-level skill certificates and high-efficient manufacturing capabilities.
We had exported our moulds and mouldings to Italy, UK, USA, Canada, Germany, Thailand, Russia, Iran and so on. Our customers are UPG (United Plastic Group), Nuaire Group and Knight and so on. Our moulds and mouldings are expanded to Automobile, Household Appliance, Industrial area, Fire&security, IT, Machinery etc.
We have perfect and efficient product design abilities to help customers for develop new products and moulds. Our injection systems also help customers to produce their products in order to save the time for development of the new products and catch the chances in the market.
