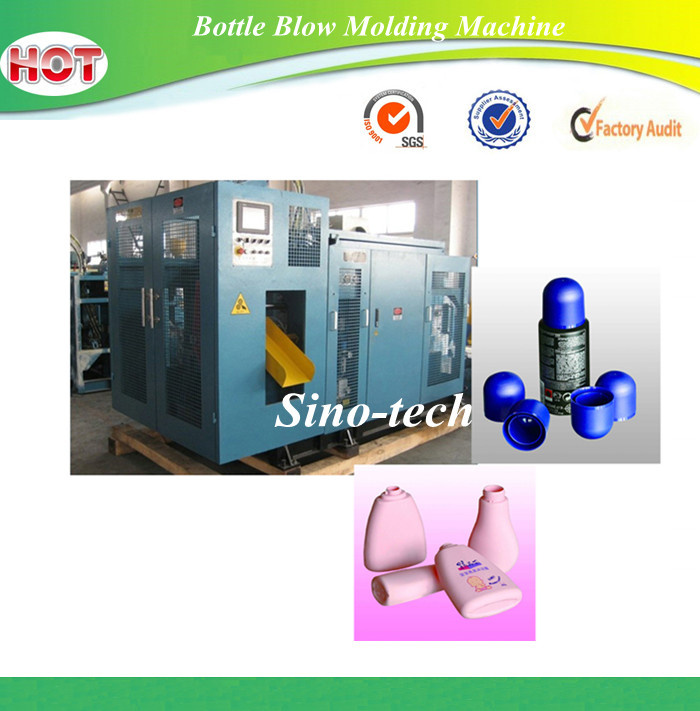

Plastic ketchup bottle blow molding machine
Good quality and best price can make your needs
TCY60 series: TCY601/TCY602/ TCY603/ TCY604
This is a single station series
Y means two-way guide rail clamping structure
1, 2, 3, 4 means number of die-head
Voltage: 380V/50Hz
| Specifications |
| TCY60series |
| Material |
| HDPE,LDPE,PP^. |
| Max container volume | L | 5 |
| Number of die head | set | 1 |
| Output(dry Cycle) | pc/hr | 300 |
| Dimension(L*W*H) | M | 3.5*2.2*2.8 |
| Weight | ton | 5.5 |
| Clamping Unit |
|
|
| Clamping force | KN | 70 |
| Platen opening stroke | mm | 188-538 |
| Platen size | mm | 338*450 |
| Max mould size(W*H) | mm | 450*500 |
| Mould thickness | mm | 190-300 |
| Power |
|
|
| Max drive | KW | 20.5 |
| Total power | KW | 33.9 |
| Fan power for screw | KW | 0.3 |
| Air pressure | Mpa | 0.7 |
| Air consumption | m³/min | 0.6 |
| Average energy consumption | KW | 12.5 |
| Extruder system |
|
|
| Screw diameter | mm | 60 |
| Screw L/D ratio | L/D | 25 |
| Plasticizing capacity | Kg/hr | 60 |
| Number of heating zone | zone | 3 |
| Extruder heating power | KW | 8.8 |
| Extruder driving power | KW | 15 |
| Die head |
|
|
| Number of heating zone | zone | 3....5 |
| Power of die heating | KW | 4.6 |
| Max die-pin diameter | mm | 20--145 |
Zhangjiagang Sino-tech Machinery Co., Ltd. is a group company located in the beautiful seaport city of Zhangjiagang, which is near to Shanghai. We devote ourselves to the development, research and production of plastic machine, beverage equipments filling and packing industry and automatic blow molding machine with over 20 years'experience.
Now our equipments have been exported to USA, Canada, Mexico, Colombia, Brazil, Argentina, UK, France, Germany, Belgium, Russia, Saudi Arabia, UAE, Yemen, Iran, Oman, Syria, Jordan, Israel, Egypt, Japan, Philippines, Myanmar, and India etc...
For plastic machine: , Our main products include as follow
Big-mouth PVC pipe excluding production line
PE big-mouth for gas, water supply excluding production line
Plastic sheet or panel production lin
Plastic profile production line
Plastic granulating production line
Plastic recycling machine
PP-R pipe production line
Plastics extruder
High speed mixer, various plastic auxiliary machines
For beverage machine, our Main products include as follow
The capacity of 2000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 2000-- 40000 BPH for hot filling, MID-temp filling, aseptic cold filling lines.
The capacity of 2000 -- 36000 BPH for carbonated beverage producing line.
The capacity of 300 -- 1200BBH 3 gallon, 5 gallon barrel filling line
The capacity of 1000 -- 12000BBH glass bottle beer filling line
The capacity of 2000 -- 25000BH ice pop, ice lolly filling production line
Various kinds of linear and rotary engine oil and edible oil filling line
All kinds of water treatment equipment.
PET perform injection and blowing-stretching machine.
Extrusion blow molding machine
Turn-key projects
Flat and tube UHT device, and CIP system.
SINO-TECH purpose is "keep developing to meet worldwide clients' demands. "
Welcome to visit our company. Thank you!
