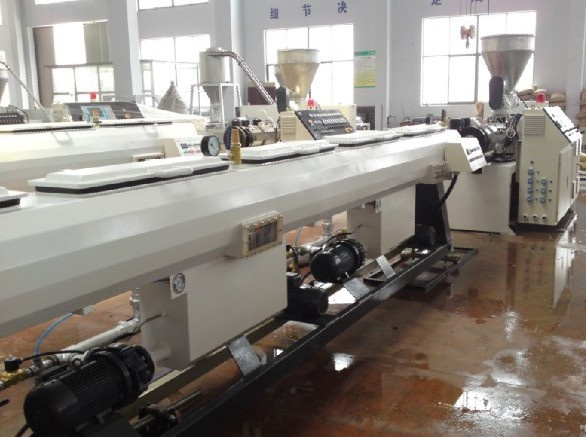

This PVC pipe extrusion line mainly consists of
Conical twin screw extruder
PVC pipe molds
Vacuum calibrating water tank
Water spraying cooling tank
Haul-off machine
Cutting machine
Overturning bracket.
Conical twin-screw extruder: It equipped with forced fixed-quantity material feeding system, automatic temperature control system, vacuum exhaust system and automatic speed control system.
PVC extruding molds: Material is high quality 40Cr. Molds surface is dealt with polishing and chrome plating. It adopts the structure of multiple head spiral. The melt has low pressure. Extruding at high quantity, the die head still maintain low temperature.
Vacuum calibrating water tank: The material of body is high hardness and good quality stainless steel board. It is high-pressure resistance, corrosion-resistance and two-stage for large diameter pipe.
Water spray cooling tank: The body is made of stainless steel and the shade is transparent soft PVC curtain. Stainless steel float adjusts water level and electricity controls water temperature.
Haul-off machine: It adopts frequency conversion approach.
Cutting machine: It is planetary cutting for large diameter. The blade takes rotation and cutting part and inserting blade part take revolution. It has angle cutting structure, pneumatic aluminum half clamping and cleaning device.
Control system: We can offer Siemens PLC controlling system which is intelligent controlling system. Also we can offer ordinary controlling system which use Siemens electrical parts, Omron temperature controller. Operation is simple.
Type |
Diameter |
Extruder |
Speed (m/min) |
Max. output (kg/h) |
Installation power (kw) |
Size |
SJ-40 |
Ø20-Ø40mm |
SJSZ-51/105 |
1-12 |
150 |
65 |
32x1.8x2m |
SJ-160 |
Ø50-Ø160mm |
SJSZ-65/132 |
0.5-5 |
300 |
100 |
36x2x2m |
SJ-315 |
Ø110-Ø315mm |
SJSZ-80/156 |
1-3.6 |
420 |
145 |
38x2x2m |
SJ-400 |
Ø200-Ø400mm |
SJSZ-80/156 |
0.2-2 |
420 |
210 |
42x2.5x2.5m |
SJ-630 |
Ø315-Ø630mm |
SJSZ-92/188 |
0.08-0.8 |
750 |
245 |
48x2.5x2.5m |
